Description

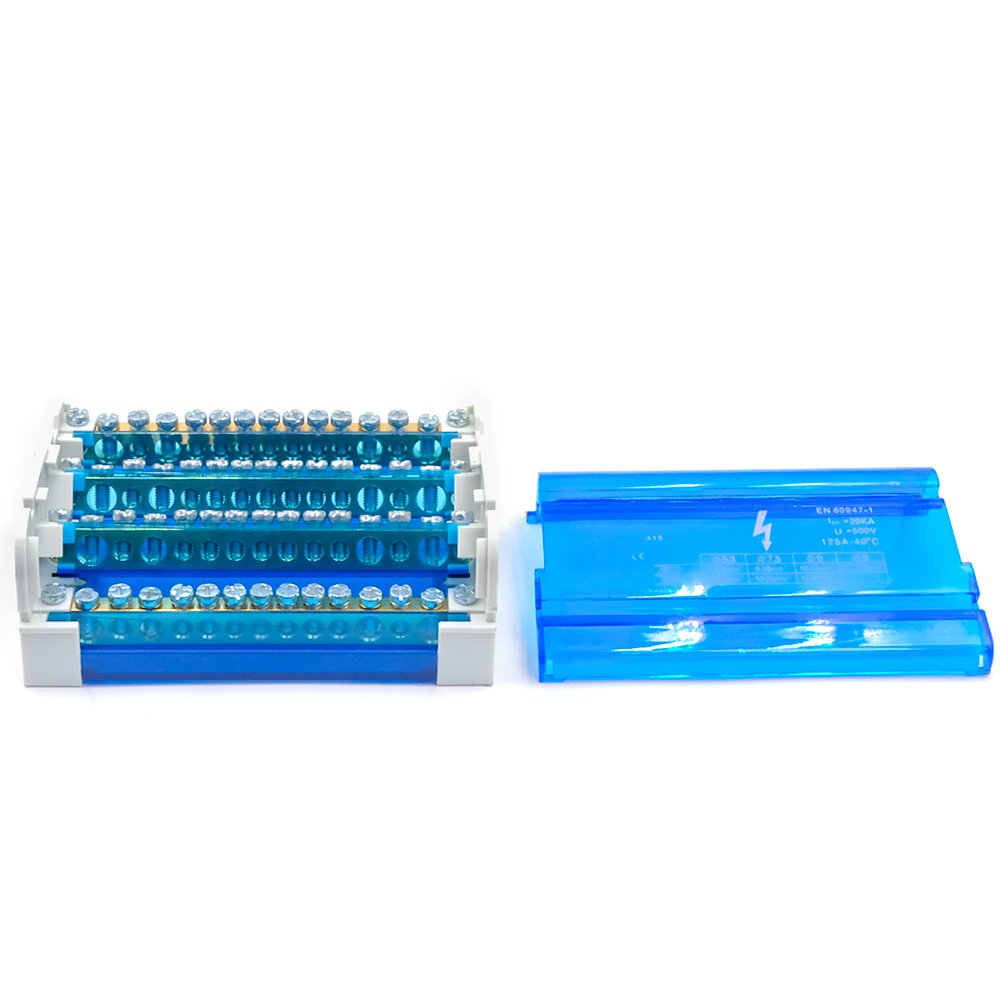

The WDH 415 has four bars with fifteen screw connection positions per bar. It provides the largest connection layout among the WDH models in this supplied range.
Allow 134 mm in width and 90 mm in depth for the body. The individual connection holes vary in size; send your conductor schedule so the required positions can be checked.
Specifications
| Model | WDH 415 |
|---|---|
| Connection | Screw connection |
| Rated voltage | 500 V |
| Rated current, listed | 125 A |
| Connection layout | 4 bars × 15 positions |
| Conductor cross-section, listed | 35 mm²; confirm the suitable size for each connection hole |
| Bar dimensions | 6.5 × 12 mm |
| Body dimensions | Width 134 × Depth 90 × Height 50 mm |
Request a Quote
Send us the quantity, conductor sizes and circuit layout. Include any mounting restrictions or accessory requirements with your enquiry.

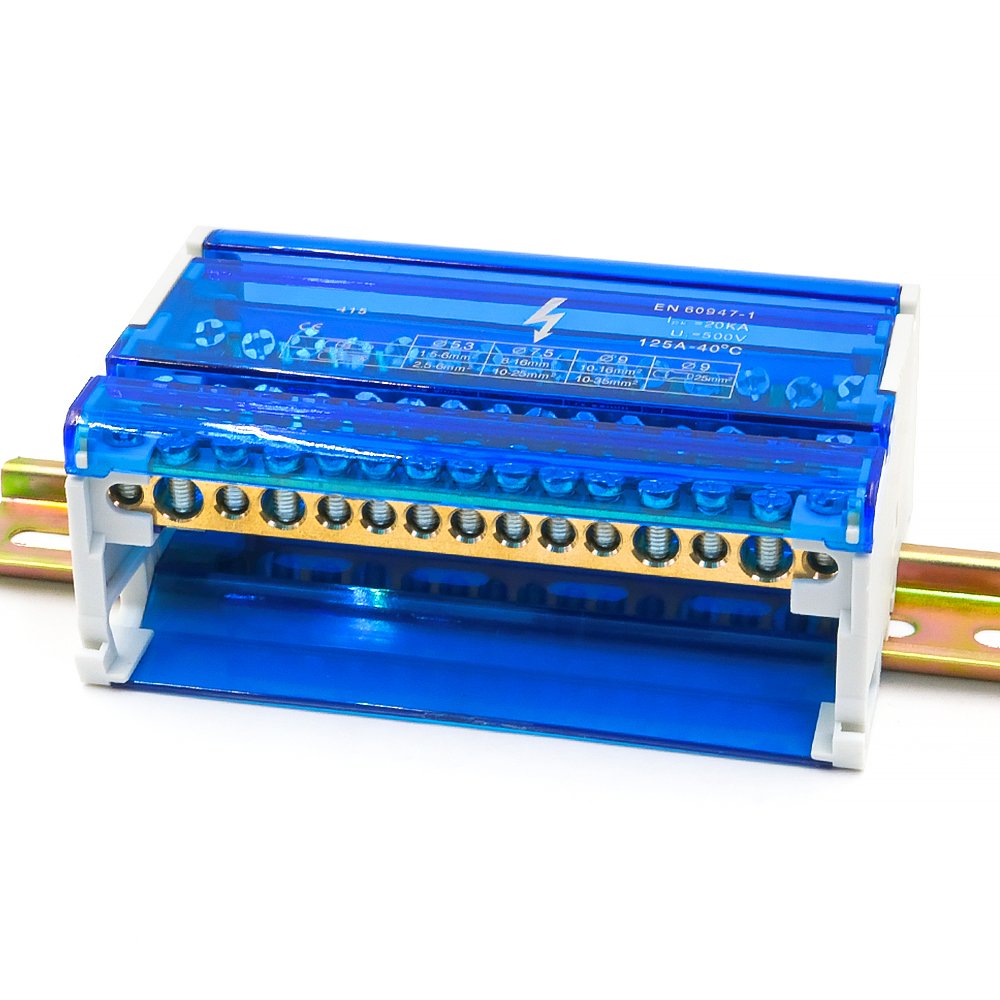

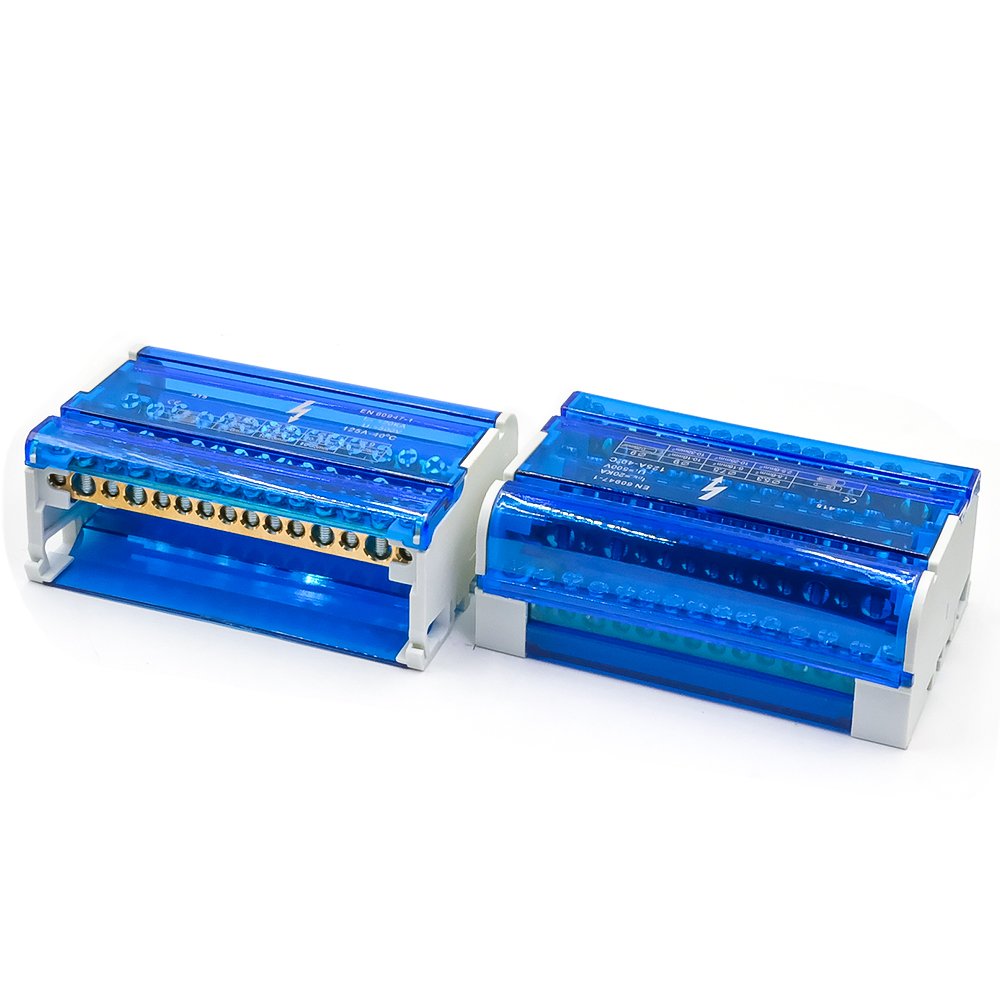

Rail-mounted assemblies in the photos are examples. Please specify whether you also need the mounting rail supplied.
