Description

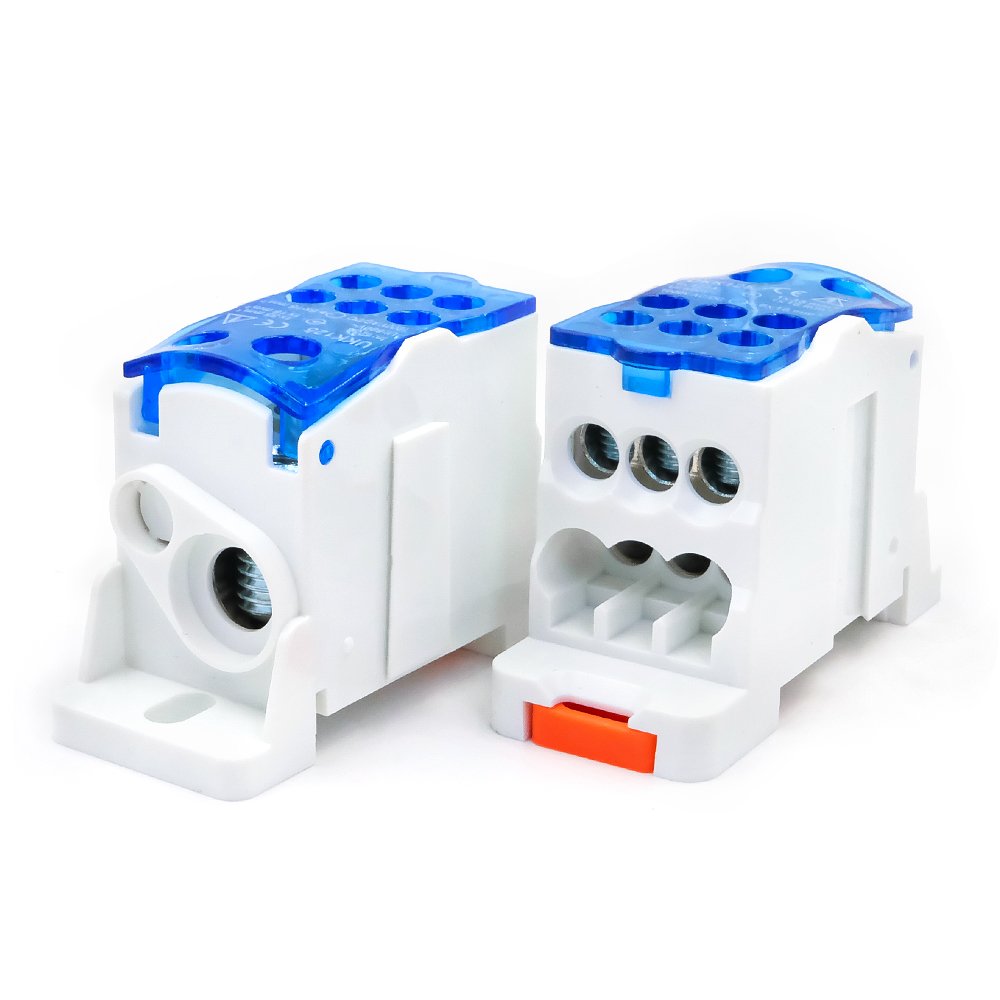

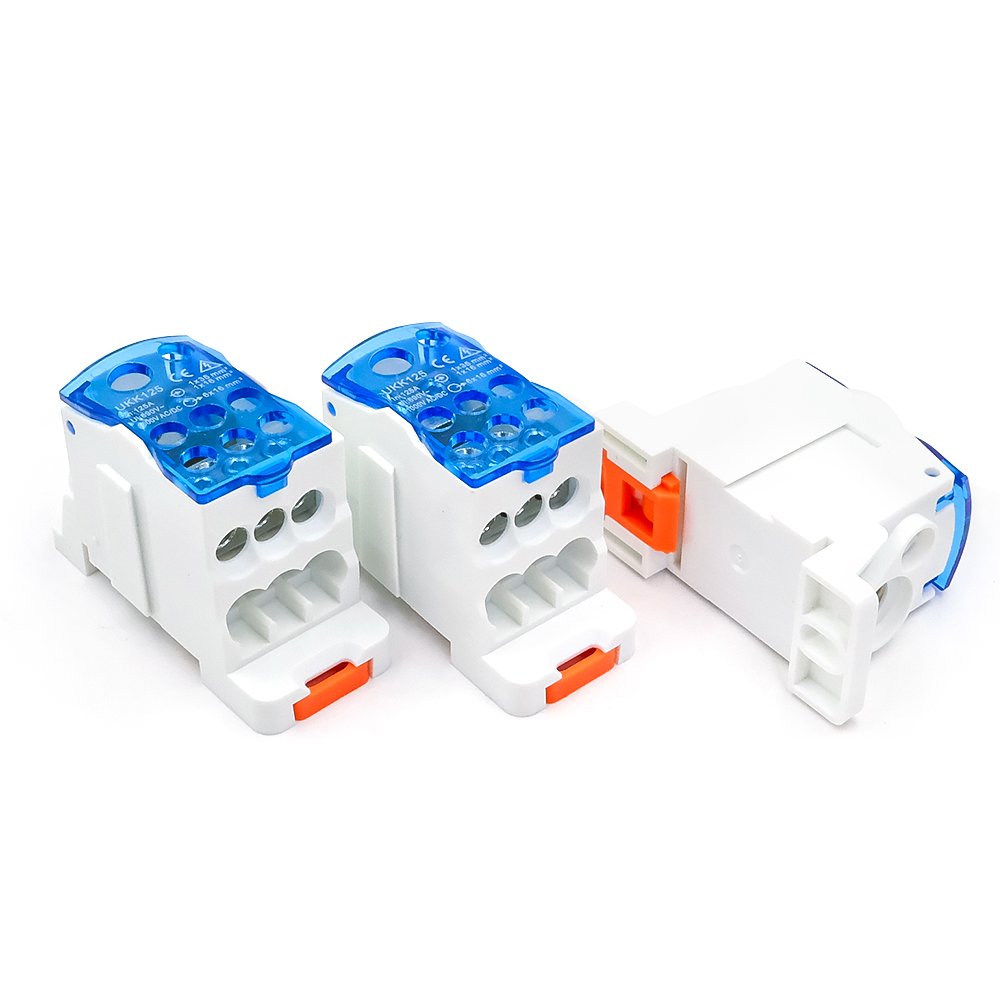

The UKK 125 provides six output positions, each listed for a 16 mm² conductor. The covered body keeps the screw connections together in a block measuring 29.4 mm wide and 74 mm long.
The input drawing shows entries for 16 mm² and 35 mm² conductors. Send us your incoming conductor size and connection layout so we can confirm the required arrangement.
Specifications
| Model | UKK 125 |
|---|---|
| Product type | Covered power distribution block |
| Connection | Screw connection |
| Rated voltage | 690 V |
| Rated current | 125 A |
| Input entry sizes shown | 16 mm² / 35 mm²; confirm required connection arrangement |
| Output connections | 6 × 16 mm² |
| Dimensions | Width 29.4 × Length 74 × Height 47 mm |
Request a Quote
Send us the quantity, incoming conductor size and the number and sizes of outgoing conductors. Please include any mounting requirements.

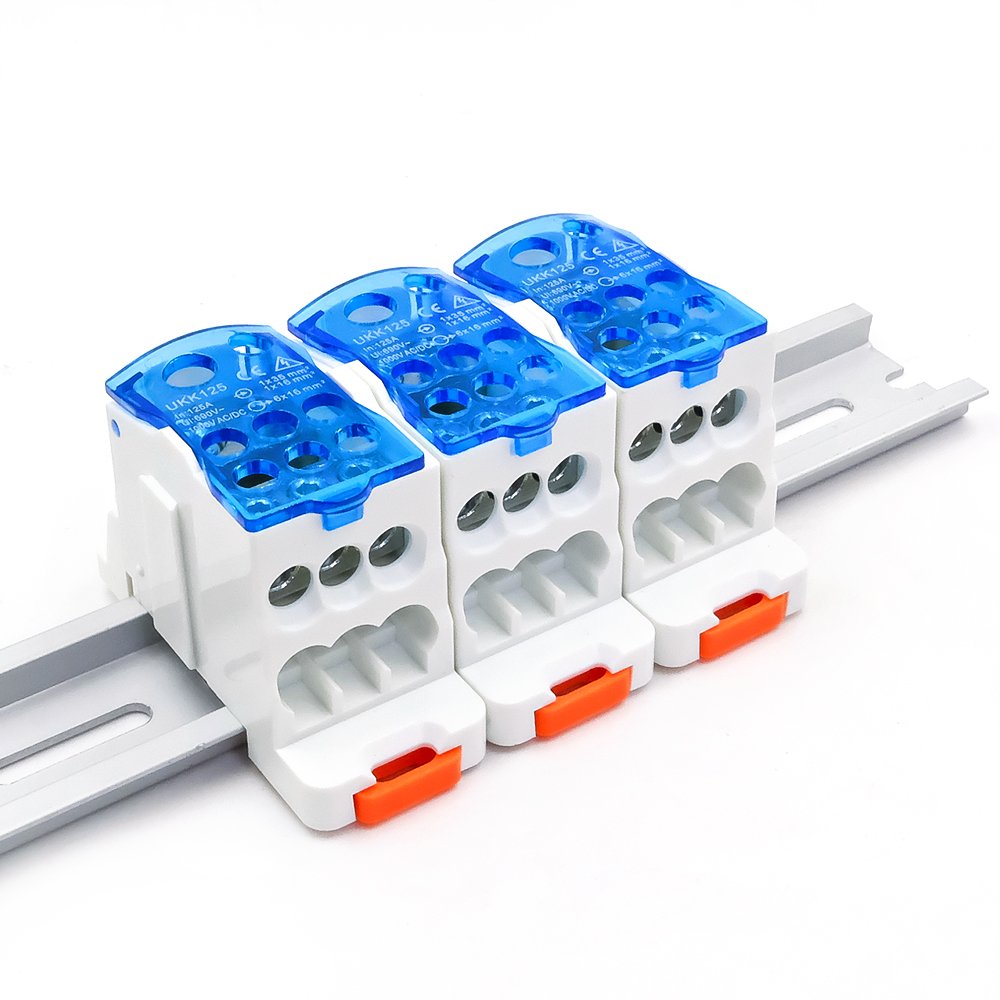

Rail-mounted assemblies in the photos are examples. Please specify whether you also need the mounting rail supplied.
