Description

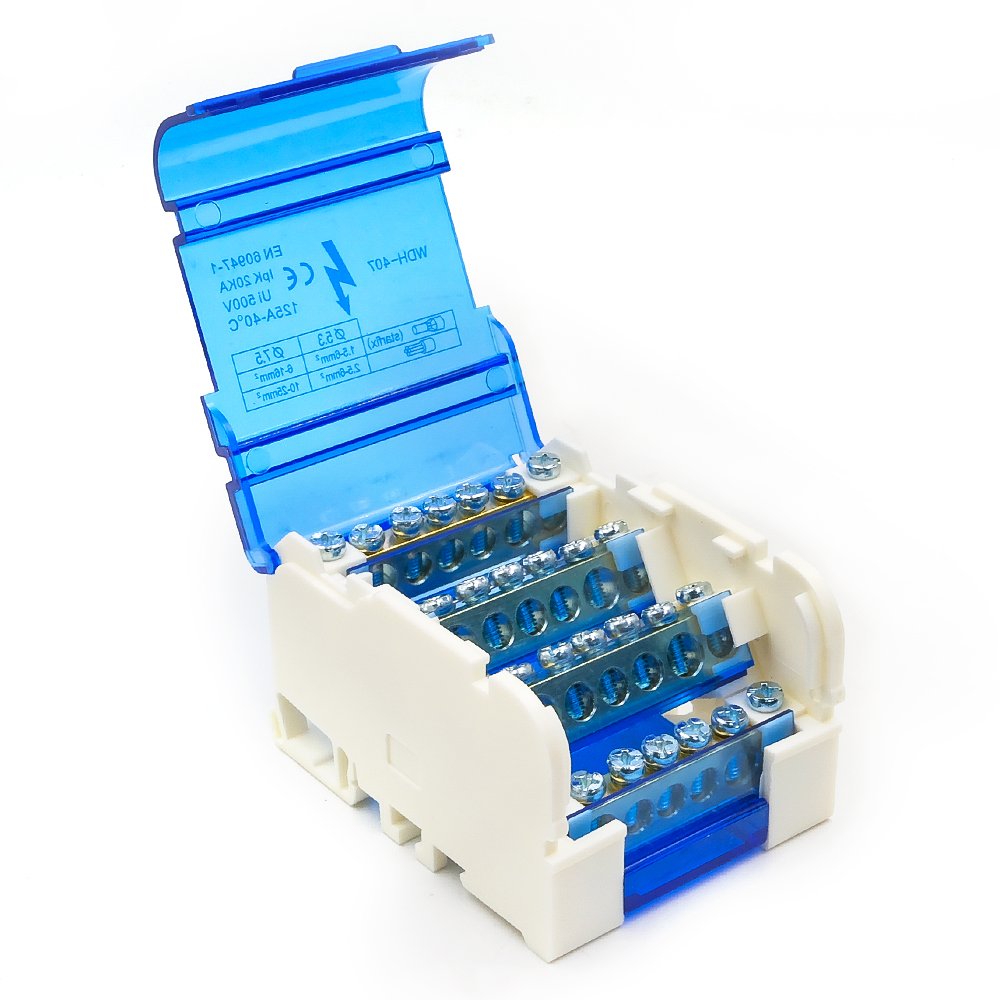

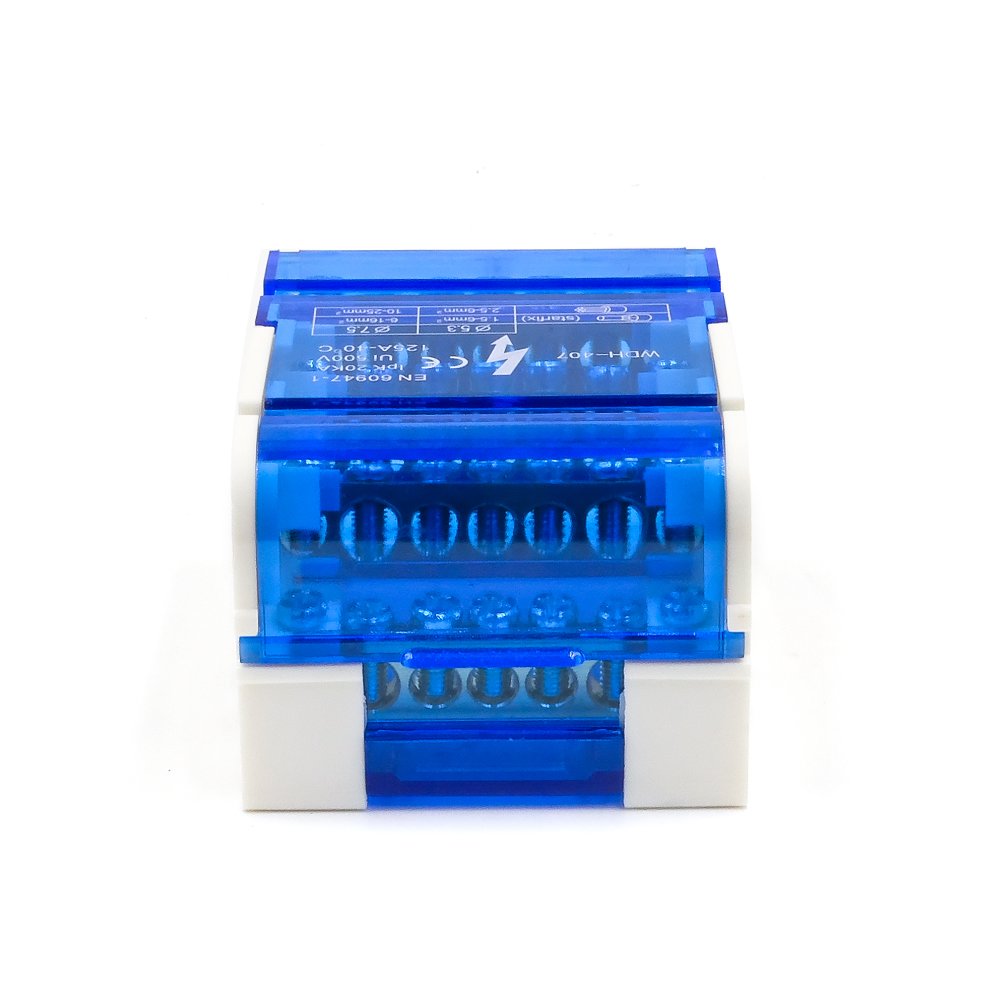

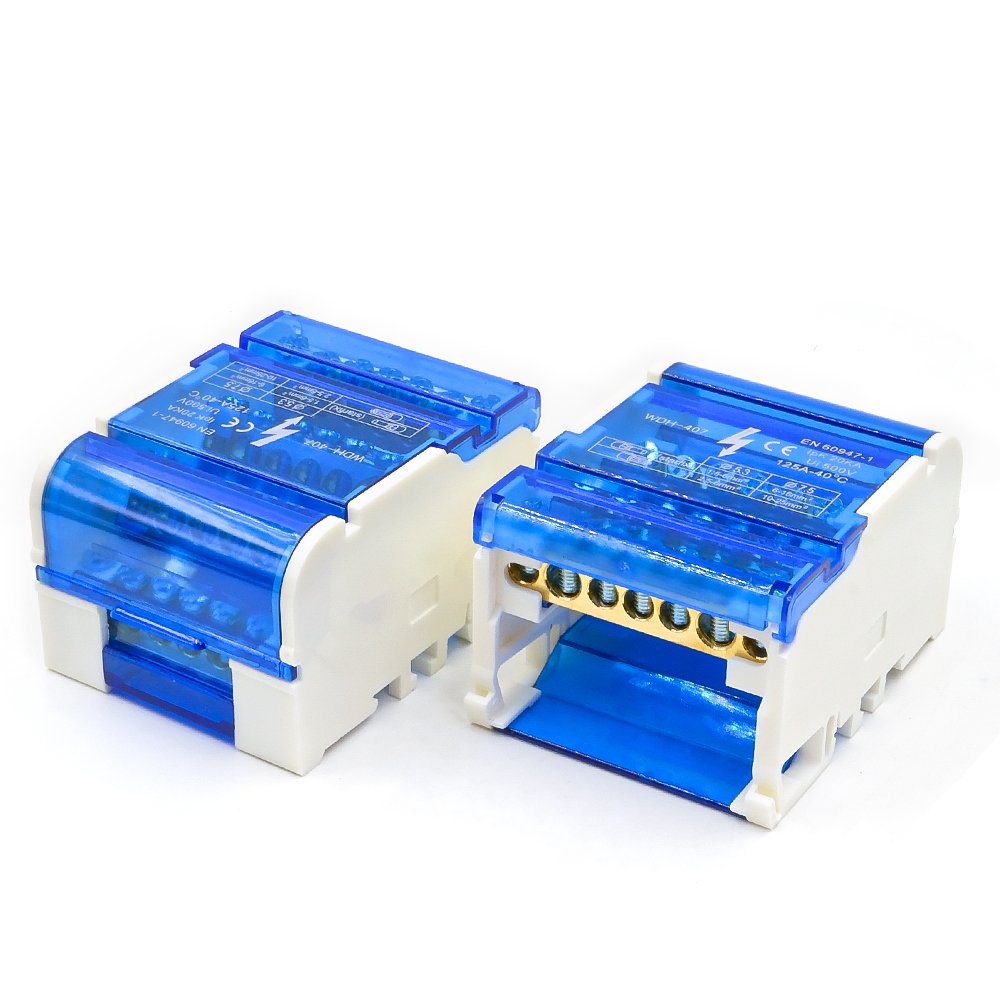

The WDH 407 has four bars with seven screw connection positions per bar. It keeps the same 67 mm width as the WDH 207, while increasing the body depth to 90 mm for the four-bar layout.
Choose the bar arrangement and connection count to suit your circuit layout. The connection holes differ in size, so the conductor size must be checked for each position.
Specifications
| Model | WDH 407 |
|---|---|
| Connection | Screw connection |
| Rated voltage | 500 V |
| Rated current, listed | 125 A |
| Connection layout | 4 bars × 7 positions |
| Conductor cross-section, listed | 35 mm²; confirm the suitable size for each connection hole |
| Bar dimensions | 6.5 × 12 mm |
| Body dimensions | Width 67 × Depth 90 × Height 50 mm |
Request a Quote
Send us the quantity, circuit layout and conductor sizes for each connection group. We will confirm the required arrangement before quoting.
Mounting rails shown in assembly photos are examples. Please specify any rails or other accessories required.
