Description

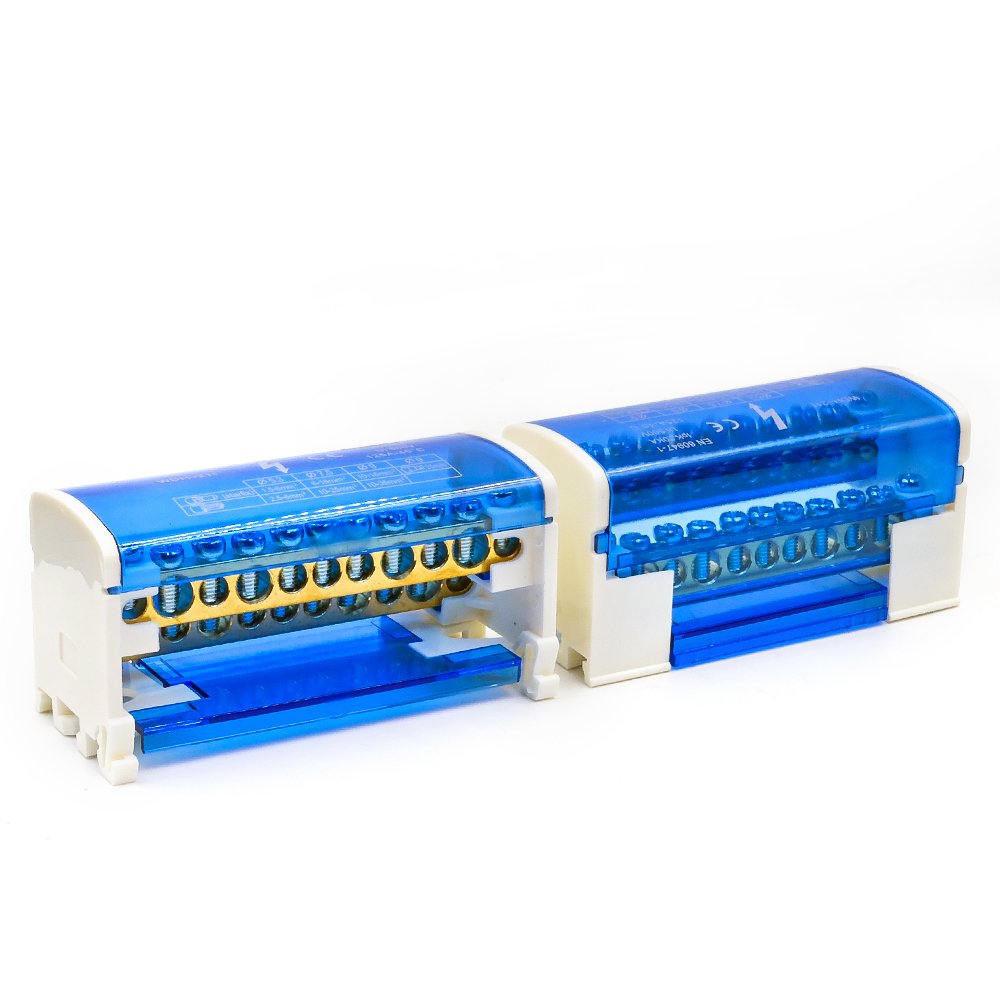

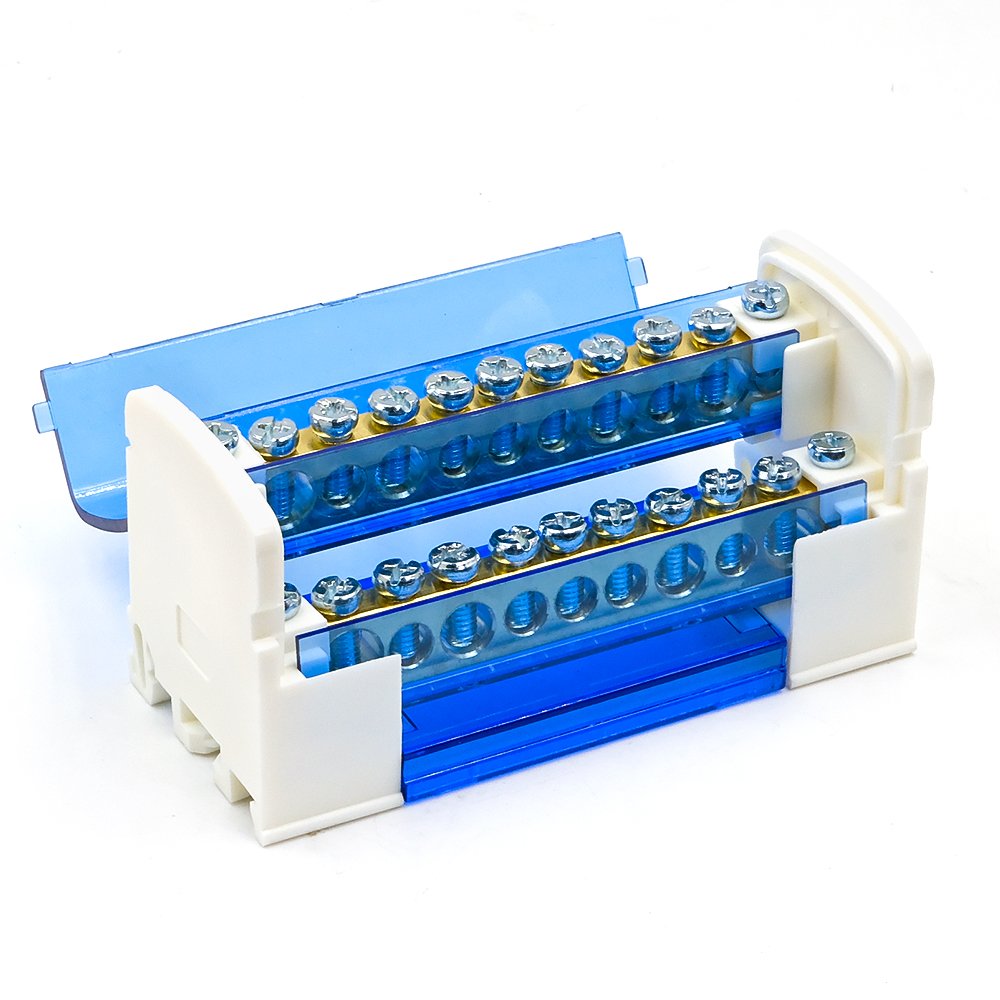

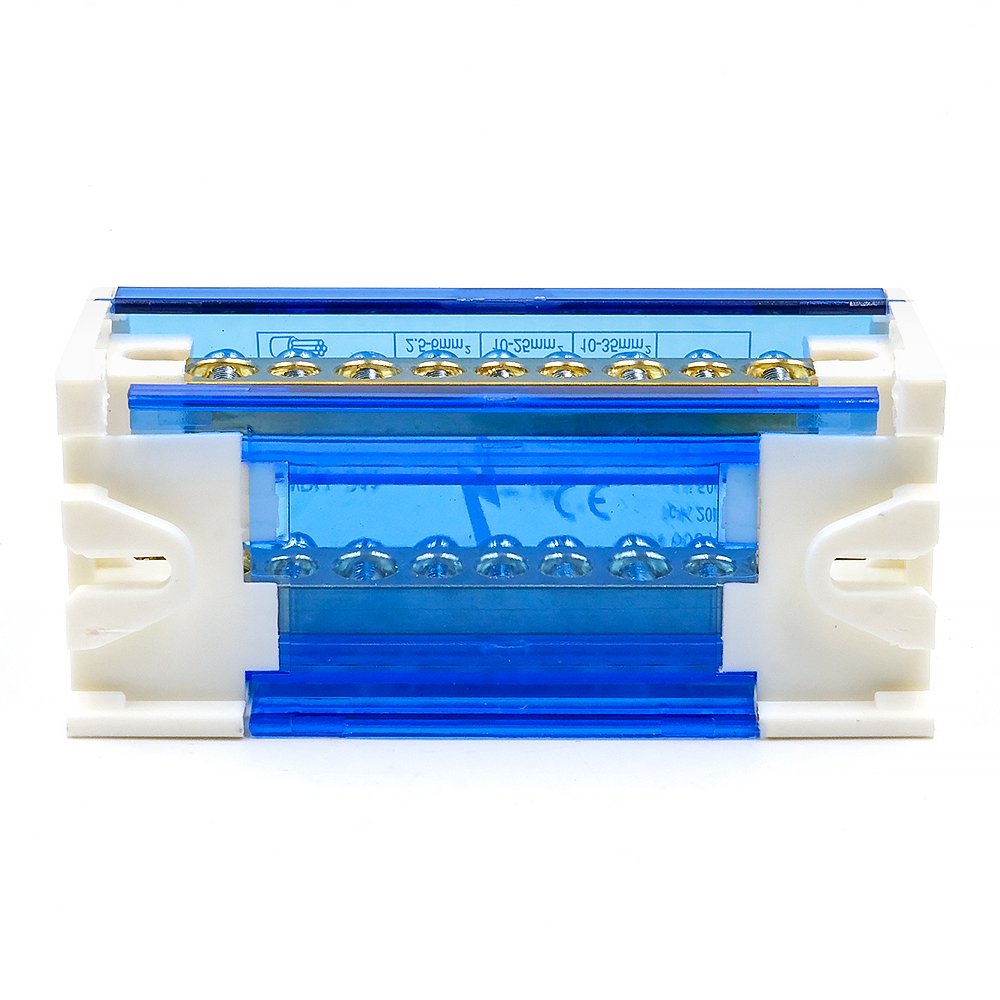

The WDH 211 provides eleven screw connection positions per bar in a two-bar body. It increases the connection count over the WDH 207 while keeping the same 45 mm body depth.
Allow 100 mm for the body width when planning the assembly. The individual holes vary in size, so the conductor schedule should be checked against the required connection positions.
Specifications
| Model | WDH 211 |
|---|---|
| Product type | Covered power distribution block |
| Connection | Screw connection |
| Rated voltage | 500 V |
| Rated current, listed | 125 A |
| Connection layout | 2 bars × 11 positions |
| Conductor cross-section, listed | 35 mm²; confirm the suitable size for each connection hole |
| Bar dimensions | 6.5 × 12 mm |
| Body dimensions | Width 100 × Depth 45 × Height 50 mm |
Request a Quote
Specify the quantity and the conductor sizes you need to connect. A circuit layout will help us check the required bar and connection arrangement.
Mounting rails and other assembly accessories are quoted separately when required.
