Description

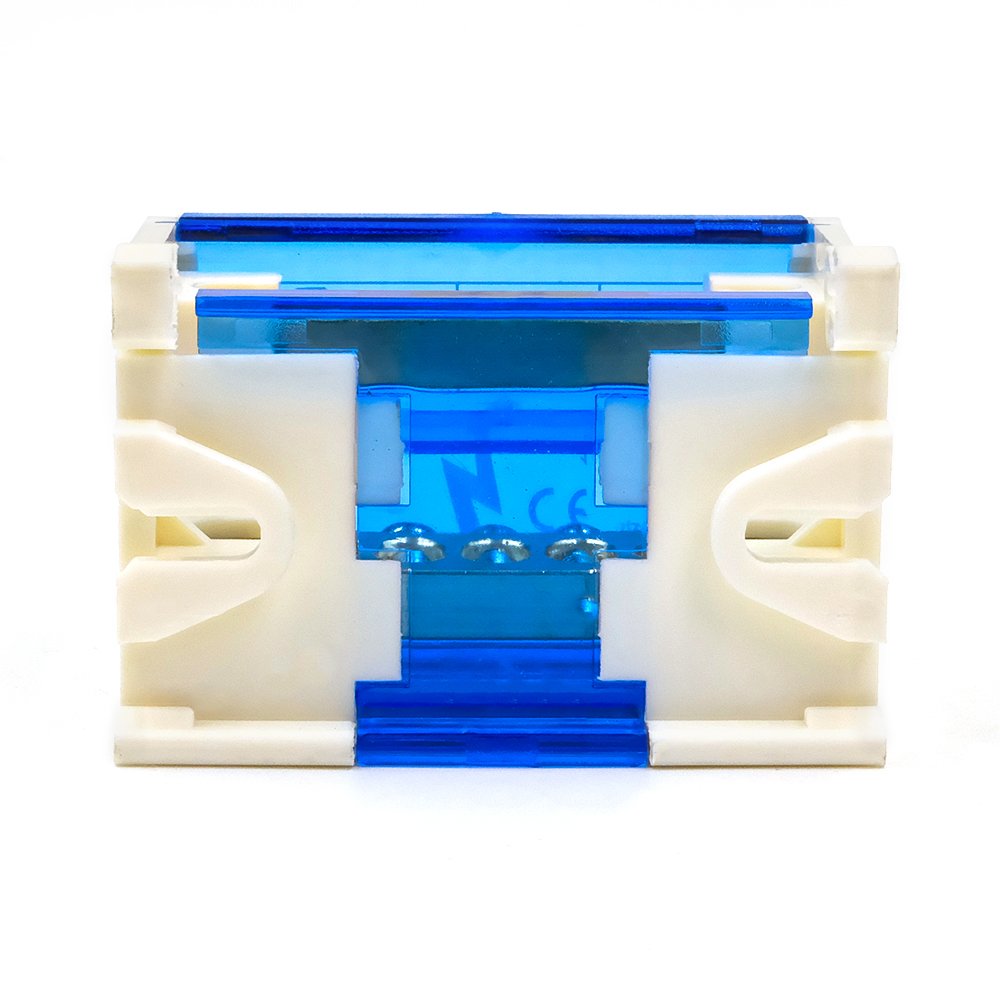

The WDH 207 has two bars with seven screw connection positions per bar. Its 67 mm-wide body is the most compact two-bar model in this supplied WDH range.
The connection holes differ in size. Send us the conductor sizes for each connection rather than assuming every position accepts the maximum listed conductor size.
Specifications
| Model | WDH 207 |
|---|---|
| Product type | Covered power distribution block |
| Connection | Screw connection |
| Rated voltage | 500 V |
| Rated current, listed | 125 A |
| Connection layout | 2 bars × 7 positions |
| Conductor cross-section, listed | 35 mm²; confirm the suitable size for each connection hole |
| Bar dimensions | 6.5 × 12 mm |
| Body dimensions | Width 67 × Depth 45 × Height 50 mm |
Request a Quote
Send us the quantity and conductor sizes for each connection group. Include a circuit layout if you need us to check the bar arrangement.
Rail-mounted assemblies in the photos are examples. Please specify any mounting rails or other accessories required.
