Description

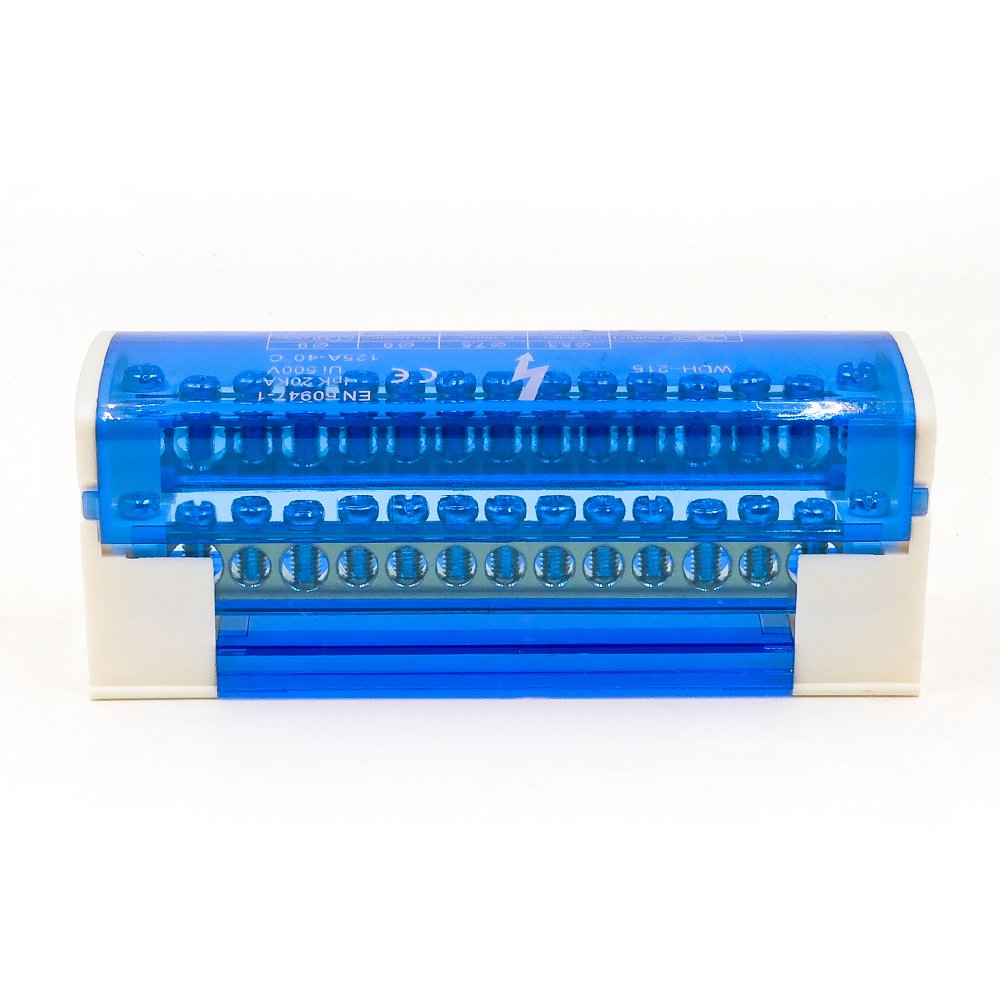

The WDH 215 has fifteen screw connection positions per bar in a two-bar layout. It offers the highest connection count among the two-bar WDH models in this supplied range.
The body is 134 mm wide, with the same 45 mm depth and 50 mm height as the smaller two-bar versions. Check the available mounting space and the conductor sizes required at each position.
Specifications
| Model | WDH 215 |
|---|---|
| Product type | Covered power distribution block |
| Connection | Screw connection |
| Rated voltage | 500 V |
| Rated current, listed | 125 A |

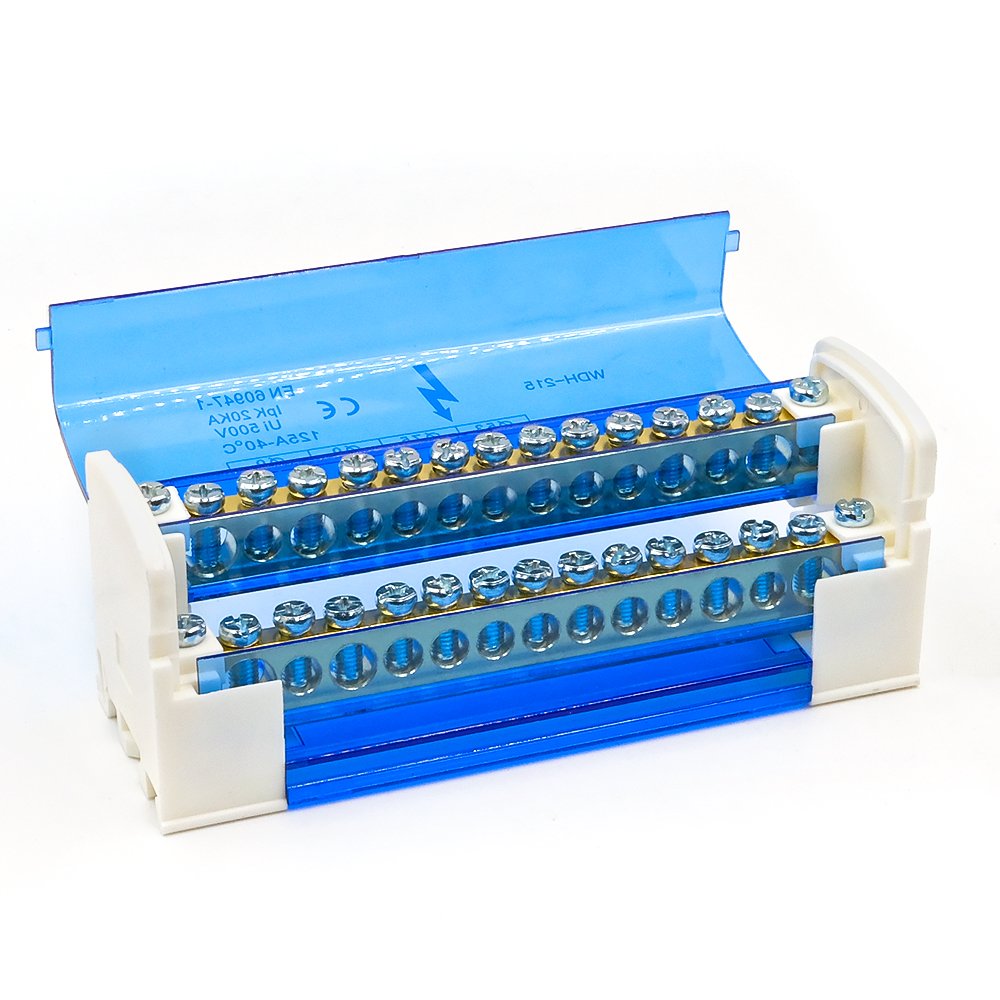

| Connection layout | 2 bars × 15 positions |
| Conductor cross-section, listed | 35 mm²; confirm the suitable size for each connection hole |
| Bar dimensions | 6.5 × 12 mm |
| Body dimensions | Width 134 × Depth 45 × Height 50 mm |
Request a Quote
Send us the quantity, conductor sizes and required connection layout. We will check the suitable connection positions and mounting requirements before quoting.

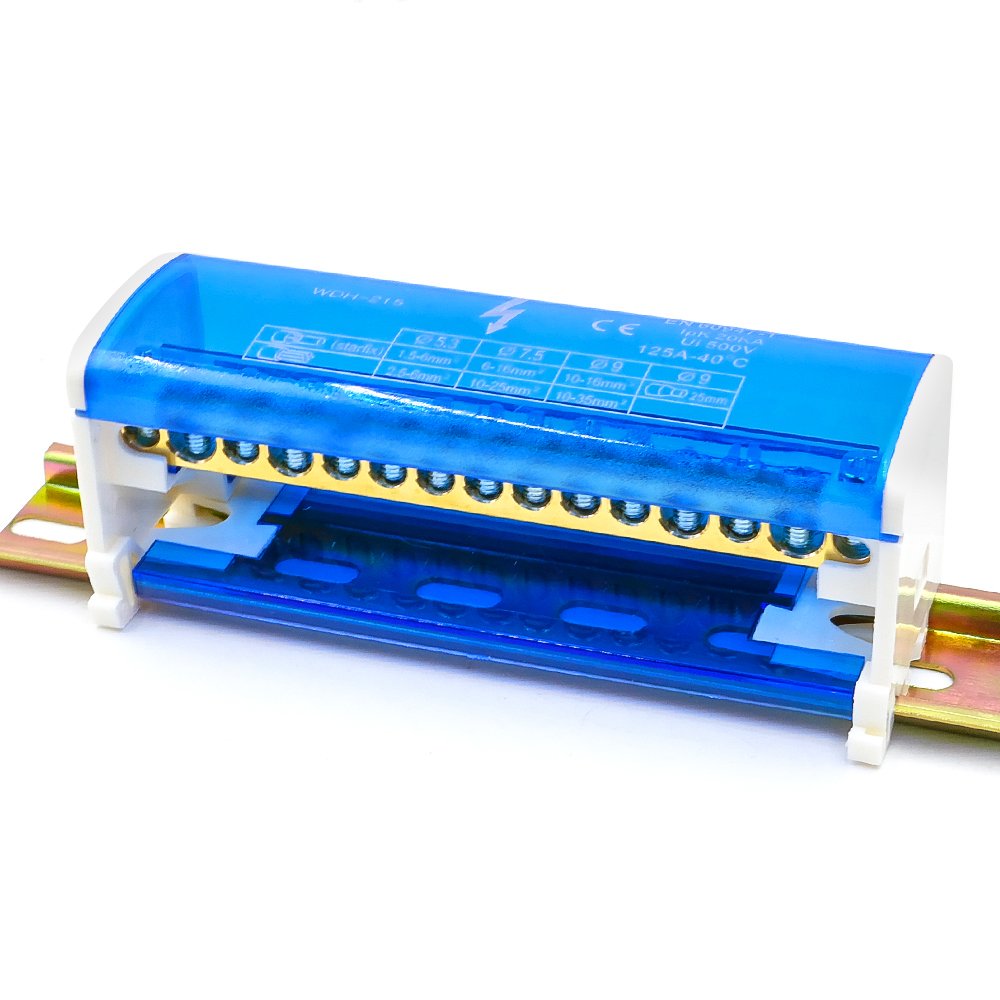

Mounting rails and other assembly accessories should be included in your enquiry if required.
