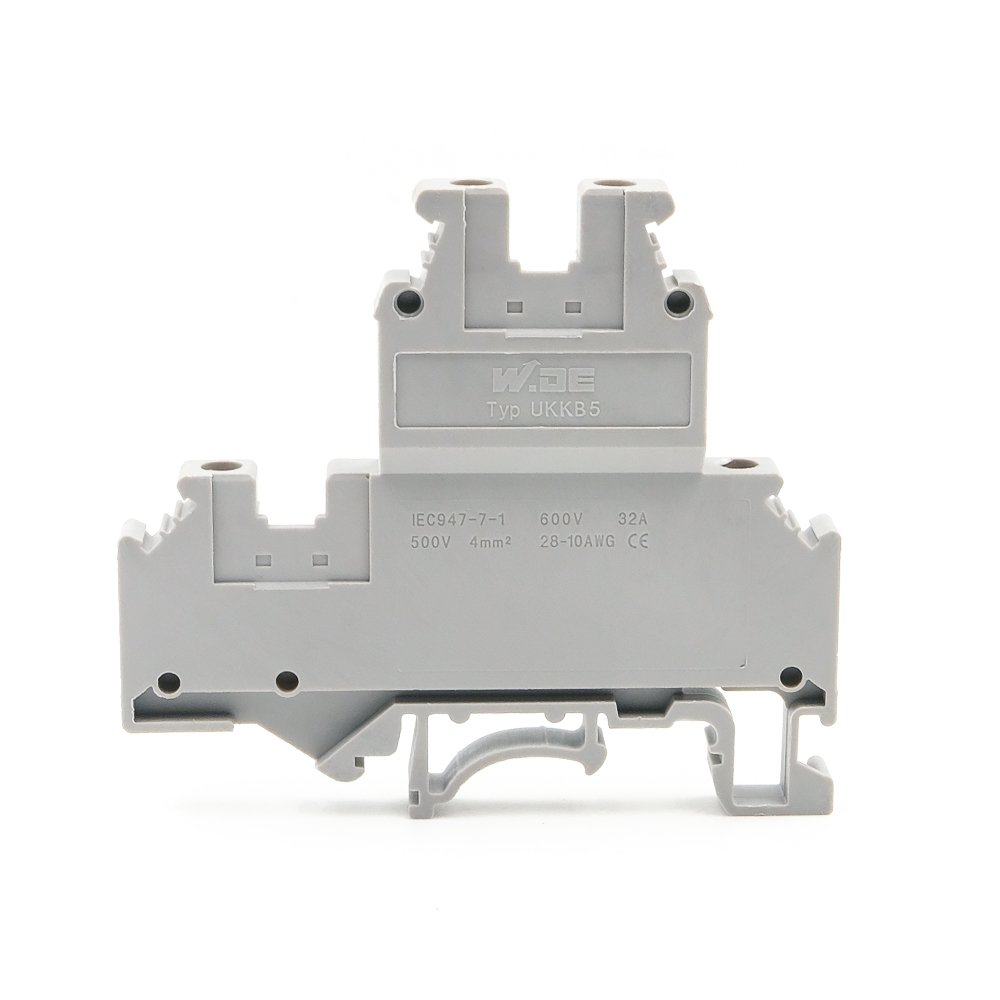

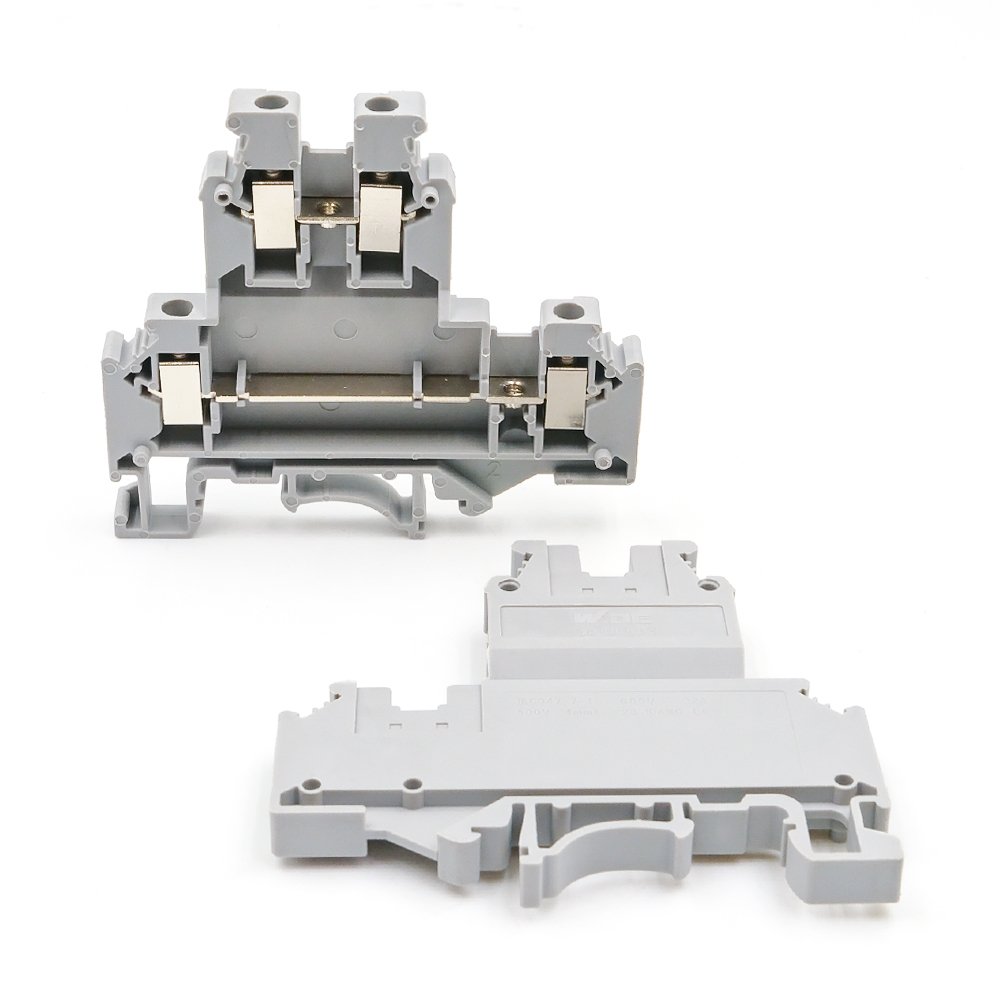

Description
The UKKB 5 combines two connection levels with an extended lower body. Both solid and flexible conductor ranges are 0.2–4 mm².
Its 68 mm length and 62 mm height are the same as the UKKB 3, but its thickness is 6.2 mm. It uses ZB6 markers and 10-6 bridges, so the accessory sizes should be checked when ordering mixed models.
Specifications
| Model | UKKB 5 |
|---|---|
| Terminal type | Offset double-level terminal block |
| Connection | Screw connection |
| Mounting | DIN rail |
| Rated voltage | 500 V |
| Rated current | 32 A |
| Solid conductor cross-section | 0.2–4 mm² |
| Flexible conductor cross-section | 0.2–4 mm² |
| Dimensions | Thickness 6.2 × Length 68 × Height 62 mm |
Matching Accessories
- End cover: D-UKKB 3/5
- Fixed bridge: FBI 10-6
- Insertion bridge: EB 10-6
- Marker strip: ZB6
Request a Quote
Send the quantity, end-cover requirements and bridge positions. We can check the parts list against your terminal layout before quoting.

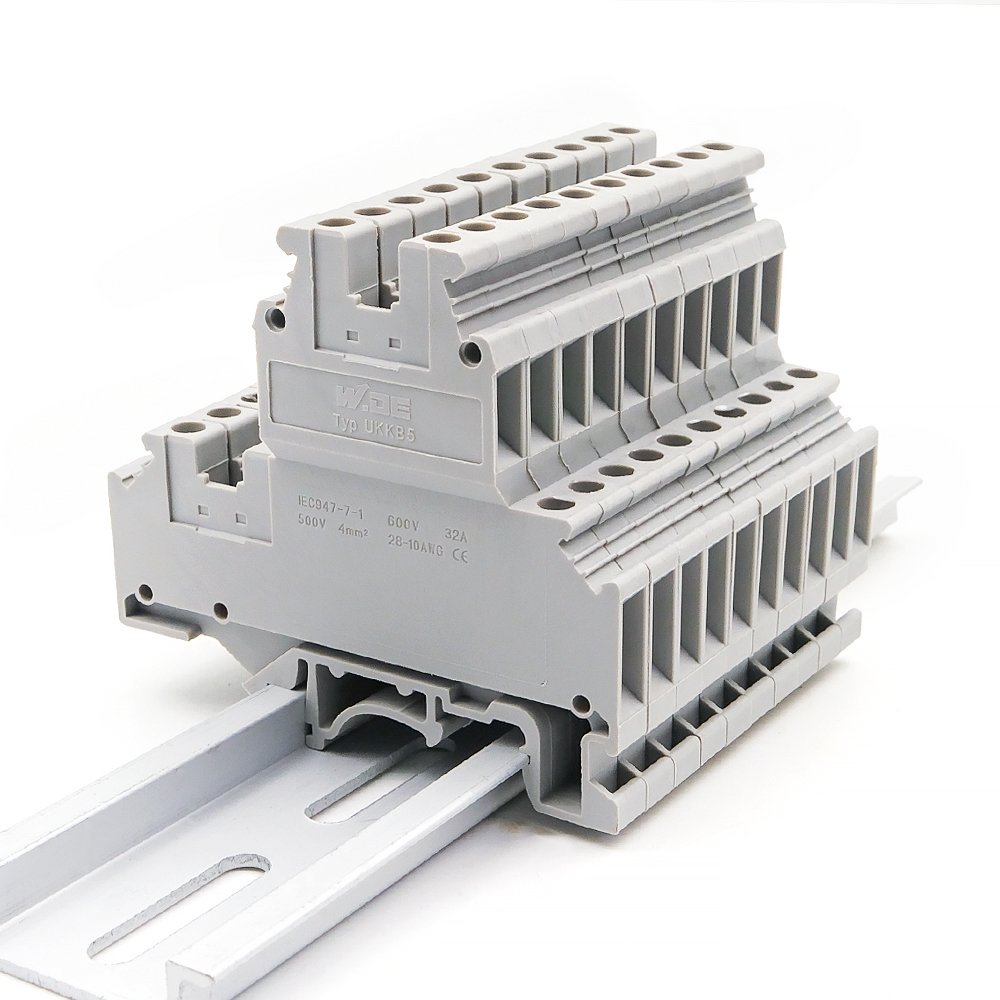

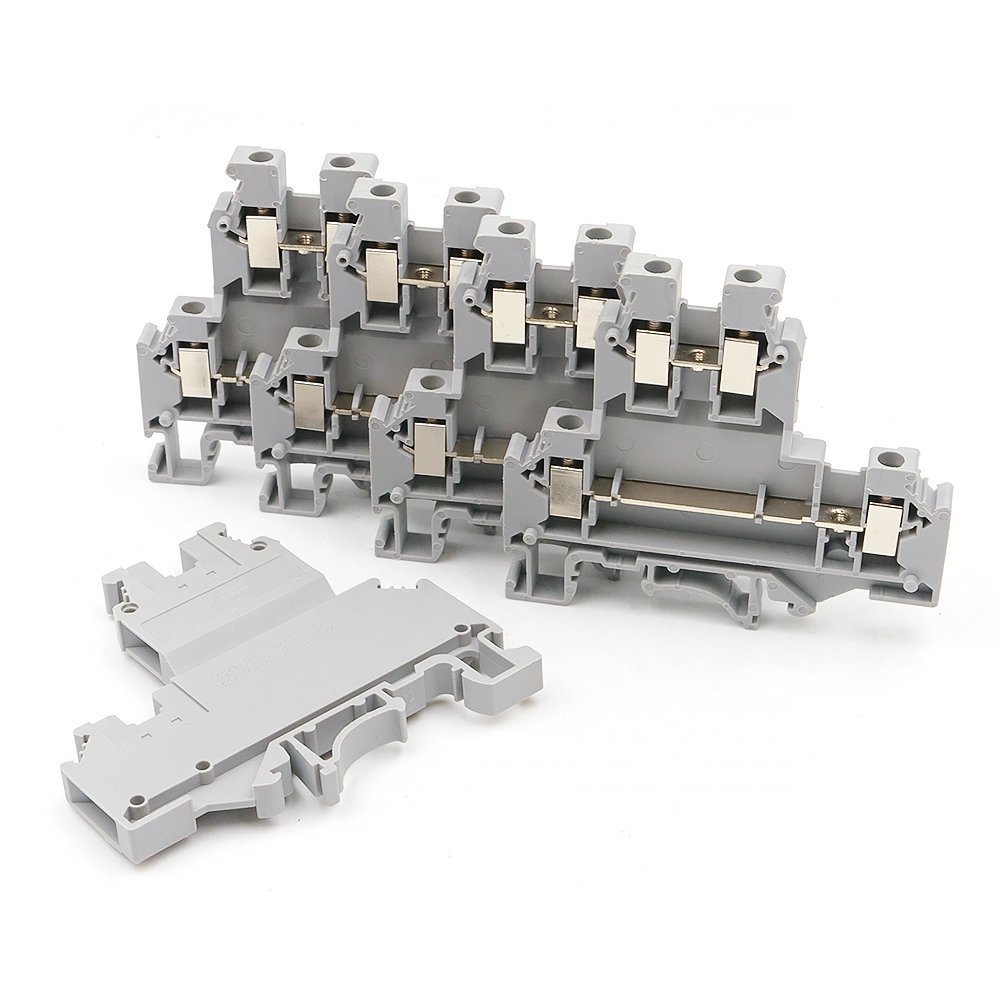

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
