Description

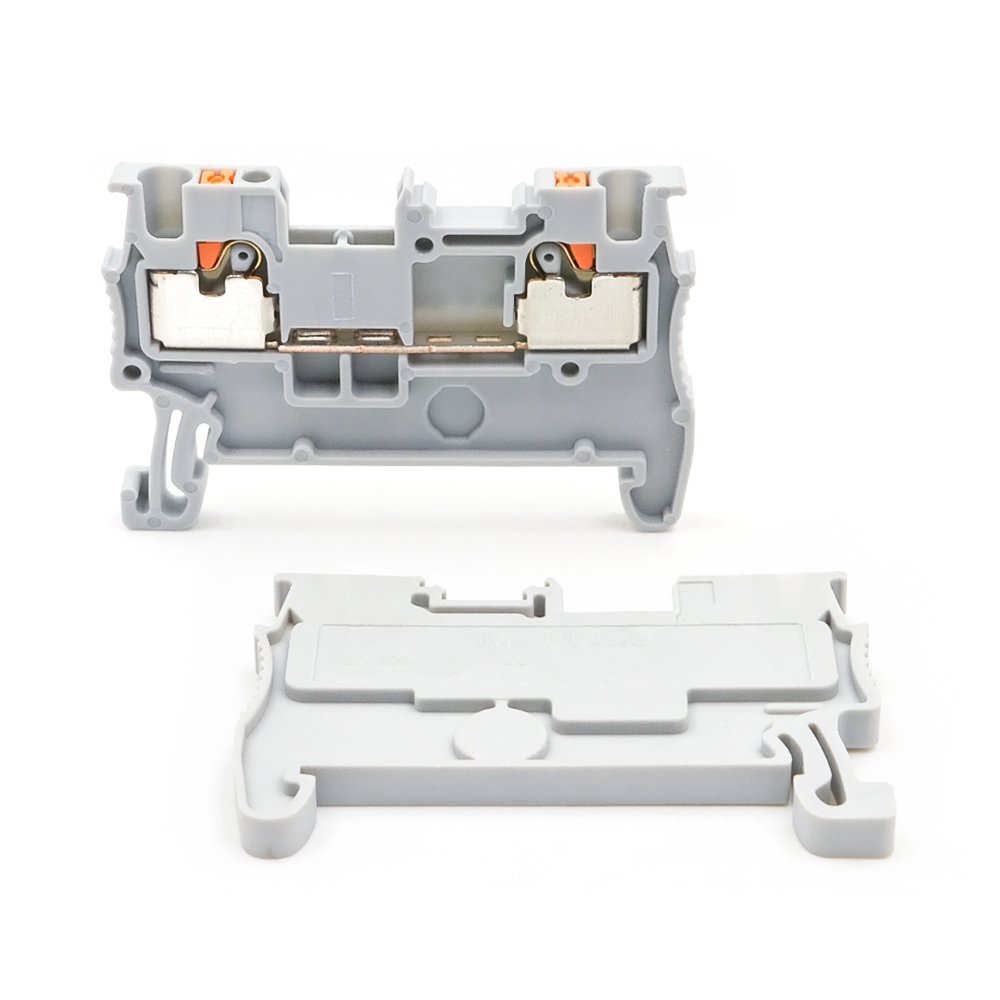

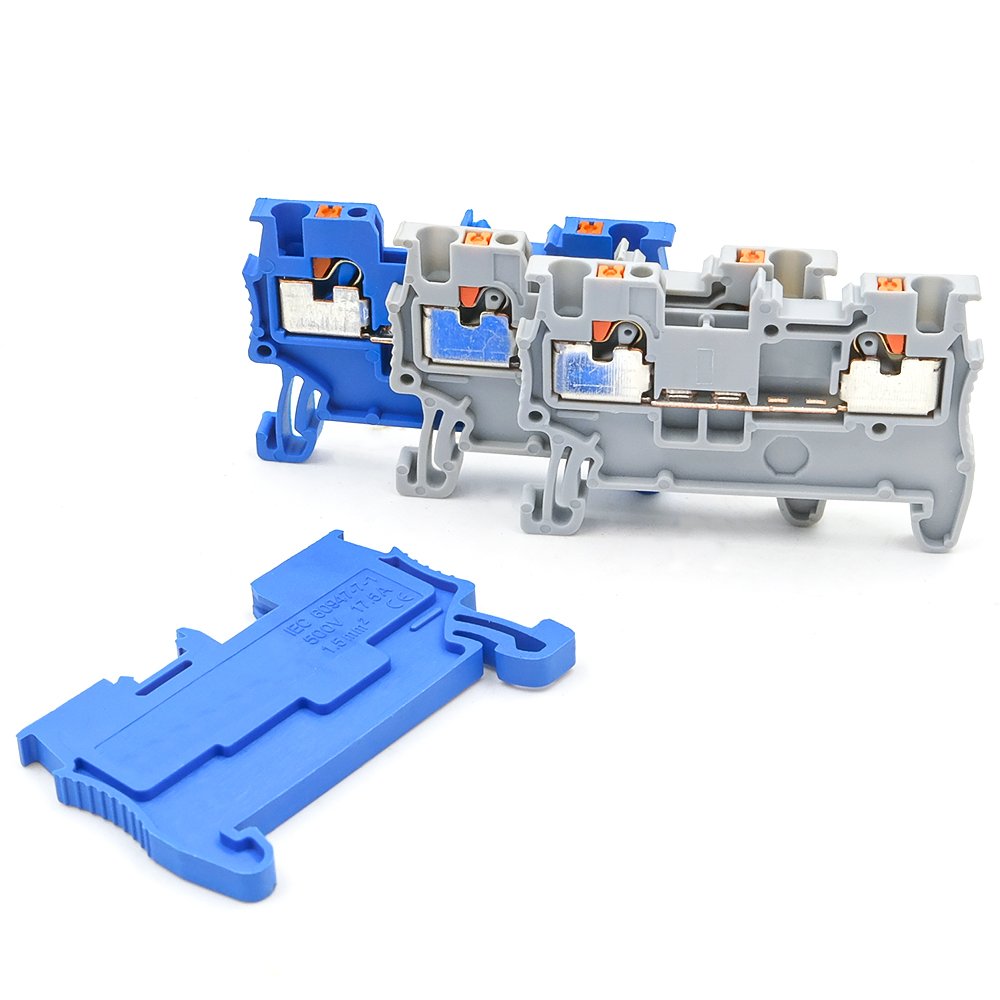

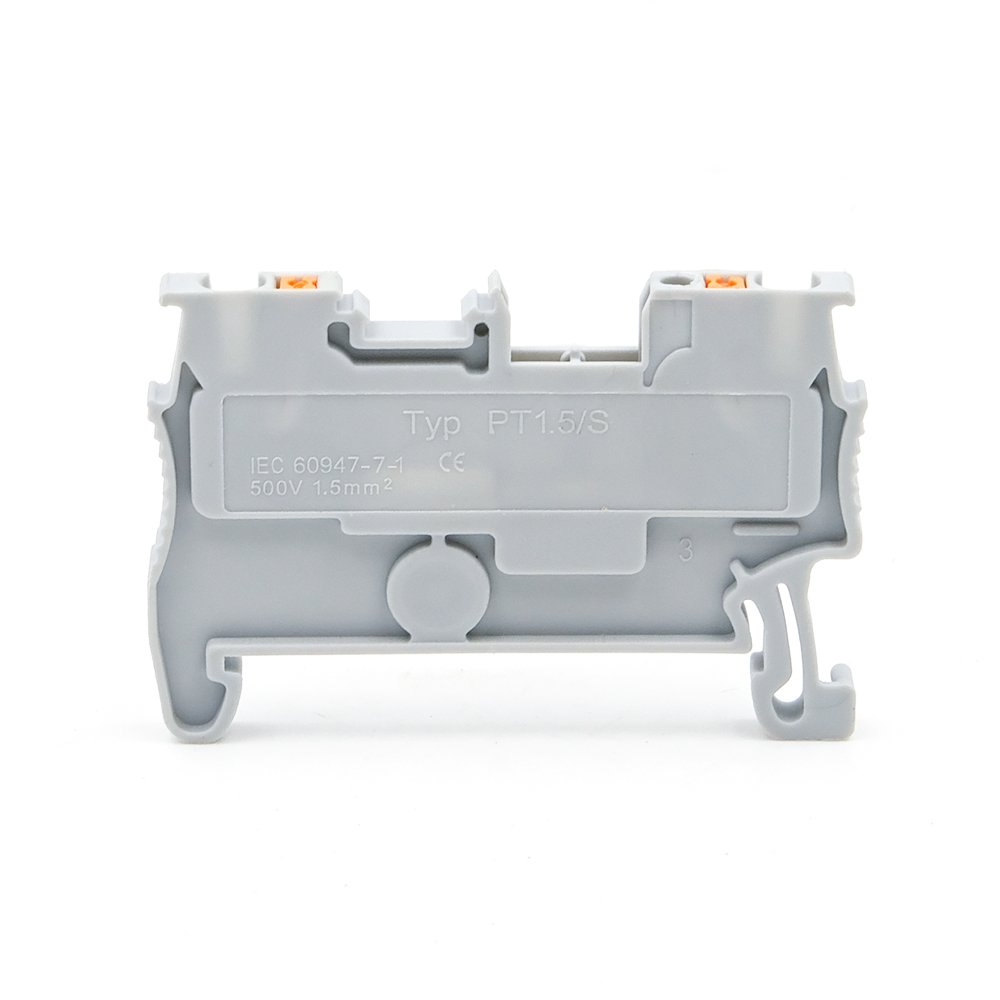

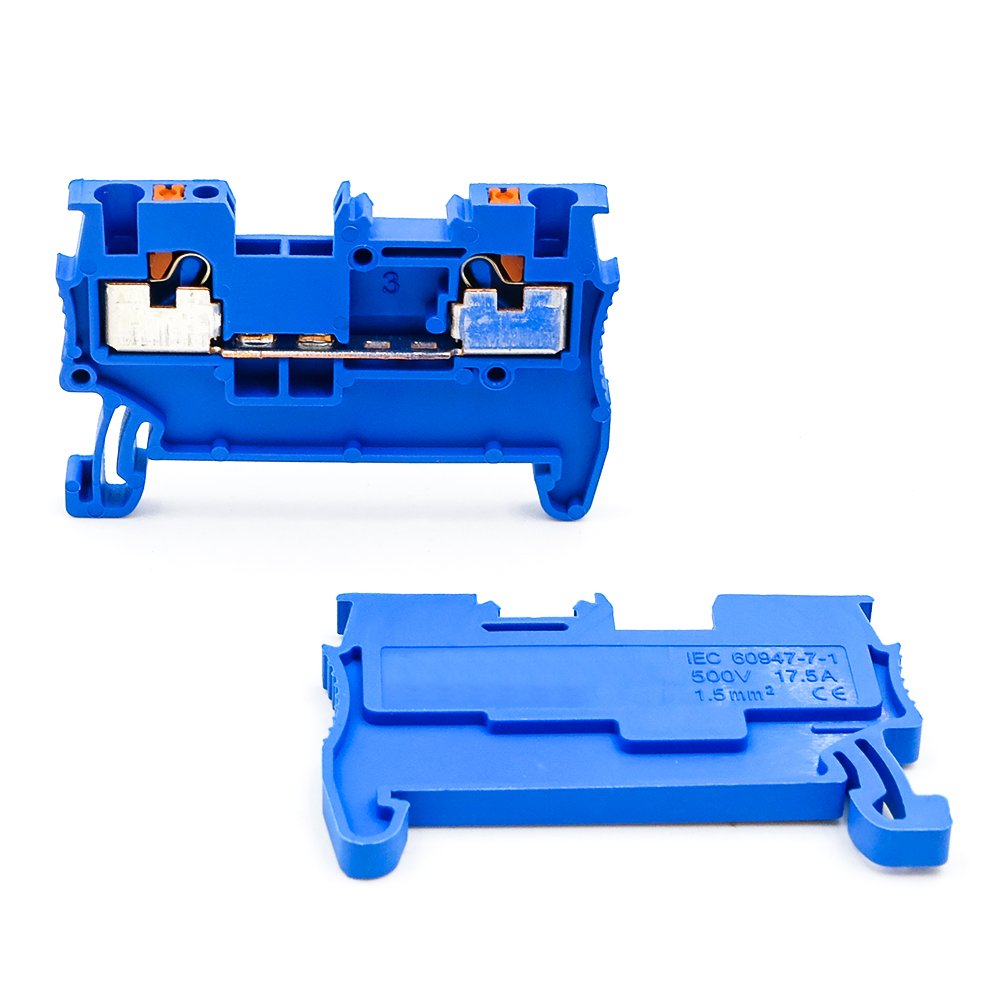

The PT 1.5 is a compact push-in terminal block for solid and flexible conductors from 0.14 to 1.5 mm². Its 3.5 mm thickness keeps the terminal row narrow, with a body height of 32 mm.
This model uses the 3.5 mm bridge and marker sizes. Check these references when ordering it alongside larger PT terminals.
Specifications
| Model | PT 1.5 |
|---|---|
| Terminal type | Compact feed-through terminal block |
| Connection | Push-in spring connection |
| Mounting | DIN rail |
| Rated voltage | 500 V |
| Rated current | 17.5 A |
| Solid conductor cross-section | 0.14–1.5 mm² |
| Flexible conductor cross-section | 0.14–1.5 mm² |
| Dimensions | Thickness 3.5 × Length 45 × Height 32 mm |
Matching Accessories
- End cover: D-PT1.5/S
- Plug-in bridges: FBS 10-3.5
- Marker strip: ZB3.5
Request a Quote
Send the colour, quantity and any end covers, bridges or markers required. For replacement orders, a photo of the existing terminal will help us check the match.

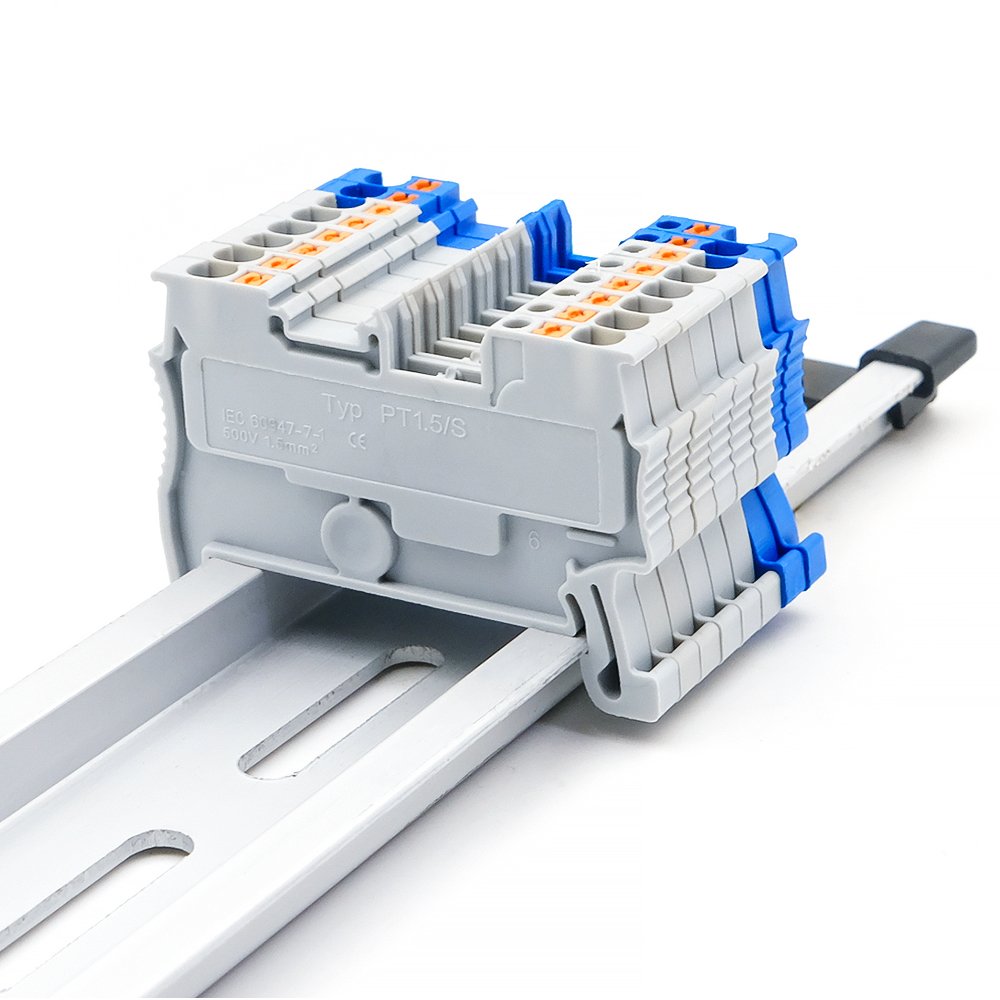

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
