Description

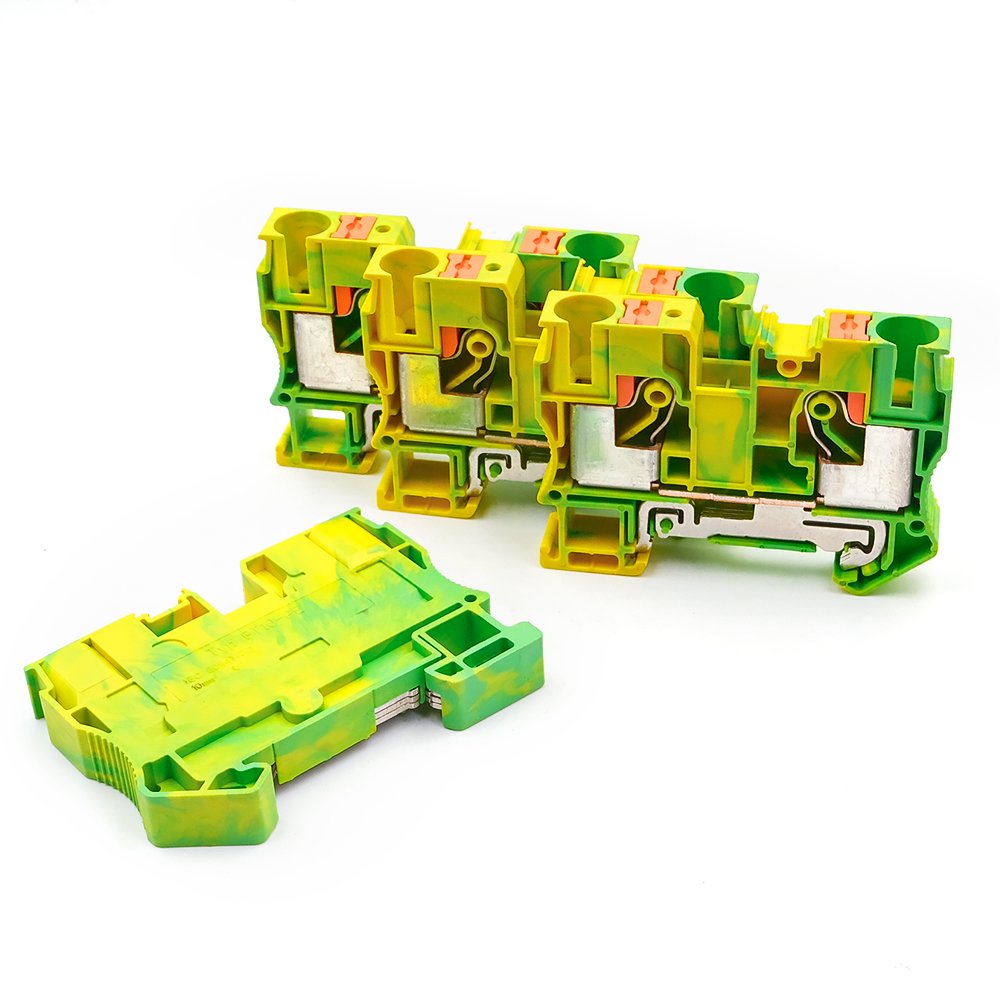

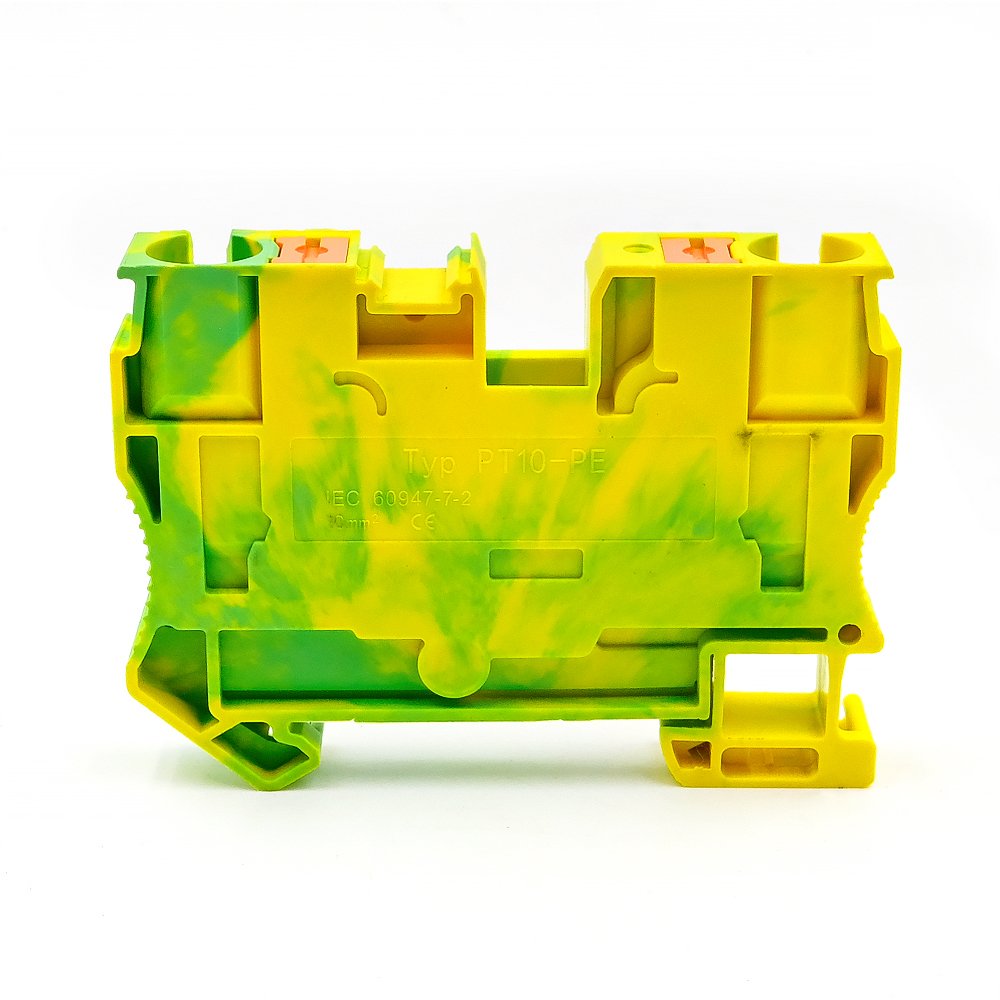

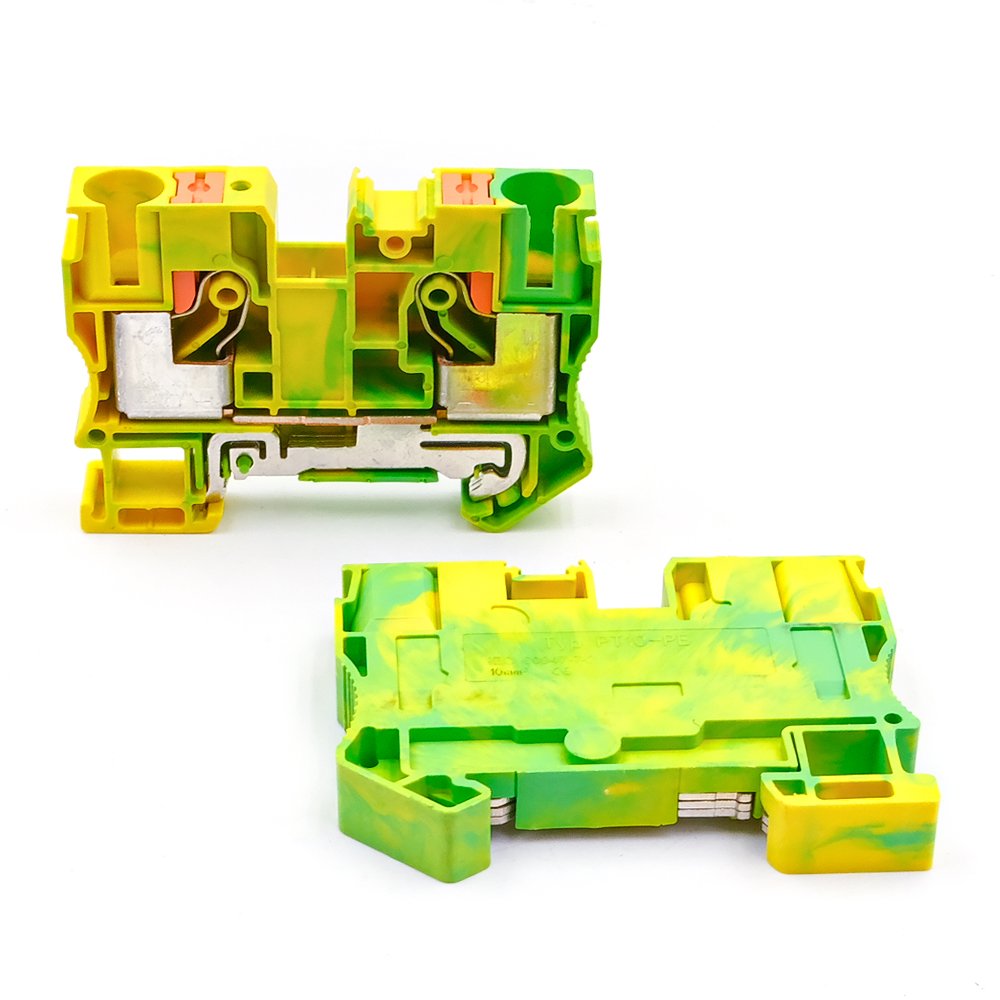

The PT 10-PE accepts solid protective earth conductors from 0.5 to 16 mm² and flexible conductors from 0.5 to 10 mm². It has a green/yellow housing and a metal rail contact at the base.
The 10.2 mm-thick body is 67.7 mm long and 49.5 mm high. Check these dimensions and the rail profile when adding it to an existing terminal assembly.
Specifications
| Model | PT 10-PE |
|---|---|
| Terminal type | Protective earth (PE) terminal block |
| Connection | Push-in spring connection |
| Mounting | DIN rail |
| Solid conductor cross-section | 0.5–16 mm² |
| Flexible conductor cross-section | 0.5–10 mm² |
| Dimensions | Thickness 10.2 × Length 67.7 × Height 49.5 mm |
| Housing colour | Green / Yellow |
Matching Accessories
- End cover: D-PT 10
- Marker strip: ZB10
Request a Quote
Specify the quantity, conductor size and markers required. If you are replacing an existing PE assembly, include a photo and the DIN rail details so we can check compatibility.

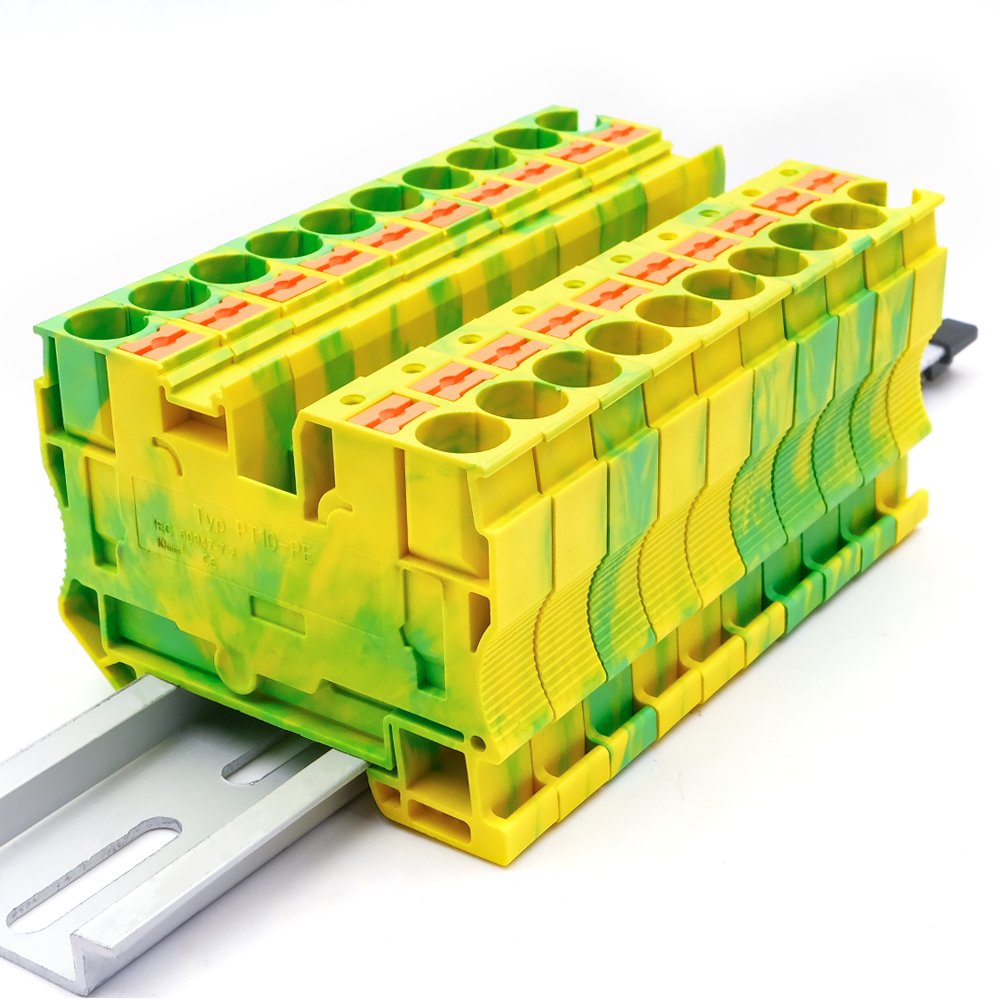

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
