Description

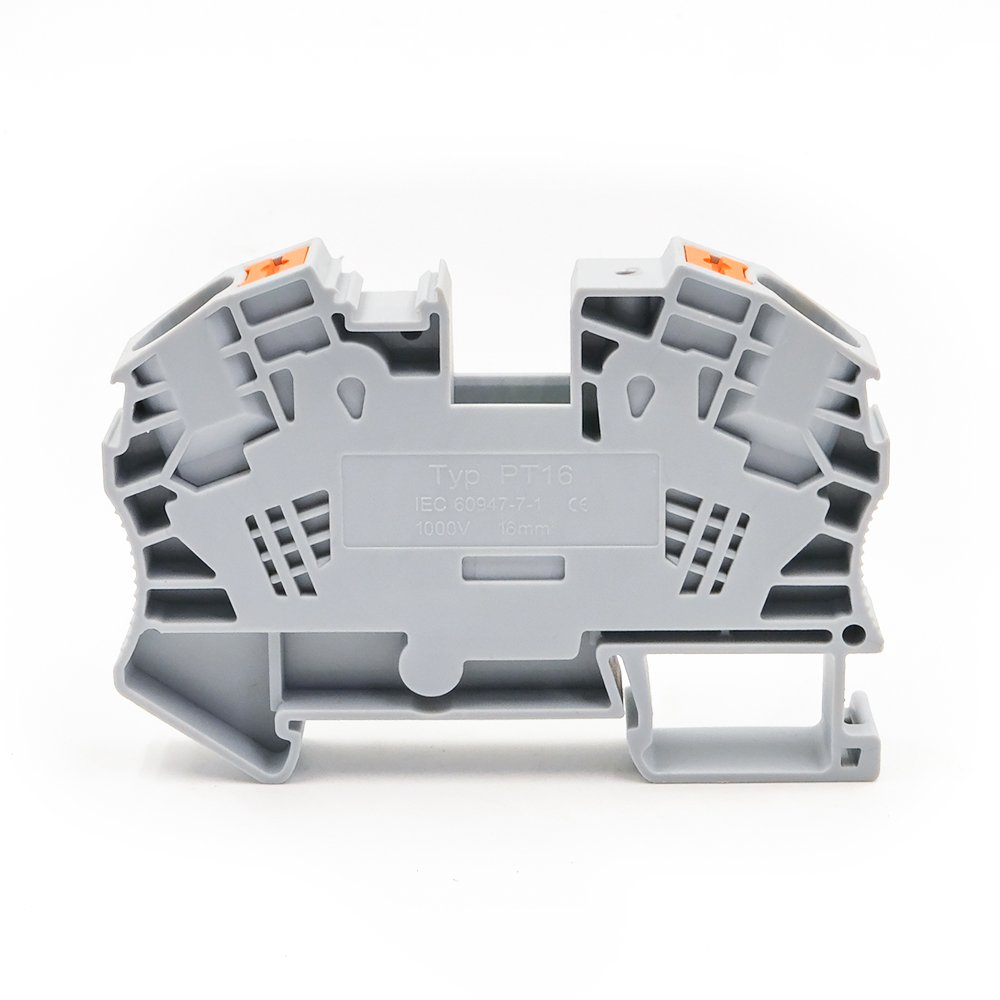

The PT 16 has angled conductor entries and a larger body for solid conductors up to 25 mm² or flexible conductors up to 16 mm². Its listed ratings are 1000 V and 76 A.
At 75.4 mm long and 52.6 mm high, it needs more installation clearance than the smaller PT feed-through models. Include the terminal dimensions when planning the panel layout.
Specifications
| Model | PT 16 |
|---|---|
| Terminal type | Feed-through terminal block |
| Connection | Push-in spring connection |
| Mounting | DIN rail |
| Rated voltage | 1000 V |
| Rated current | 76 A |
| Solid conductor cross-section | 0.5–25 mm² |
| Flexible conductor cross-section | 0.5–16 mm² |
| Dimensions | Thickness 12.2 × Length 75.4 × Height 52.6 mm |
Matching Accessories

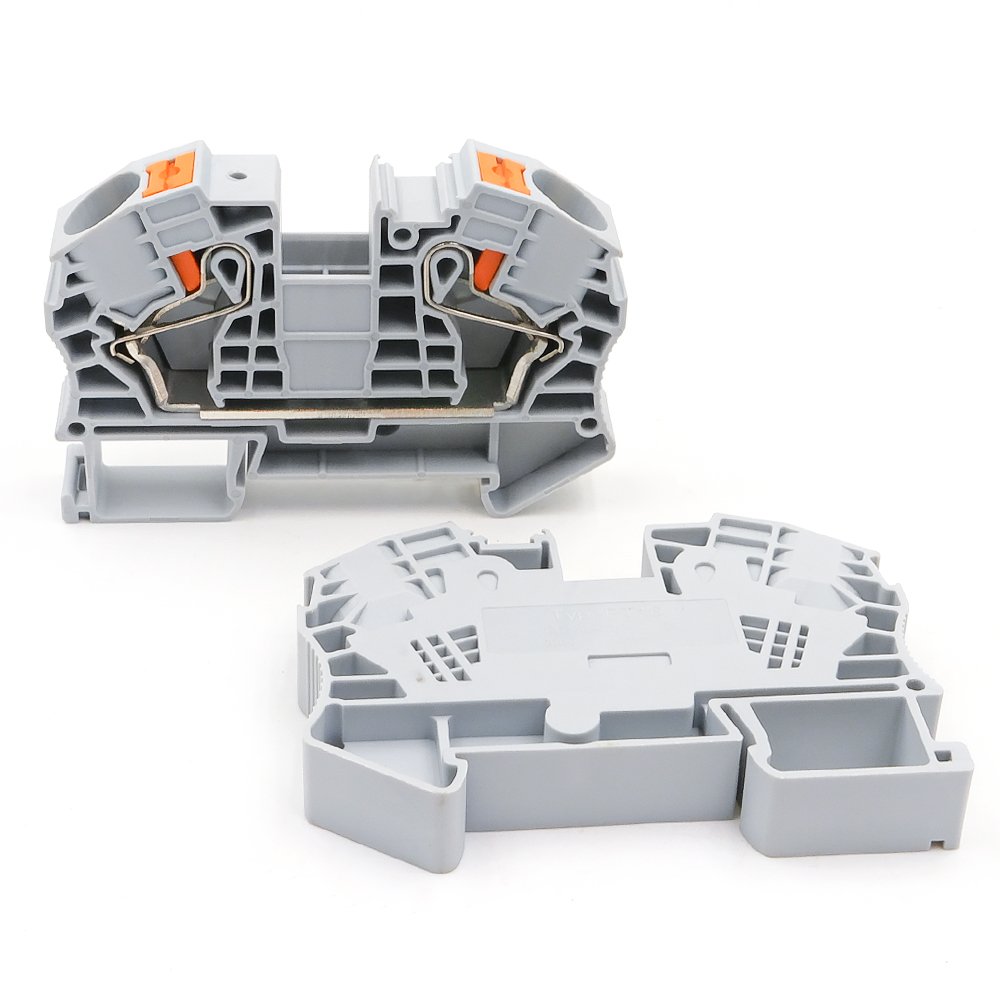

- End cover: D-PT 16
Request a Quote
Send your conductor size, quantity and end-cover requirements. For replacement orders, include a photo of the existing terminal and its rail profile.

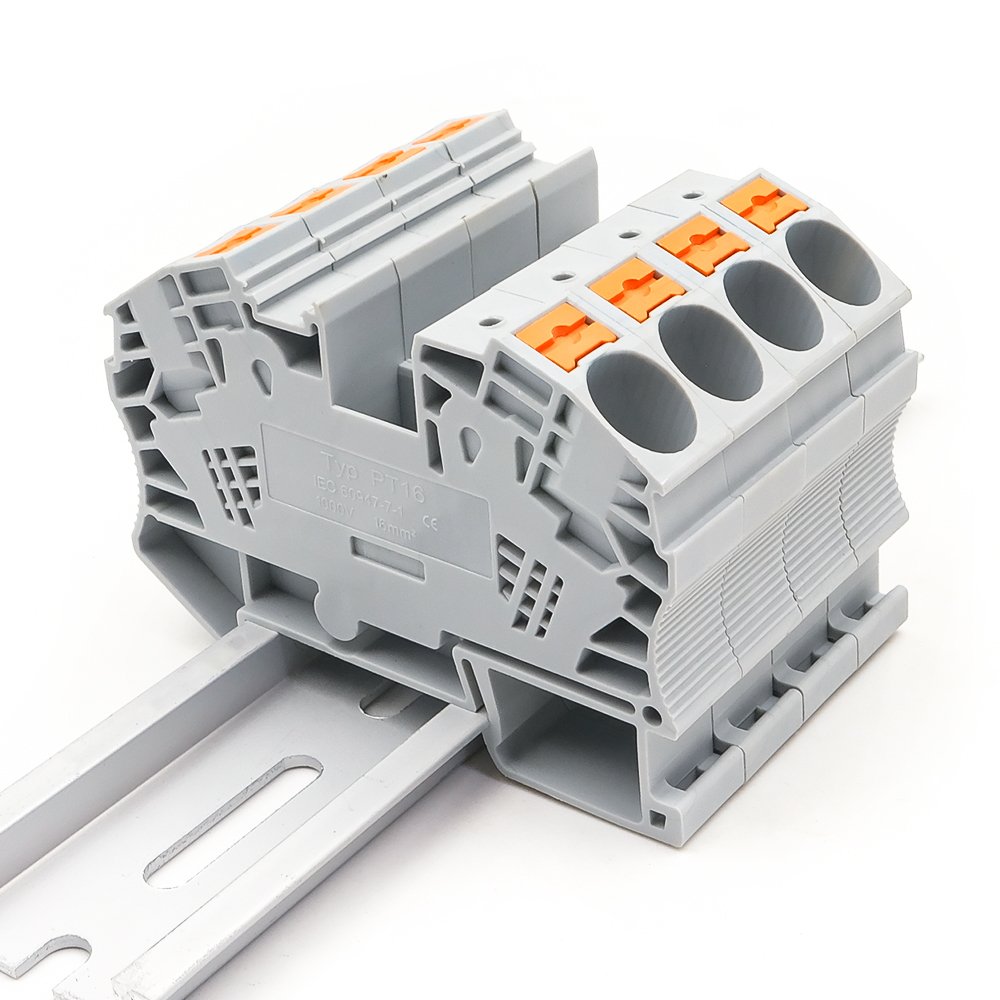

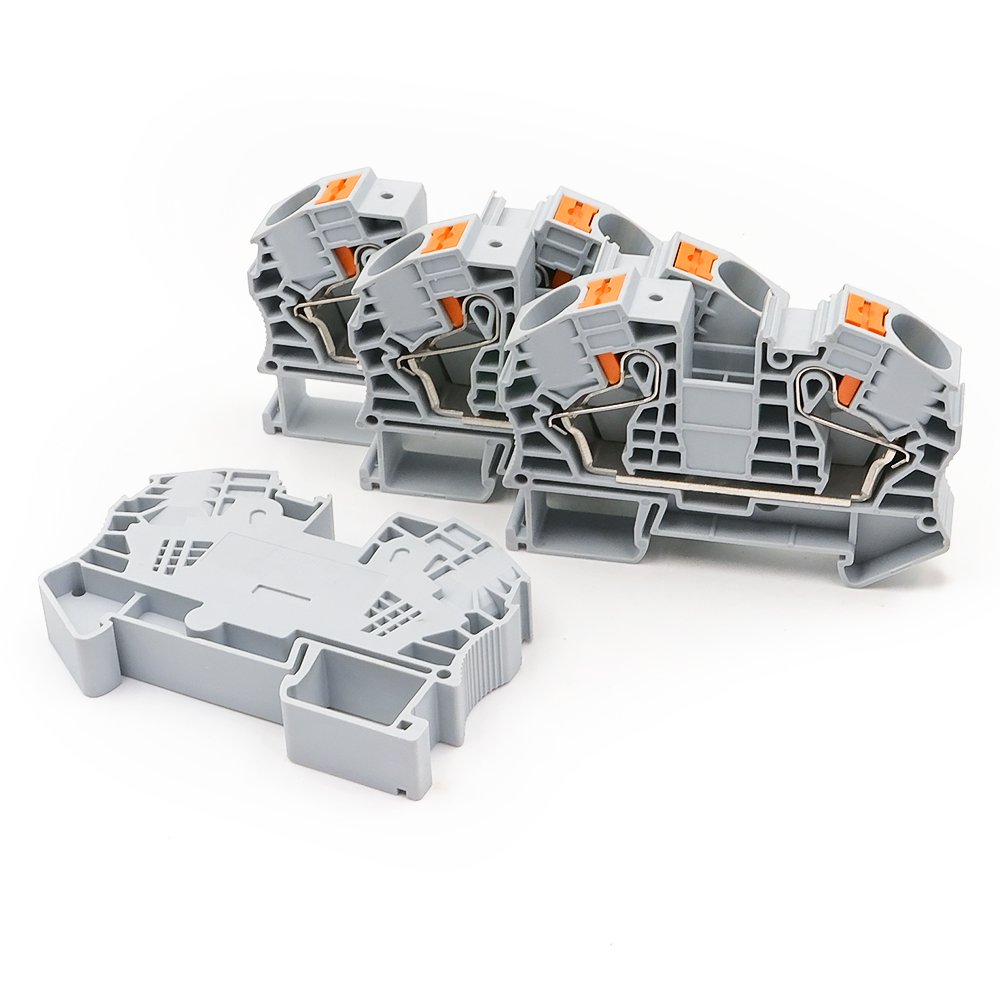

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
