Description

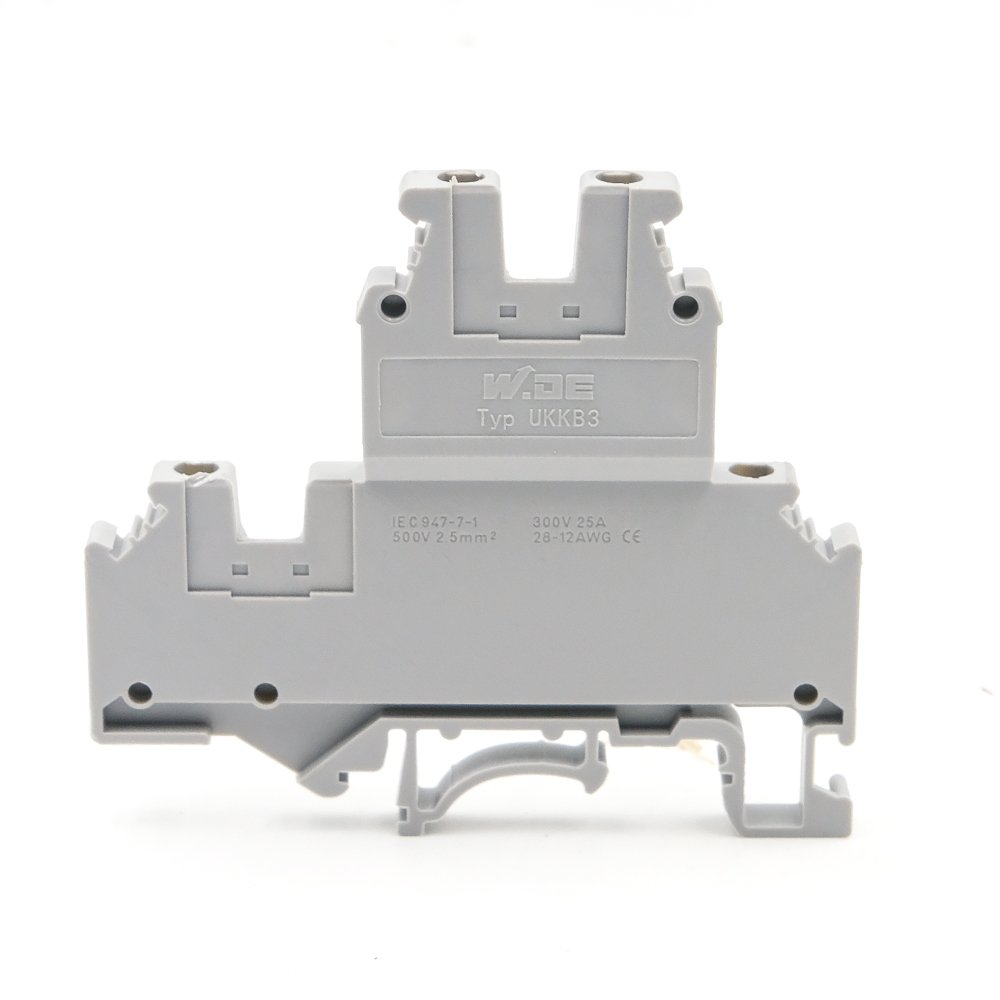

The UKKB 3 has an offset double-level body, with an extended lower section and a raised upper connection level. It measures 68 mm long while maintaining a 5.2 mm terminal thickness.
This layout differs from the shorter UKK 3. Check the body length, cover and bridge references when matching an existing double-level assembly.
Specifications
| Model | UKKB 3 |
|---|---|
| Terminal type | Offset double-level terminal block |
| Connection | Screw connection |
| Mounting | DIN rail |
| Rated voltage | 500 V |
| Rated current | 32 A |
| Solid conductor cross-section | 0.2–4 mm² |
| Flexible conductor cross-section | 0.2–2.5 mm² |
| Dimensions | Thickness 5.2 × Length 68 × Height 62 mm |
Matching Accessories
- End cover: D-UKKB 3/5
- Fixed bridge: FBI 10-5E
- Insertion bridge: EB 10-5
- Marker strip: ZB5
Request a Quote
Specify UKKB 3, the quantity and required accessories. Please include a photo or terminal layout if you are matching an existing row.

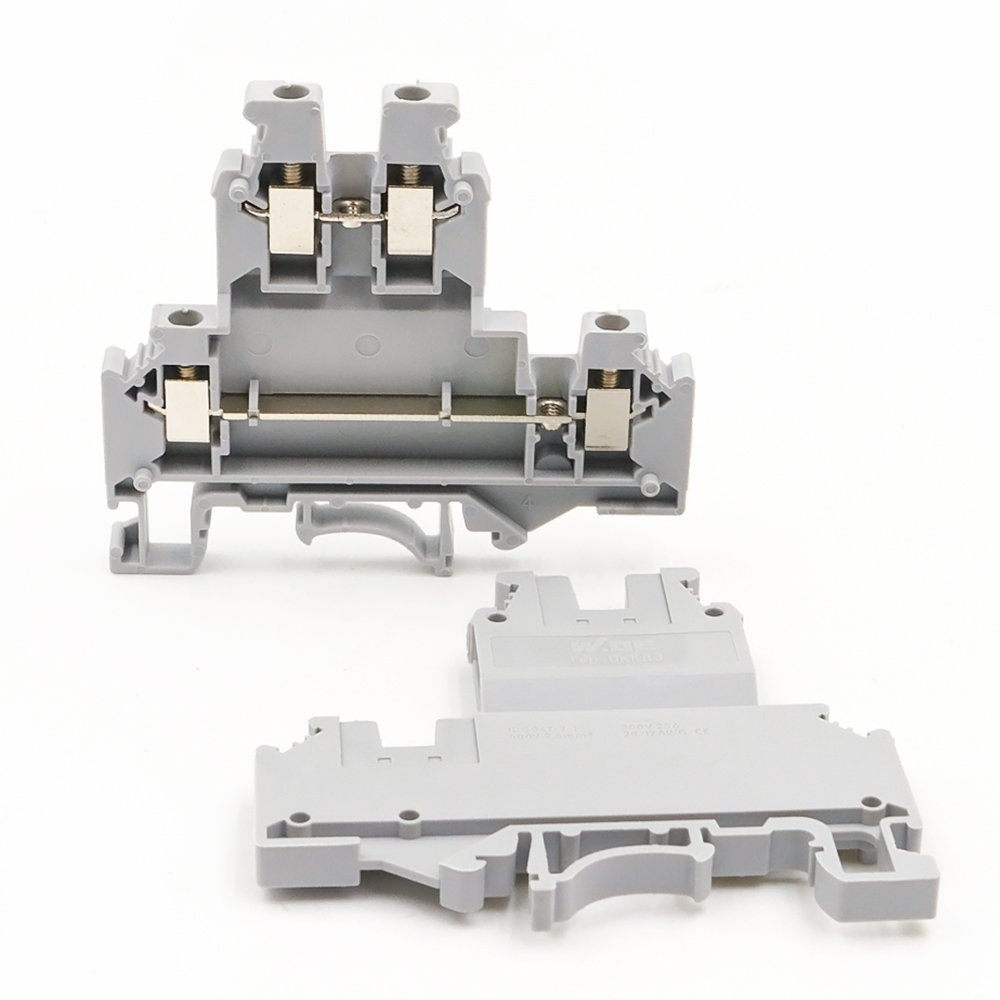

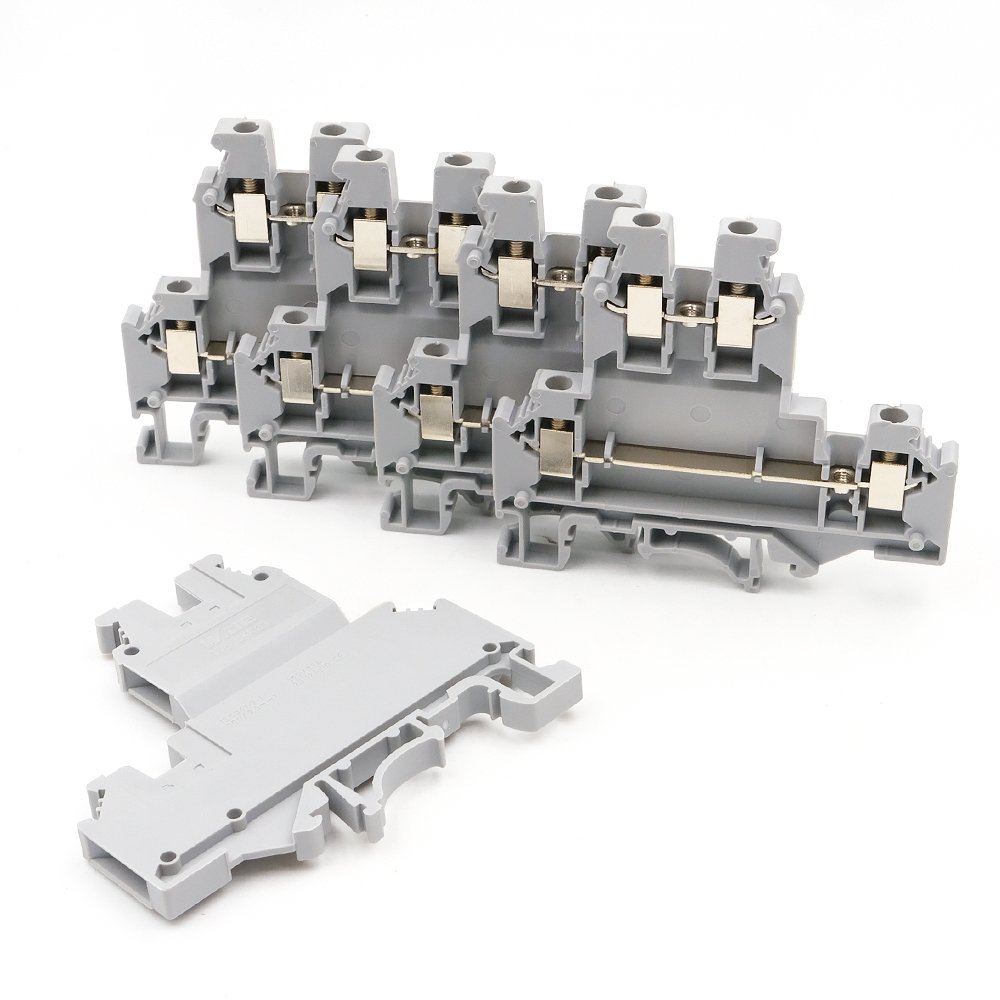

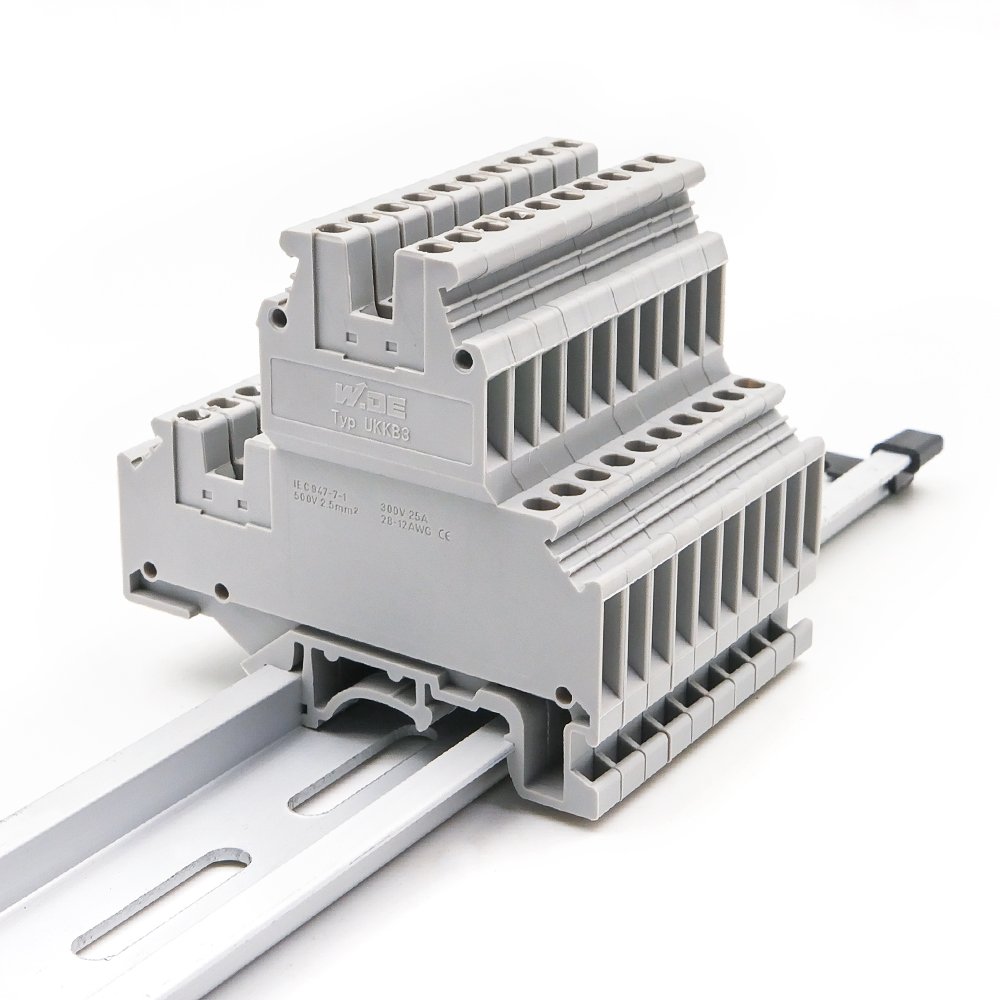

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
