Description

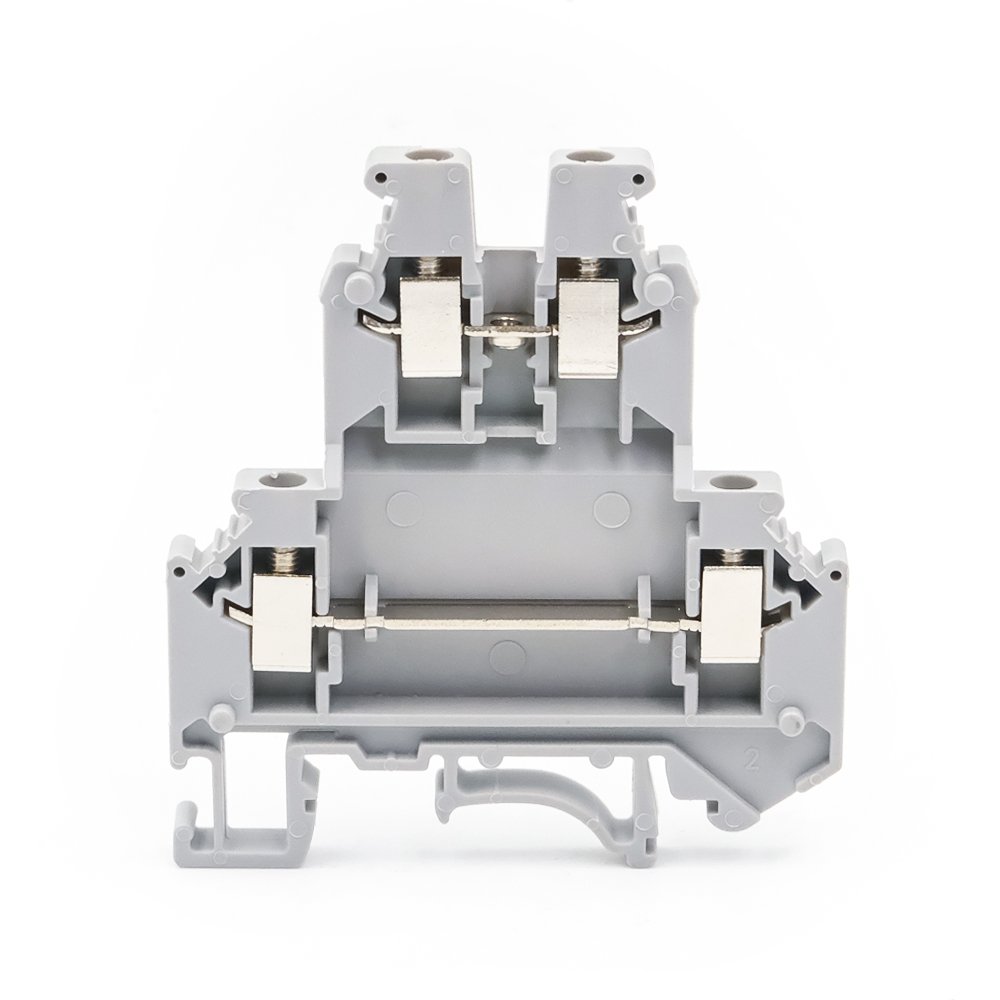

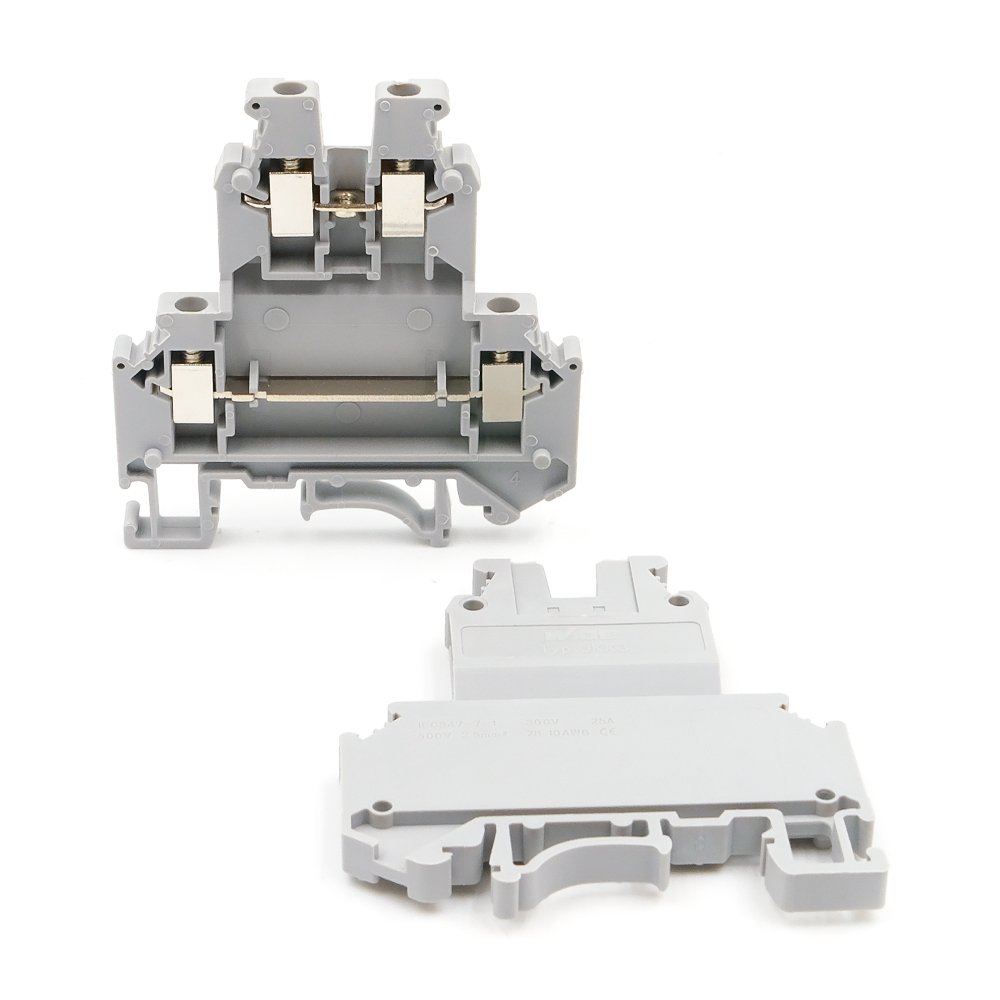

The UKK 3 places two connection levels in a terminal body just 5.2 mm thick. The stepped layout brings the upper and lower screw connections into view while keeping the terminal row narrow.
Allow for its 62 mm height when planning wiring clearance above the rail. It accepts solid conductors up to 4 mm² and flexible conductors up to 2.5 mm².
Specifications
| Model | UKK 3 |
|---|---|
| Terminal type | Double-level terminal block |
| Connection | Screw connection |
| Mounting | DIN rail |
| Rated voltage | 500 V |
| Rated current | 32 A |
| Solid conductor cross-section | 0.2–4 mm² |
| Flexible conductor cross-section | 0.2–2.5 mm² |
| Dimensions | Thickness 5.2 × Length 57 × Height 62 mm |
Matching Accessories
- End cover: D-UKK 3/5
- Fixed bridge: FBI 10-5
- Insertion bridge: EB 10-5
- Marker strip: ZB5
Request a Quote
Specify the quantity, end covers and any bridges or markers required. If you need bridging on either level, include your terminal layout so we can check the accessory arrangement.

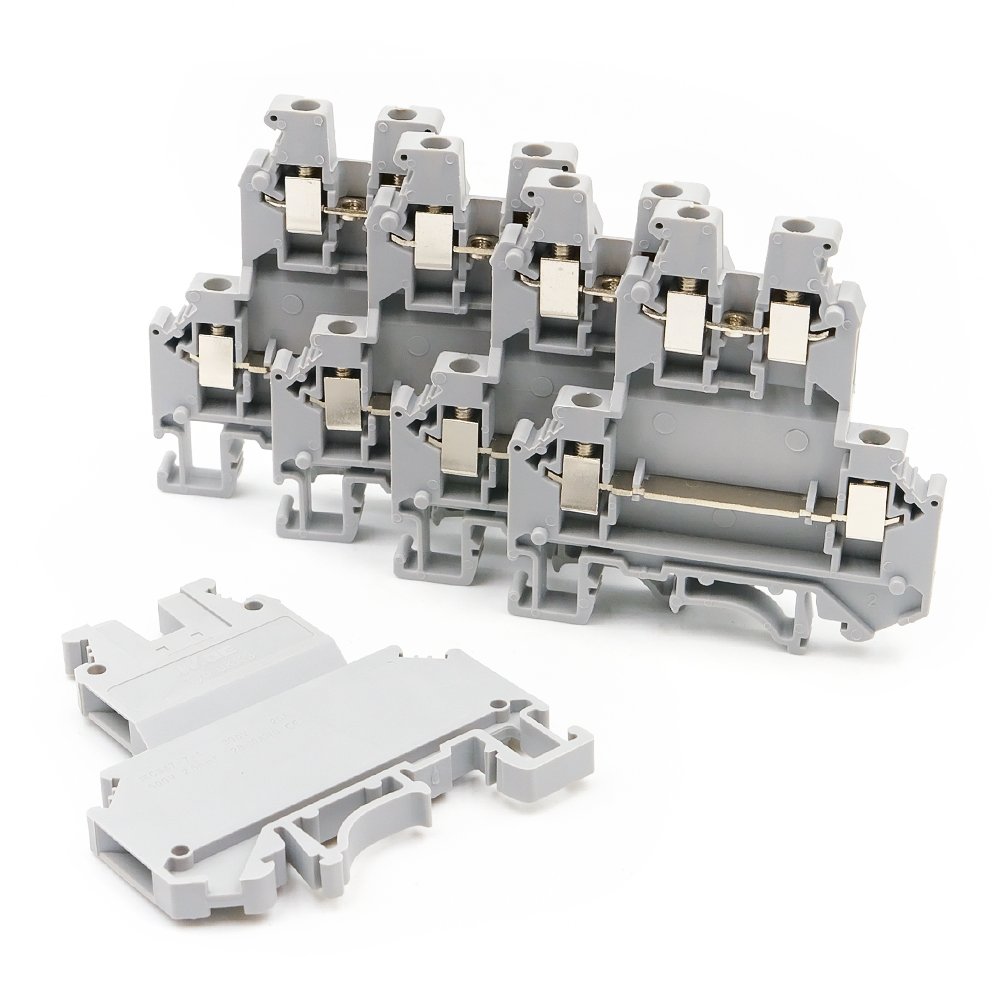

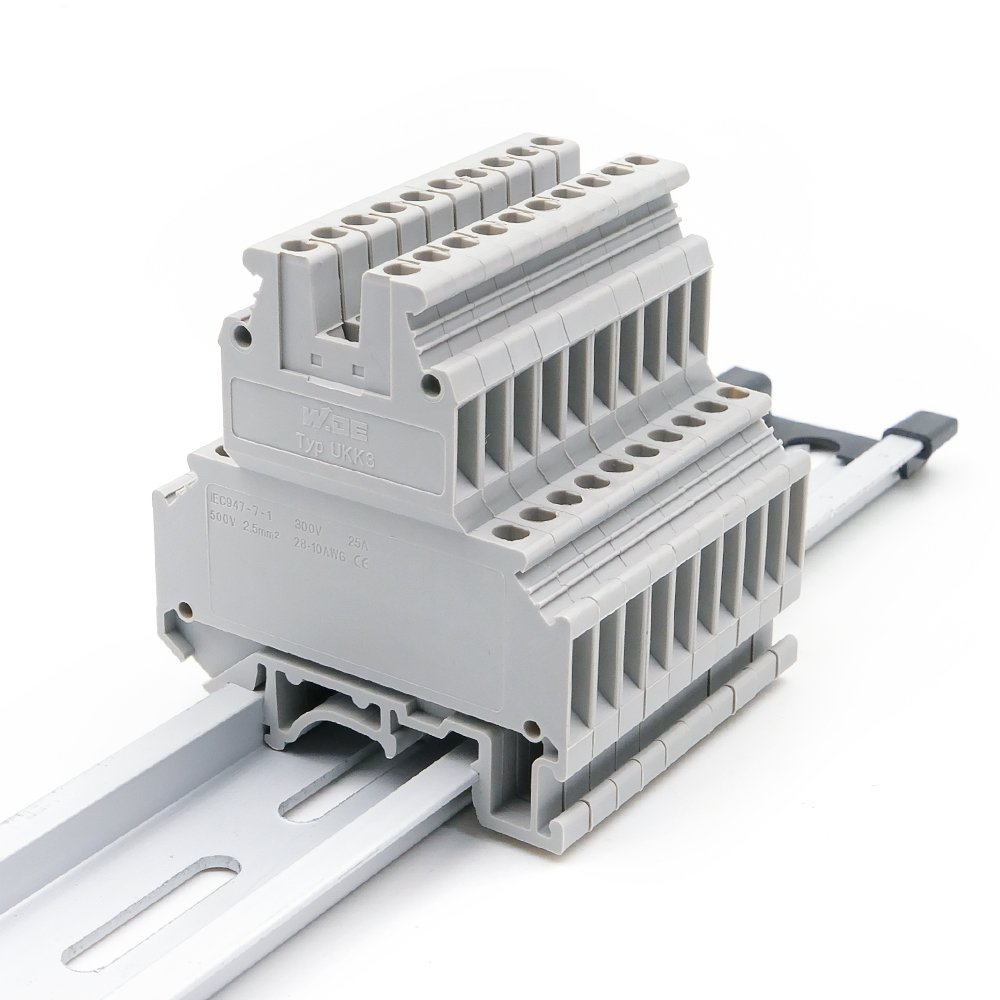

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
