Description

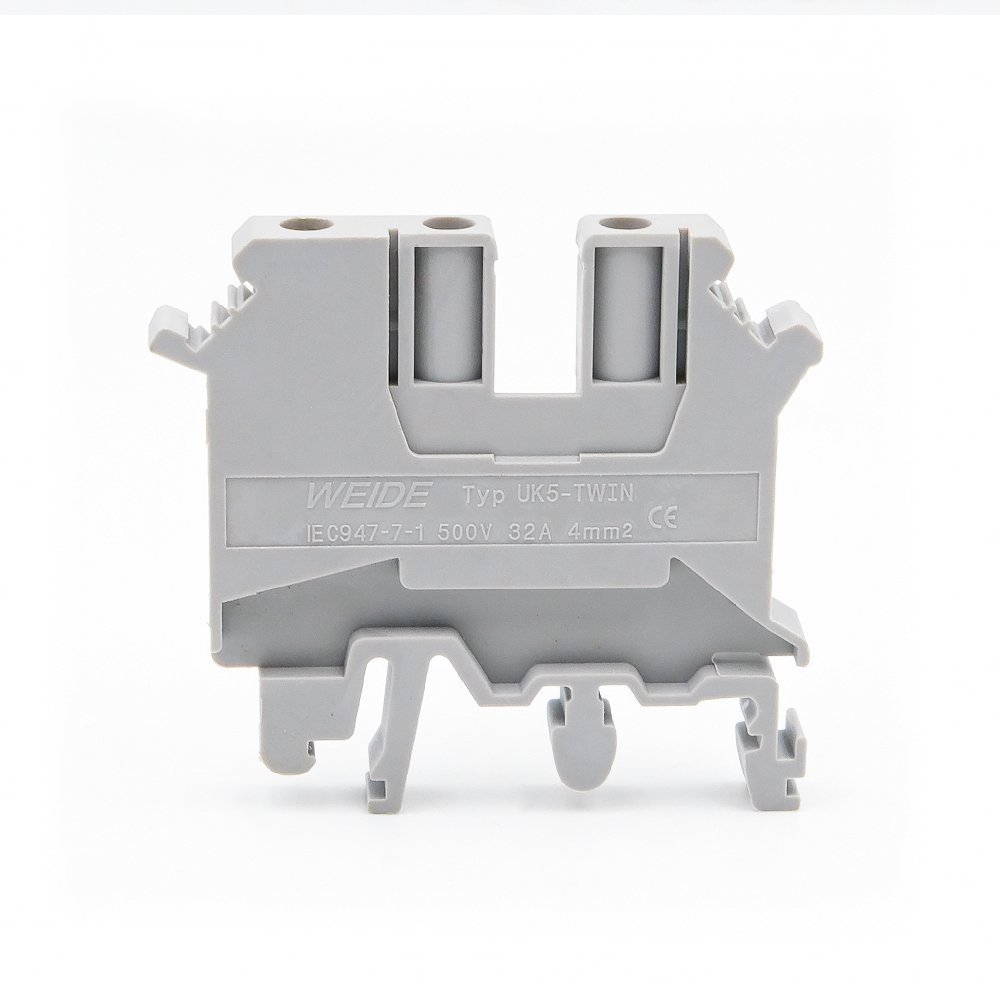

The UK 5-TWIN adds a third screw connection point to a single-level terminal body. Its asymmetric layout has one connection position on one side and two on the other.
The body is 50.5 mm long and 6.2 mm thick. Specify the TWIN version and its matching end cover when you need this three-connection layout.
Specifications
| Model | UK 5-TWIN |
|---|---|
| Terminal type | Three-connection terminal block |
| Connection | Screw connection |
| Mounting | DIN rail |
| Rated voltage | 500 V |
| Rated current | 32 A |
| Solid conductor cross-section | 0.2–4 mm² |
| Flexible conductor cross-section | 0.2–4 mm² |
| Dimensions | Thickness 6.2 × Length 50.5 × Height 46.2 mm |
Matching Accessories

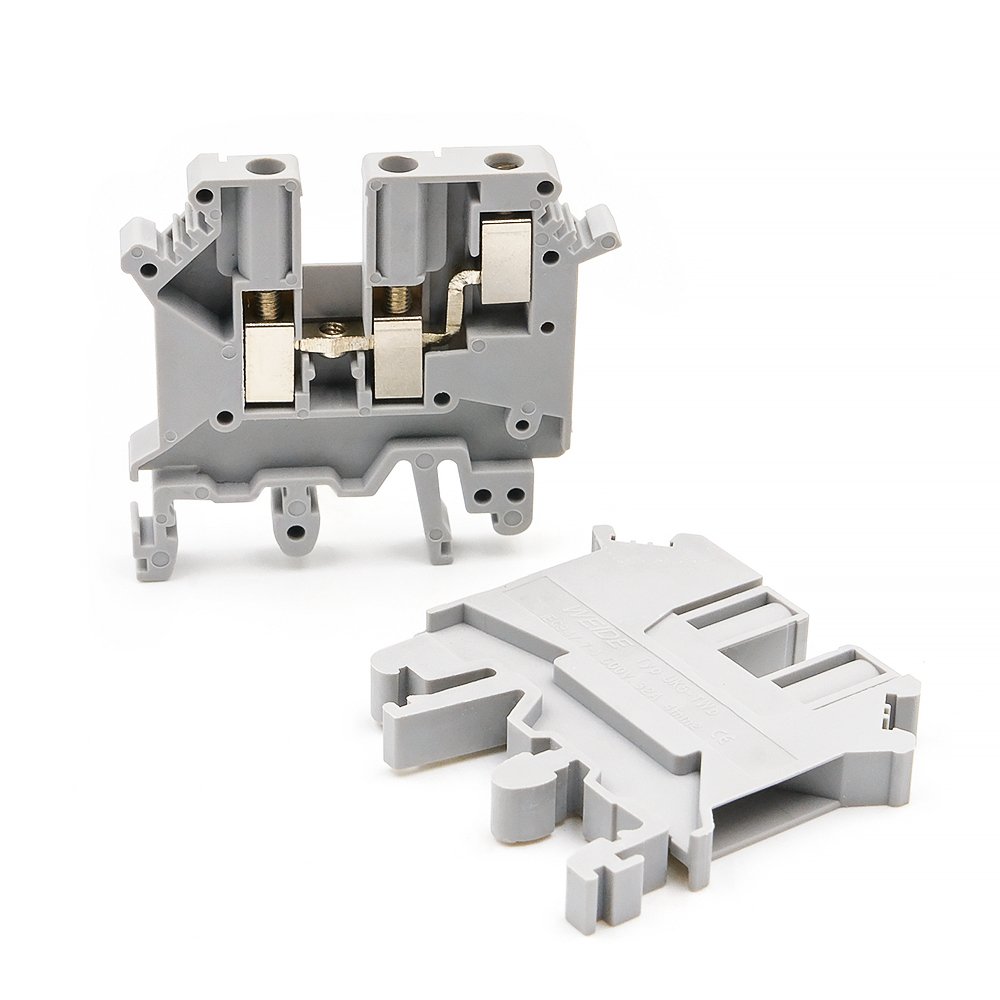

- End cover: D-UK 5-TWIN
- Fixed bridge: FBI 10-6
- Insertion bridge: EB 10-6
- Marker strip: ZB6
Request a Quote
Specify UK 5-TWIN, the quantity and any accessories. Include your connection layout if you need help matching the terminal arrangement.

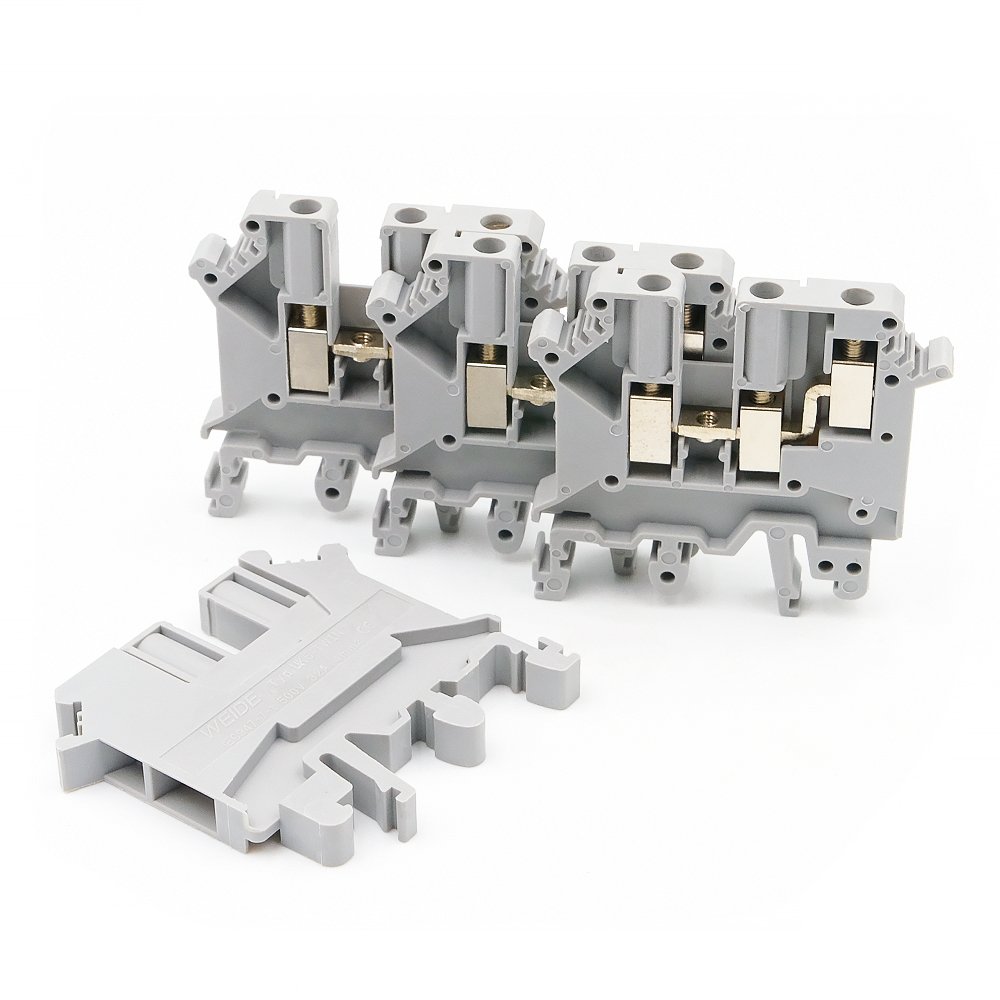

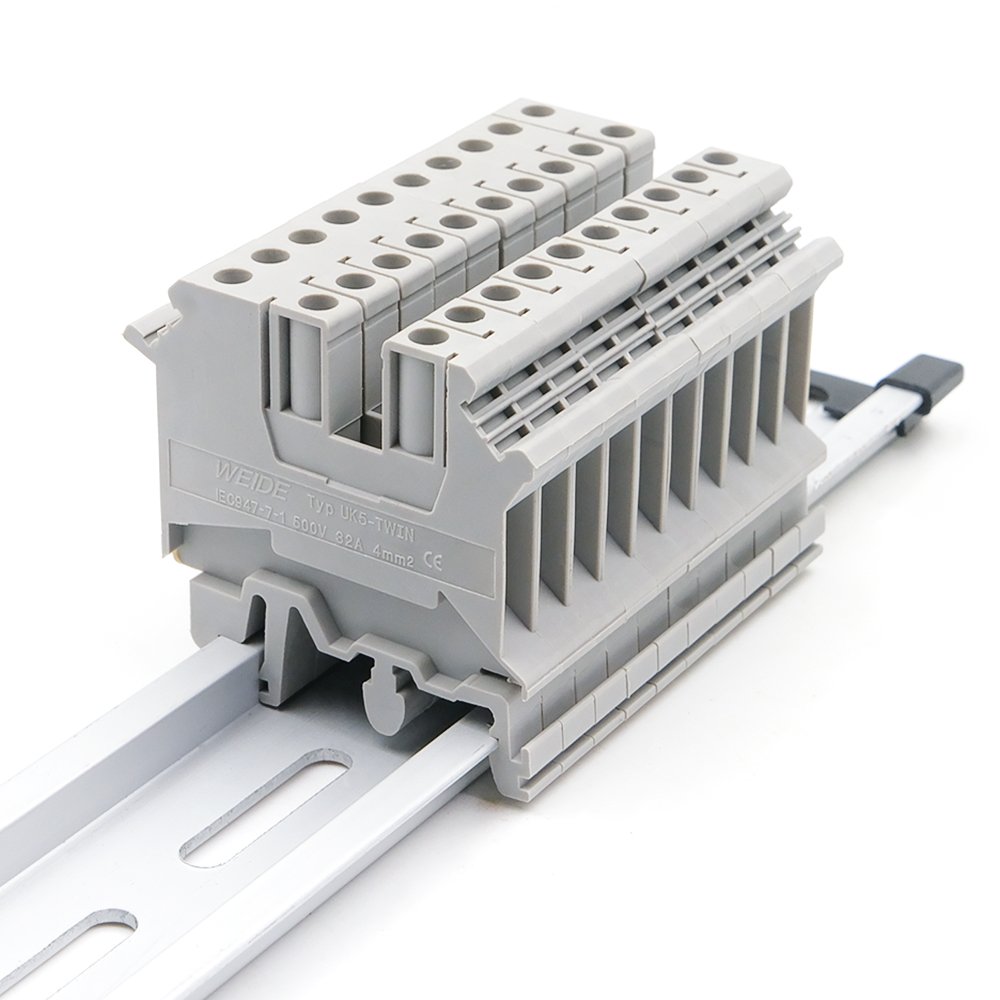

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
