Description

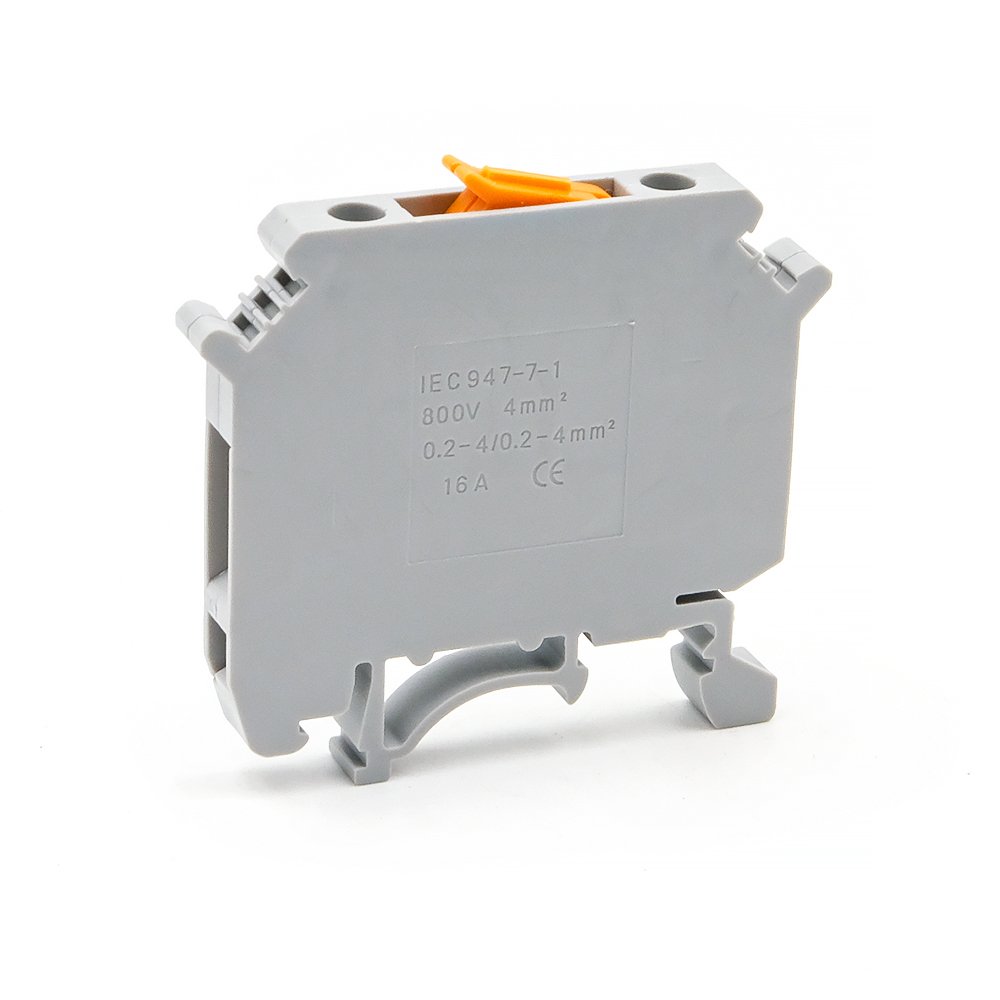

The UK 5-MTK P/P has an orange disconnect element at the top of the terminal body. This distinguishes it from the fixed feed-through UK terminals in the range.
Its listed current rating is 16 A, with a conductor range of 0.2–4 mm² for both solid and flexible wire. Choose it by its disconnect function and rating, rather than by the “5” designation alone.
Specifications
| Model | UK 5-MTK P/P |
|---|---|
| Terminal type | Disconnect terminal block |
| Connection | Screw connection |
| Mounting | DIN rail |
| Rated voltage | 800 V |
| Rated current | 16 A |
| Solid conductor cross-section | 0.2–4 mm² |
| Flexible conductor cross-section | 0.2–4 mm² |
| Dimensions | Thickness 6.2 × Length 51 × Height 46.5 mm |
Matching Accessories
- Insertion bridge: EB 10-6
- Marker strip: ZB6
Request a Quote
Send the quantity, circuit requirements and any accessories required. For replacement orders, include a photo showing the existing disconnect element and terminal markings.

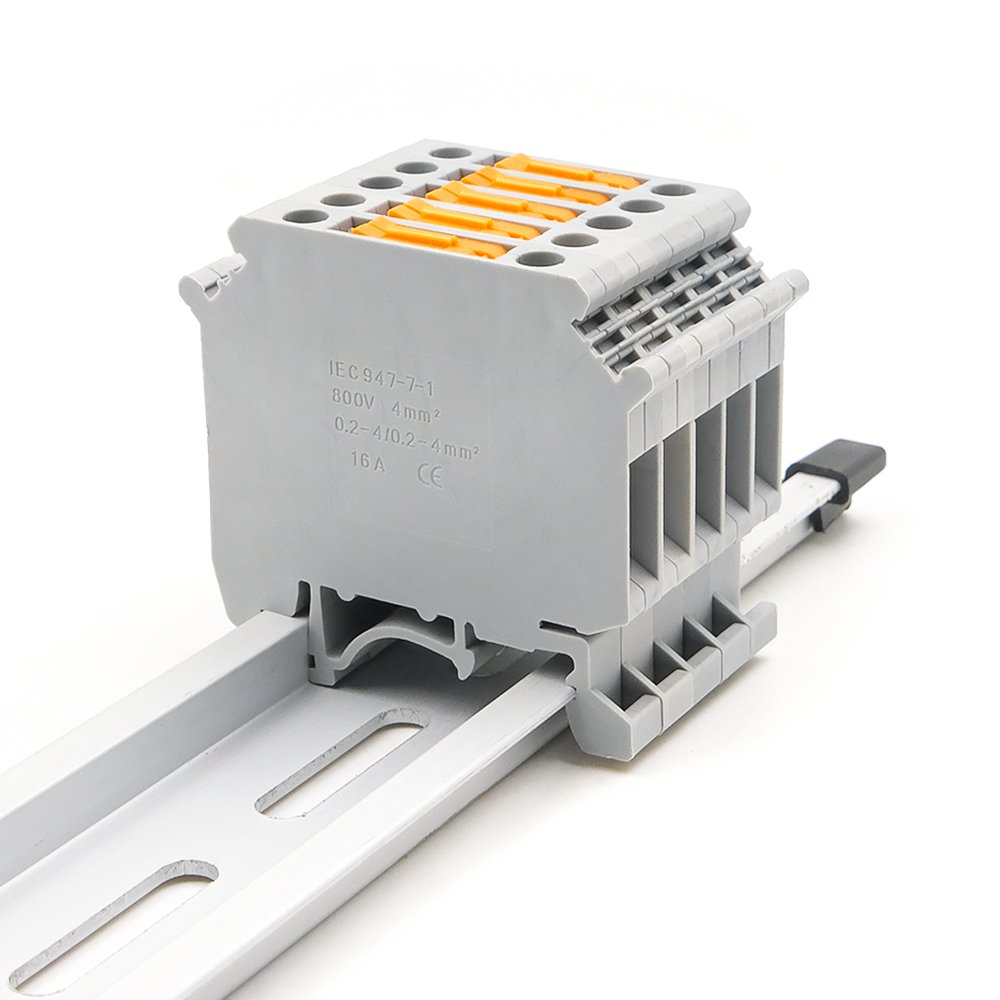

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
