UK 35 Screw Connection DIN Rail Terminal Block

UK 35 Screw Connection DIN Rail Terminal Block - Image 2

UK 35 Screw Connection DIN Rail Terminal Block - Image 3

UK 35 Screw Connection DIN Rail Terminal Block - Image 4

UK 35 Screw Connection DIN Rail Terminal Block

UK 35 screw connection DIN rail terminal block, rated 150 A. Available in grey and blue, with matching bridges and marker strips. Contact us with your colour, quantity and operating voltage requirements for a quote.

Request a Quote

Category: DIN Rail Terminal Blocks

Description
Reviews (0)

Description

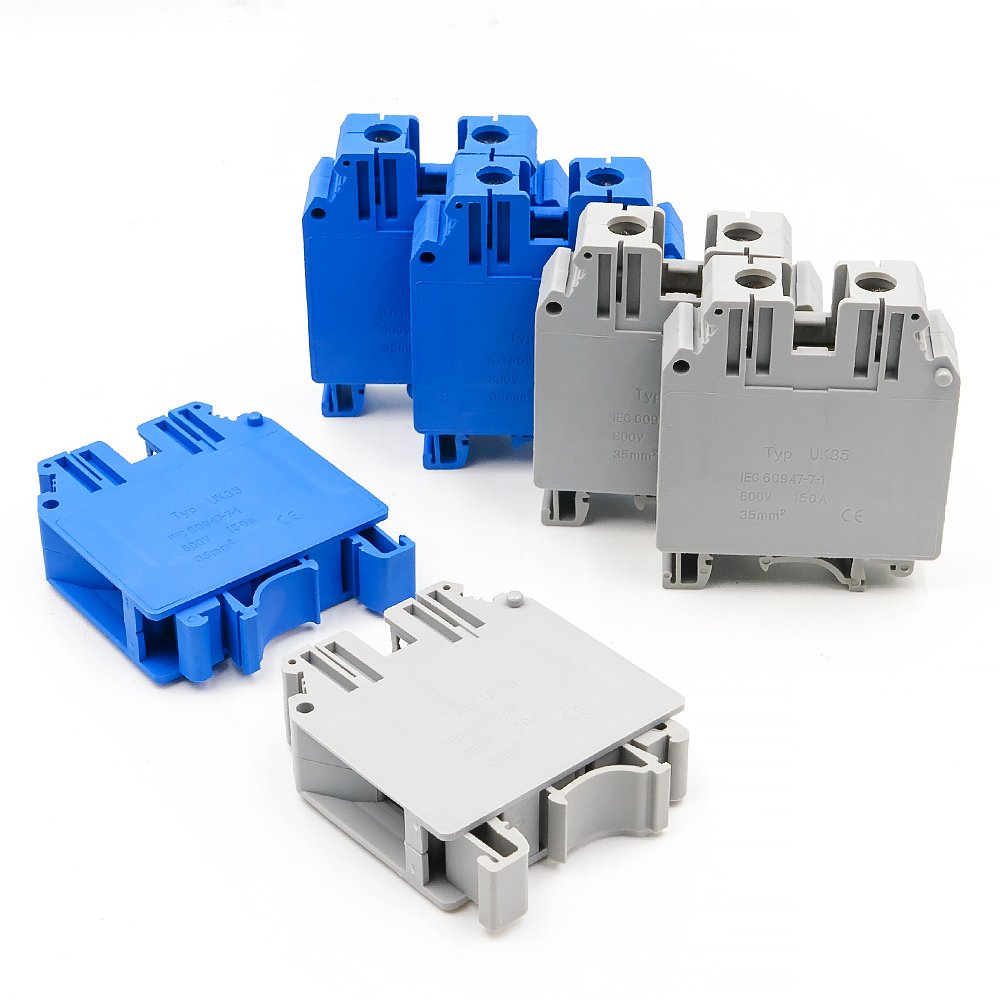

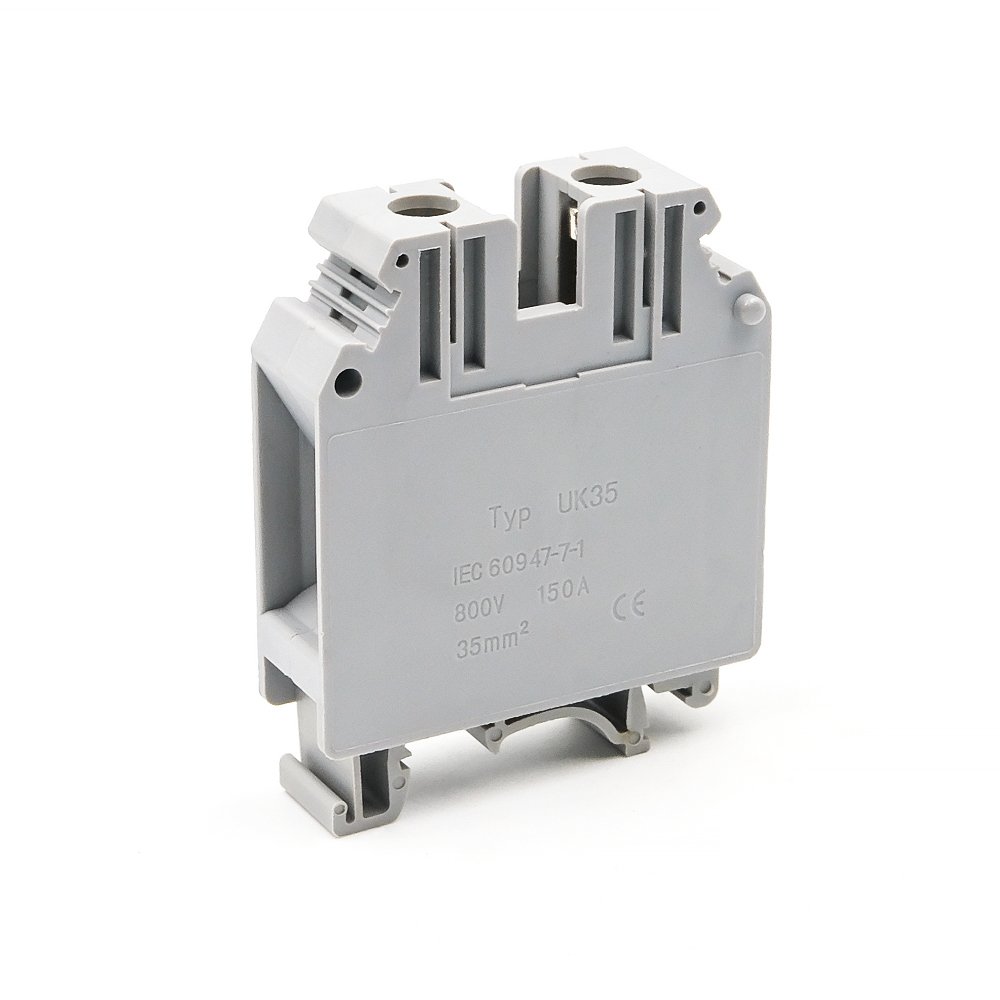

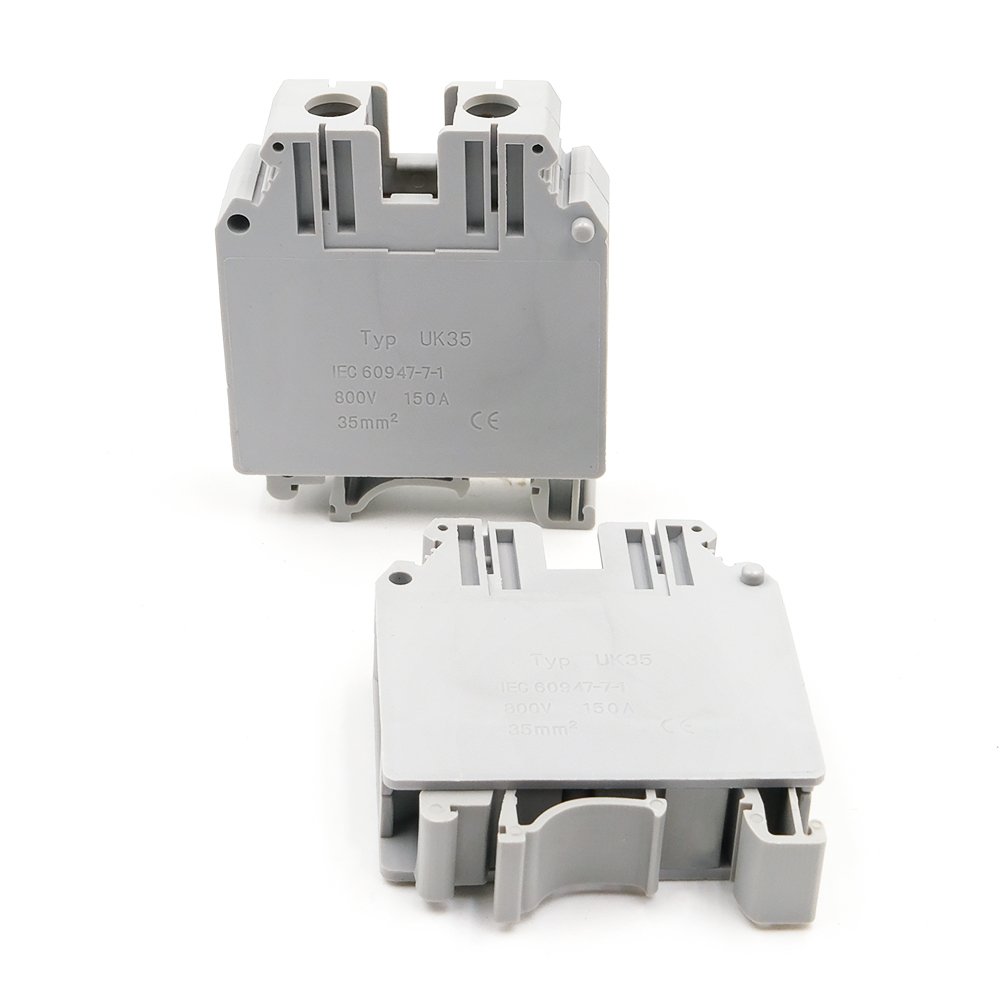

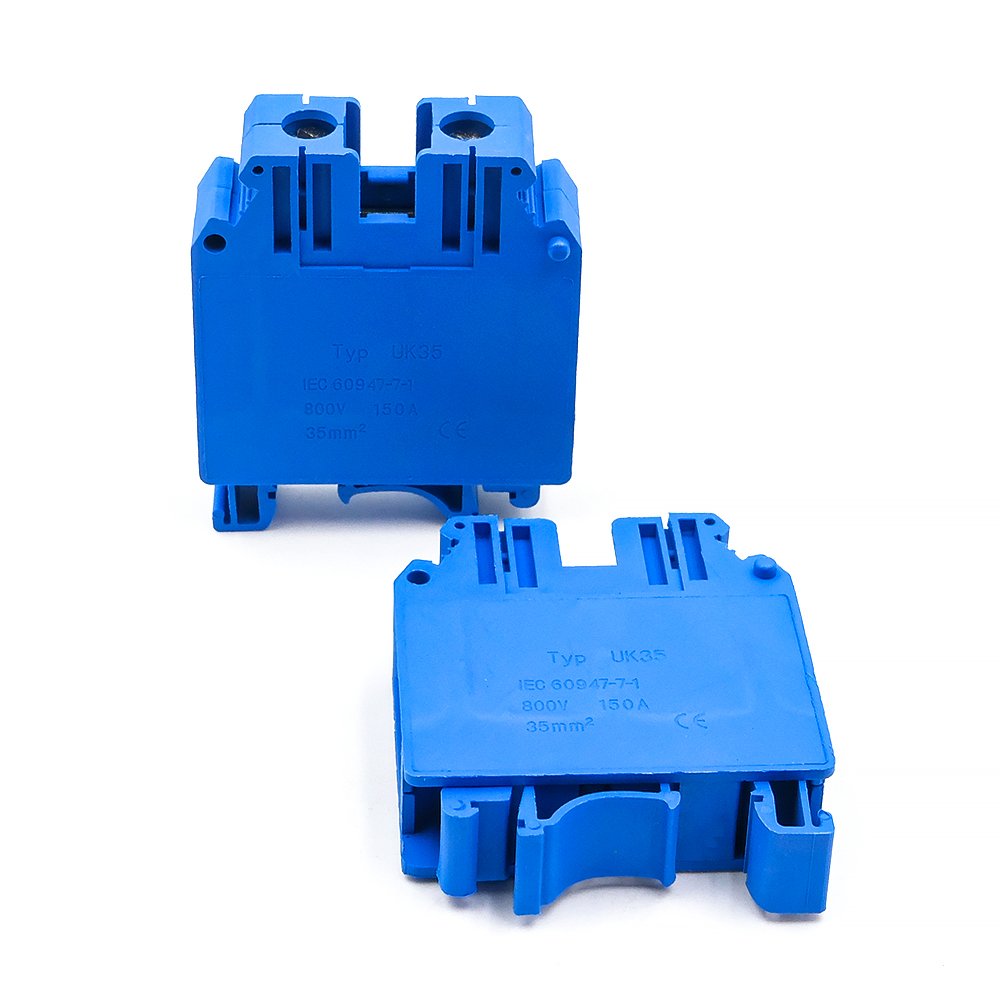

UK 35 screw connection terminal blocks for DIN rail panel wiring. Available in grey and blue.

Specifications

Model	UK 35
Connection	Screw connection
Mounting	DIN rail
Rated current	150 A
Solid conductor cross-section	0.75–50 mm²
Flexible conductor cross-section	0.75–35 mm²
Dimensions	Thickness 15.2 × Length 51 × Height 62 mm
Colours	Grey / Blue

Matching Accessories

Fixed bridge: FBI 10-15
Insertion bridge: EB 10-15
Marker strip: ZB10

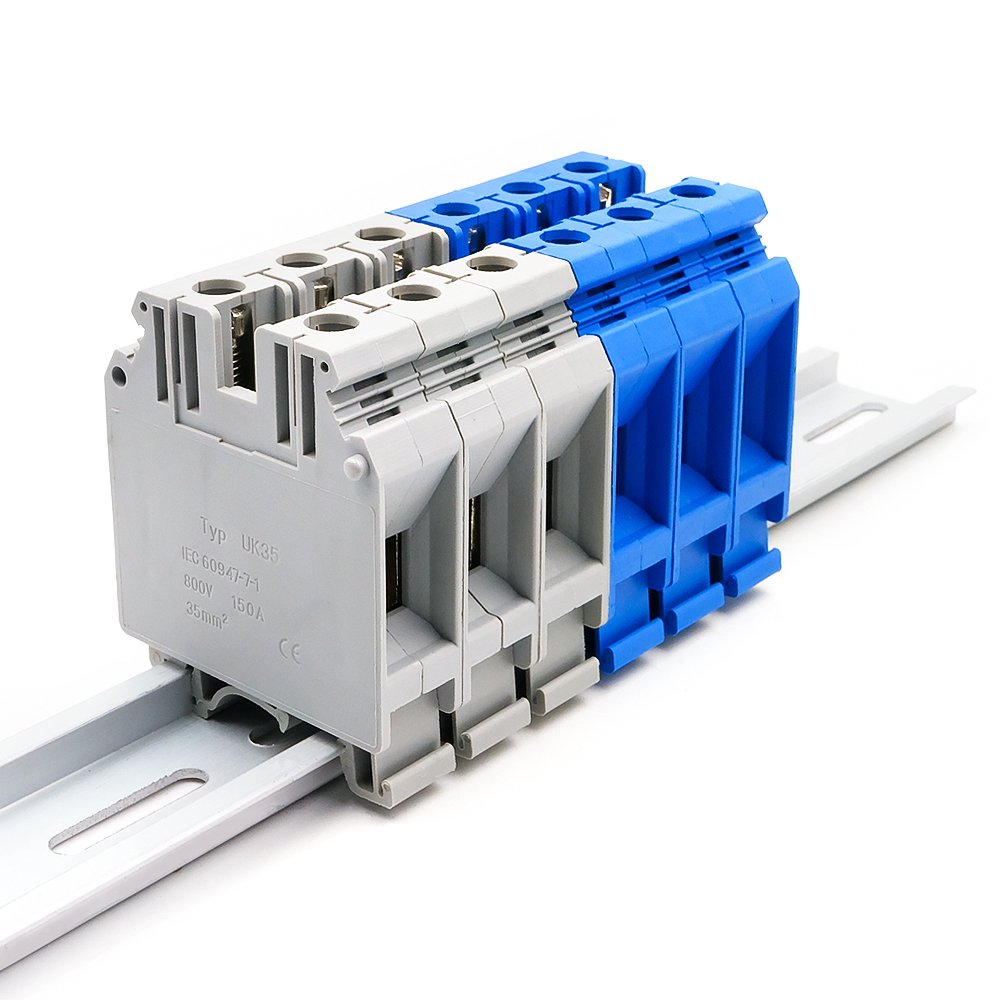

Photos include assembly examples. Please specify any accessories you need when requesting a quote.

Request a Quote

Send us your required colour, quantity, operating voltage and delivery country, along with any accessory requirements. We will confirm the specifications for your order.
