Description
UK 16 screw connection terminal blocks for DIN rail panel wiring. Available in grey and blue.
Specifications
| Model | UK 16 |
|---|---|
| Connection | Screw connection |
| Mounting | DIN rail |
| Rated voltage | 800 V |
| Rated current | 101 A |
| Solid conductor cross-section | 2.5–25 mm² |
| Flexible conductor cross-section | 4–16 mm² |
| Dimensions | Thickness 12.2 × Length 42.5 × Height 53 mm |
| Colours | Grey / Blue |
Matching Accessories
- End cover: D-UK 16
- Fixed bridge: FBI 10-12
- Insertion bridge: EB 10-12
- Marker strip: ZB10

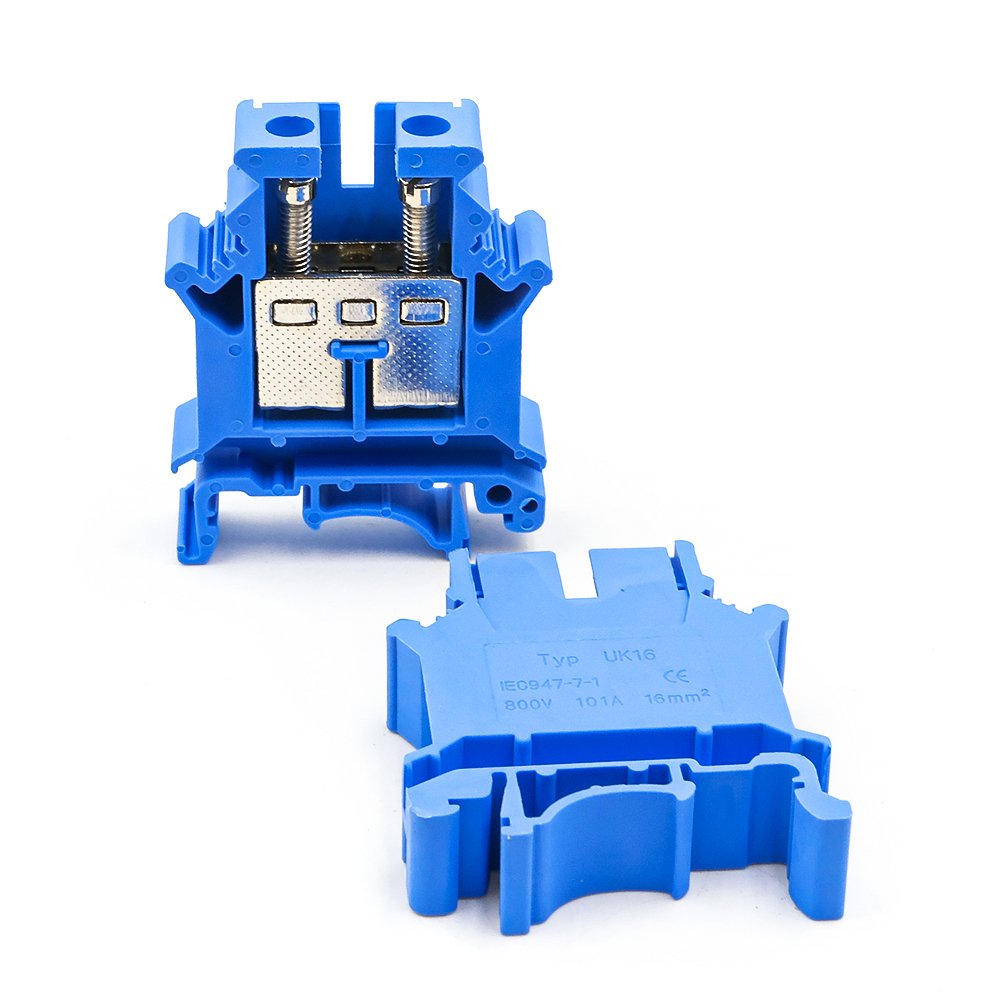

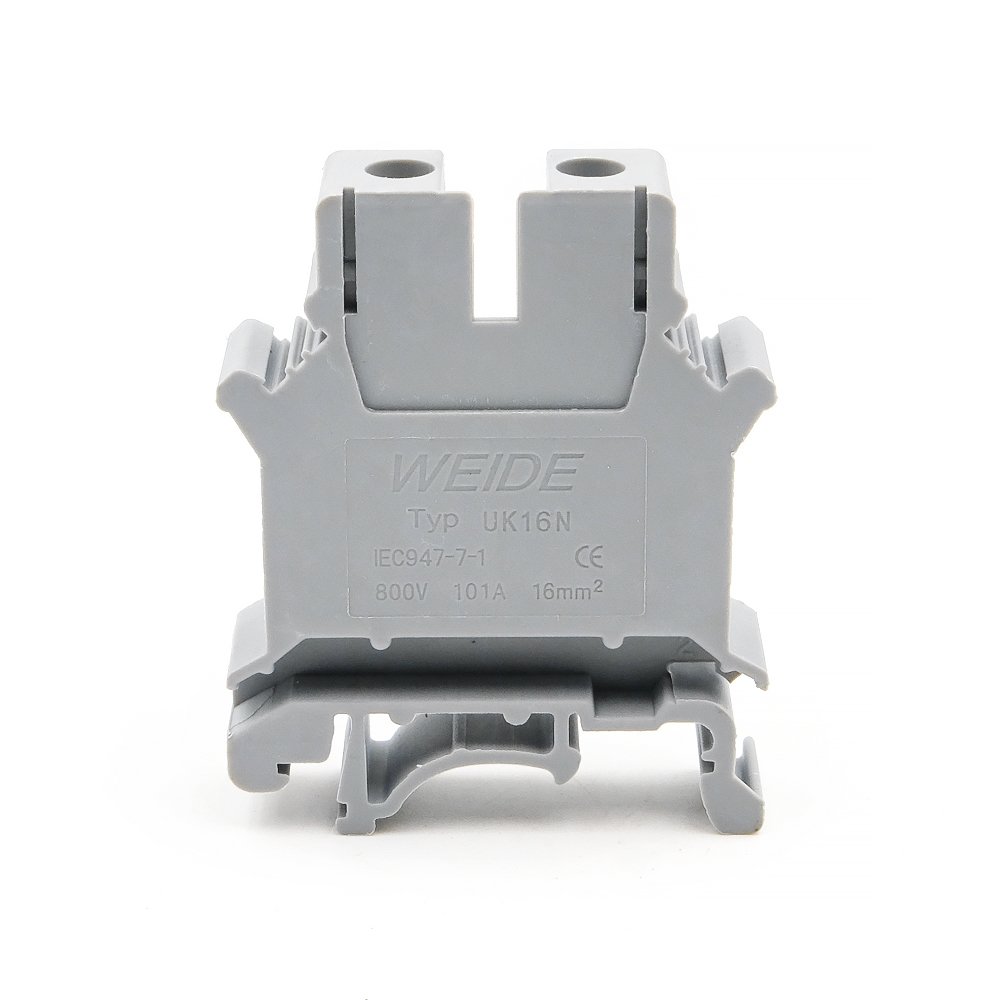

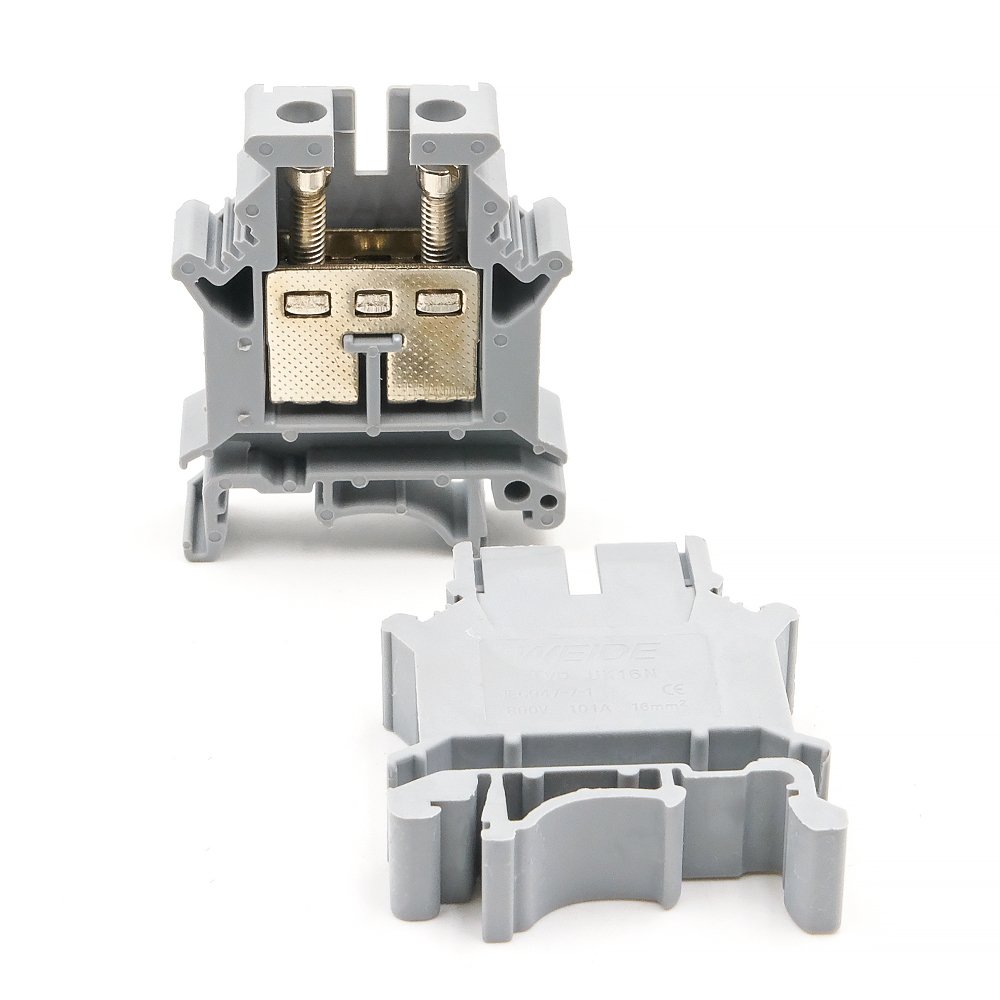

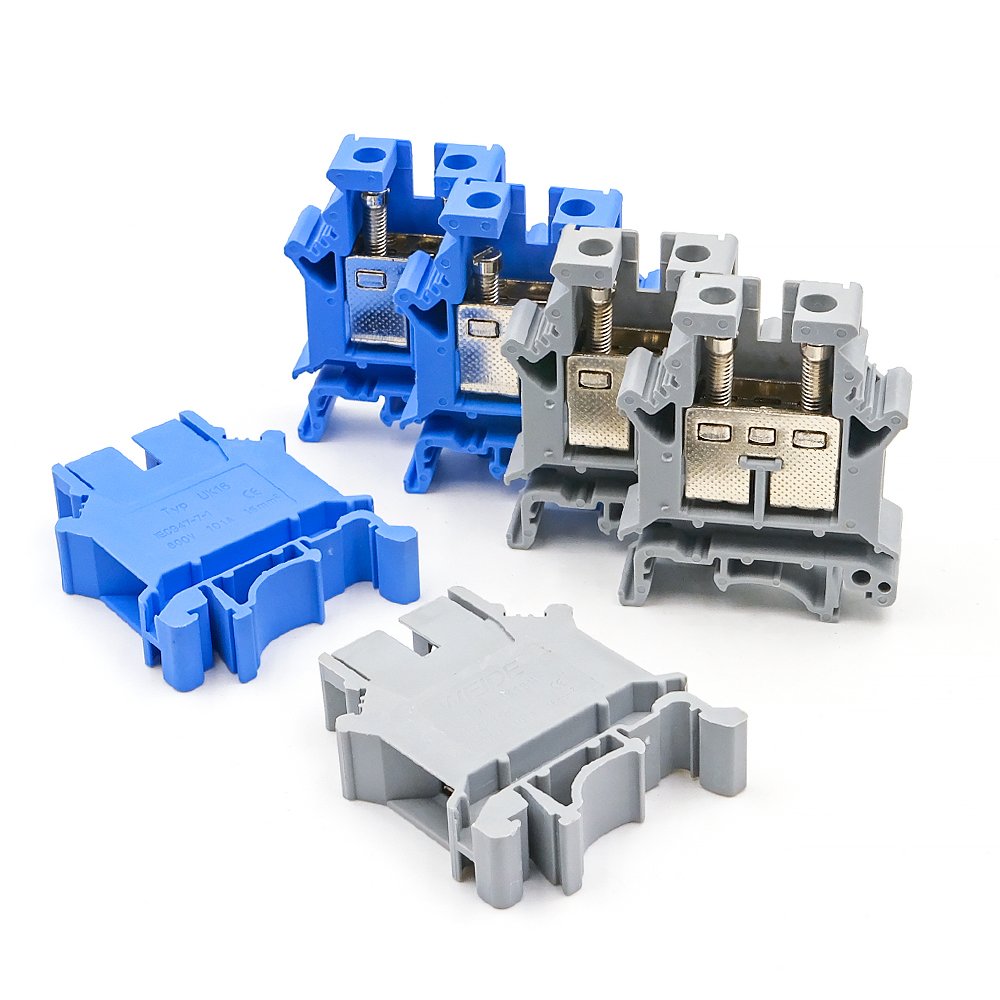

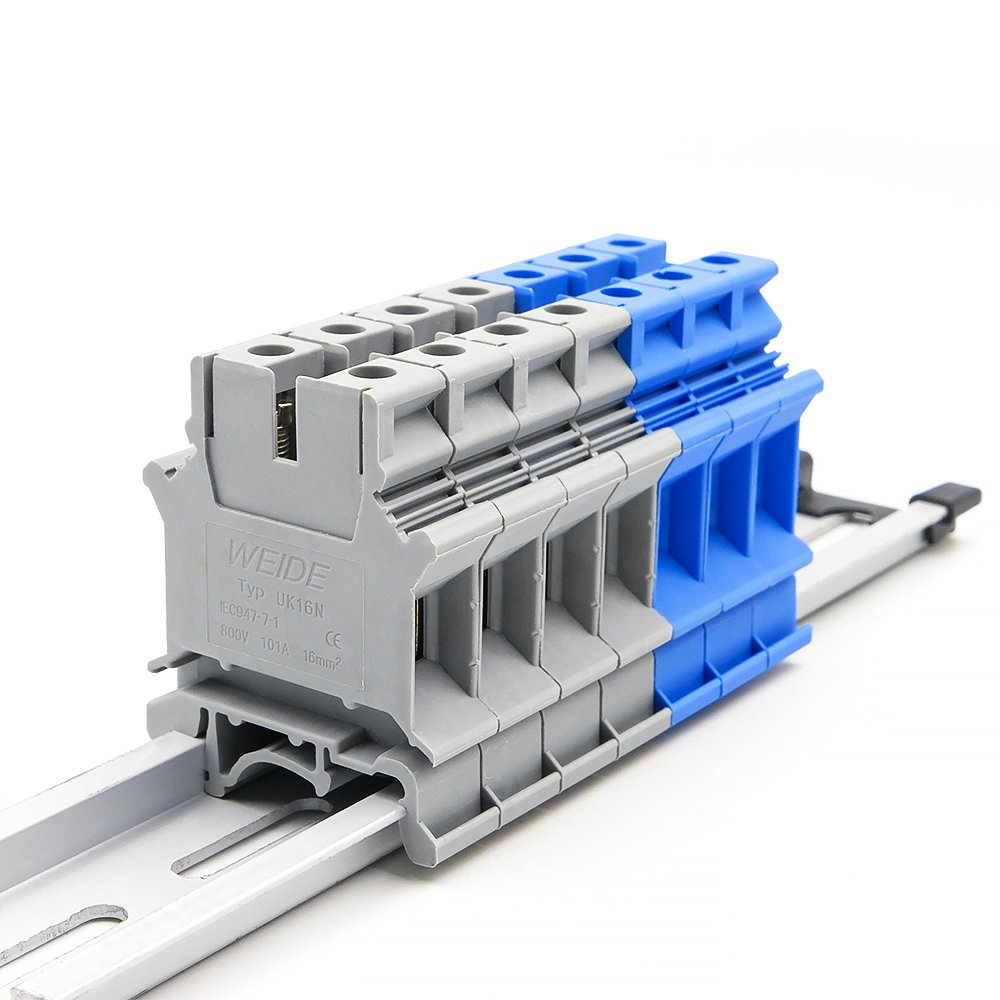

Photos include assembly examples. Please specify any accessories you need when requesting a quote.
Request a Quote
Send us your required colour, quantity and delivery country, along with any accessory requirements.
