UIK 35 Low-Profile Screw Connection DIN Rail Terminal Block

UIK 35 low-foot screw connection DIN rail terminal block, rated 800 V and 125 A. Accepts 0.75–35 mm² solid and flexible conductors. Dimensions: 15.2 mm thick × 56 mm long × 51 mm high. Uses FBI 10-15 bridges and ZB10 markers.

Request a Quote

Category: DIN Rail Terminal Blocks

Description
Reviews (0)

Description

The UIK 35 is a low-foot screw connection terminal block, rated 800 V and 125 A. It accepts both solid and flexible conductors from 0.75 to 35 mm².

This version measures 51 mm high and 56 mm long. When replacing a UK 35 high-foot terminal, check the mounting profile, conductor range and electrical ratings rather than selecting by the “35” designation alone.

Specifications

Model	UIK 35
Design	Low mounting foot
Connection	Screw connection
Mounting	DIN rail
Rated voltage	800 V
Rated current	125 A
Solid conductor cross-section	0.75–35 mm²
Flexible conductor cross-section	0.75–35 mm²
Dimensions	Thickness 15.2 × Length 56 × Height 51 mm
Colour shown	Grey

Matching Accessories

Fixed bridge: FBI 10-15
Marker strip: ZB10

Ordering

Specify UIK 35, the quantity and any bridges or markers required. For replacement orders, send a side-view photo of the existing terminal and the DIN rail details so we can check the mounting profile.

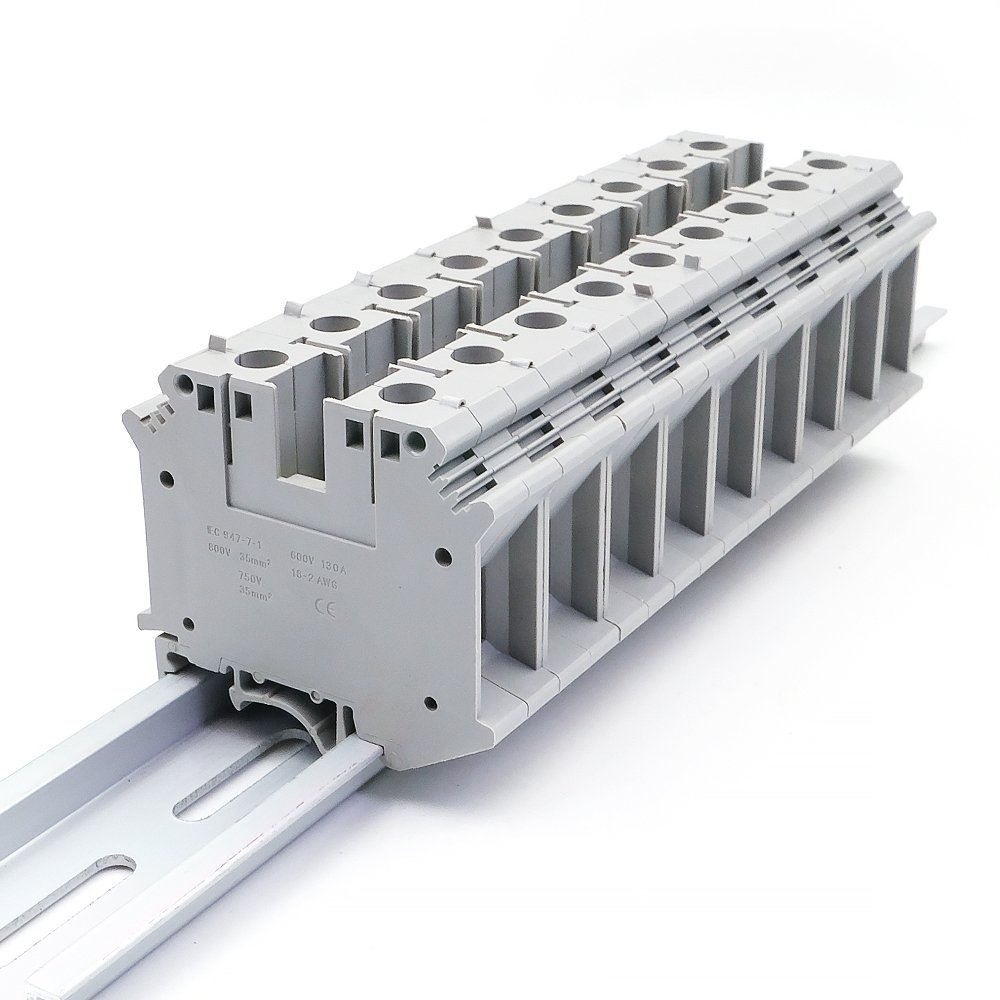

Rail assemblies in the photos are examples. Please list any rails or other accessories you need supplied.
