Description

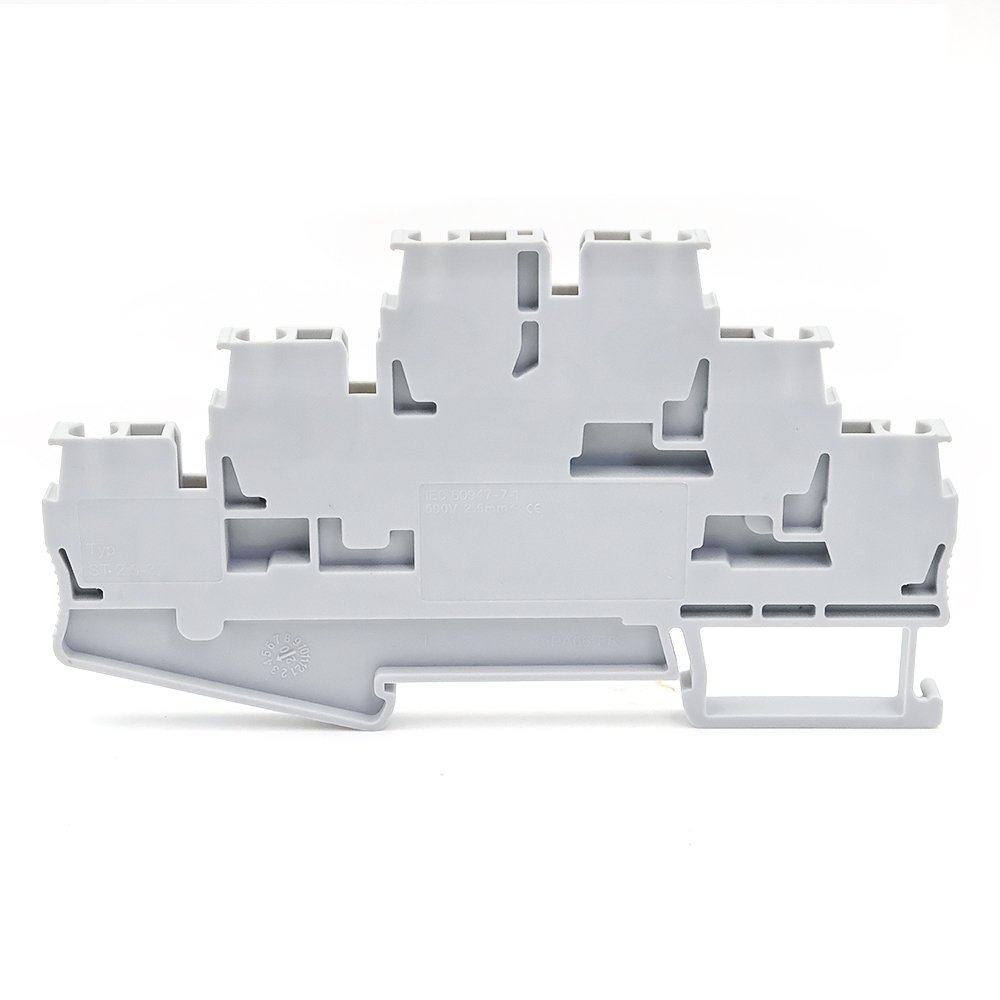

The ST 2.5-3L arranges six spring-clamp connection points across three stepped levels. The terminal remains 5.2 mm thick, with a body length of 99.5 mm.
Compared with the STTB 2.5 double-level version, it adds a third wiring level and increases the body height to 57 mm. Check the available clearance and the required level arrangement before ordering.
Specifications
| Model | ST 2.5-3L |
|---|---|
| Terminal type | Three-level terminal block |
| Connection | Spring-clamp connection |
| Mounting | DIN rail |
| Rated voltage | 500 V |
| Rated current | 28 A |
| Solid conductor cross-section | 0.2–4 mm² |
| Flexible conductor cross-section | 0.2–2.5 mm² |
| Dimensions | Thickness 5.2 × Length 99.5 × Height 57 mm |
Matching Accessories

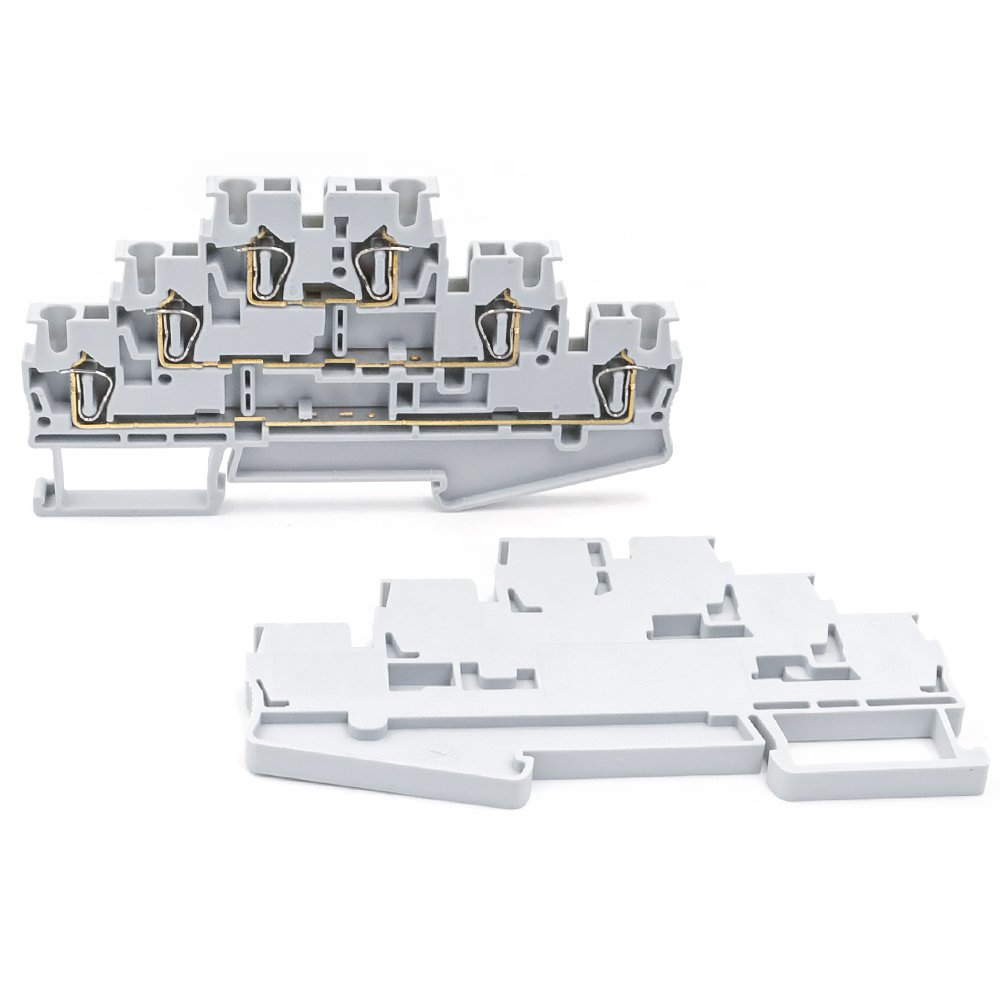

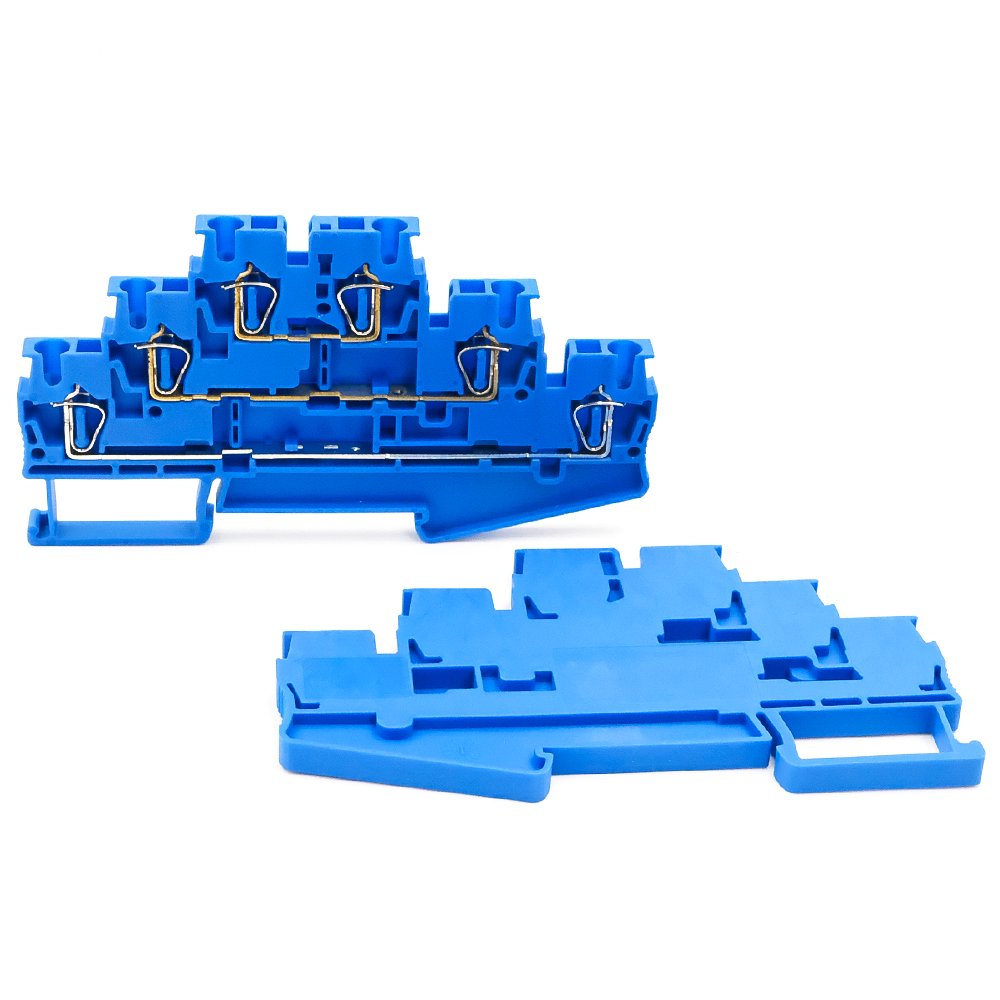

- End cover: D-ST 2.5-3L
- Plug-in bridges: FBS 2-5 / FBS 3-5 / FBS 4-5 / FBS 5-5 / FBS 10-5
- Marker strip: ZBFM 5
Request a Quote
Specify the colour, quantity and any end covers, bridges or markers required. Include your terminal layout if you need bridging at particular levels.

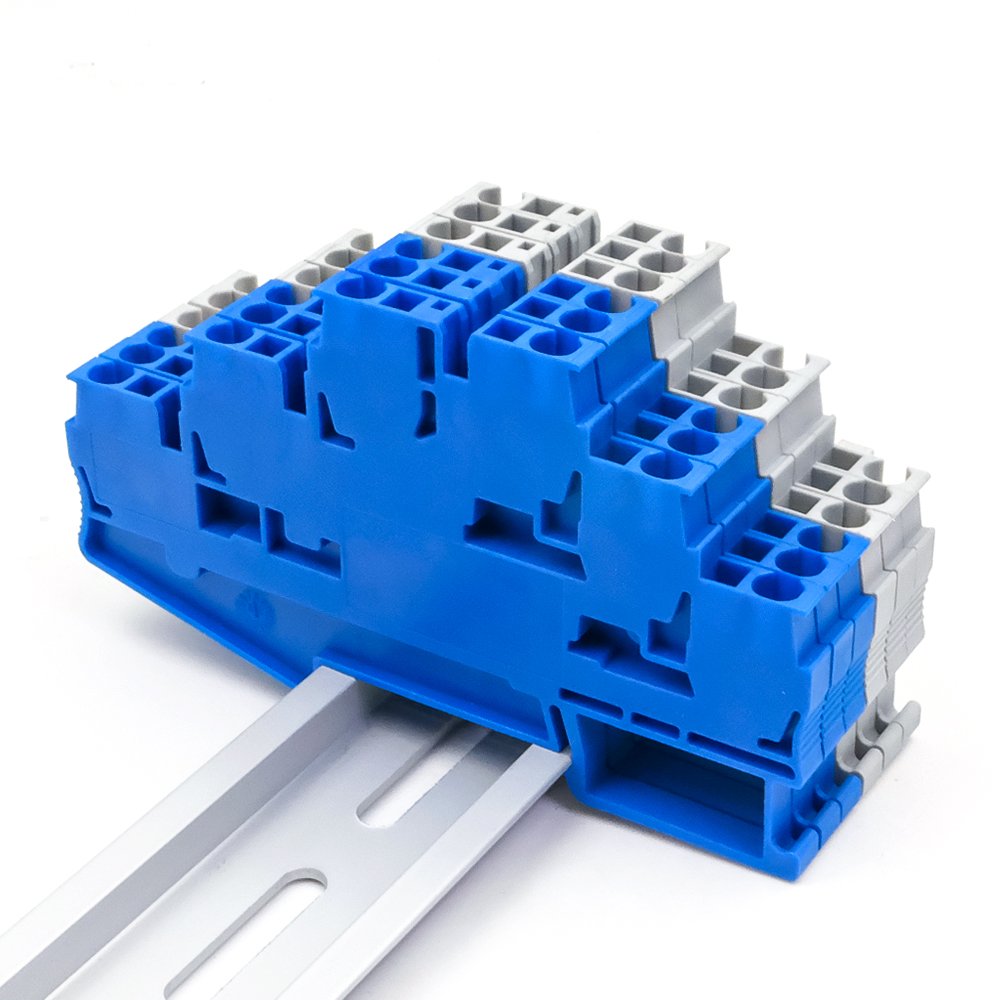

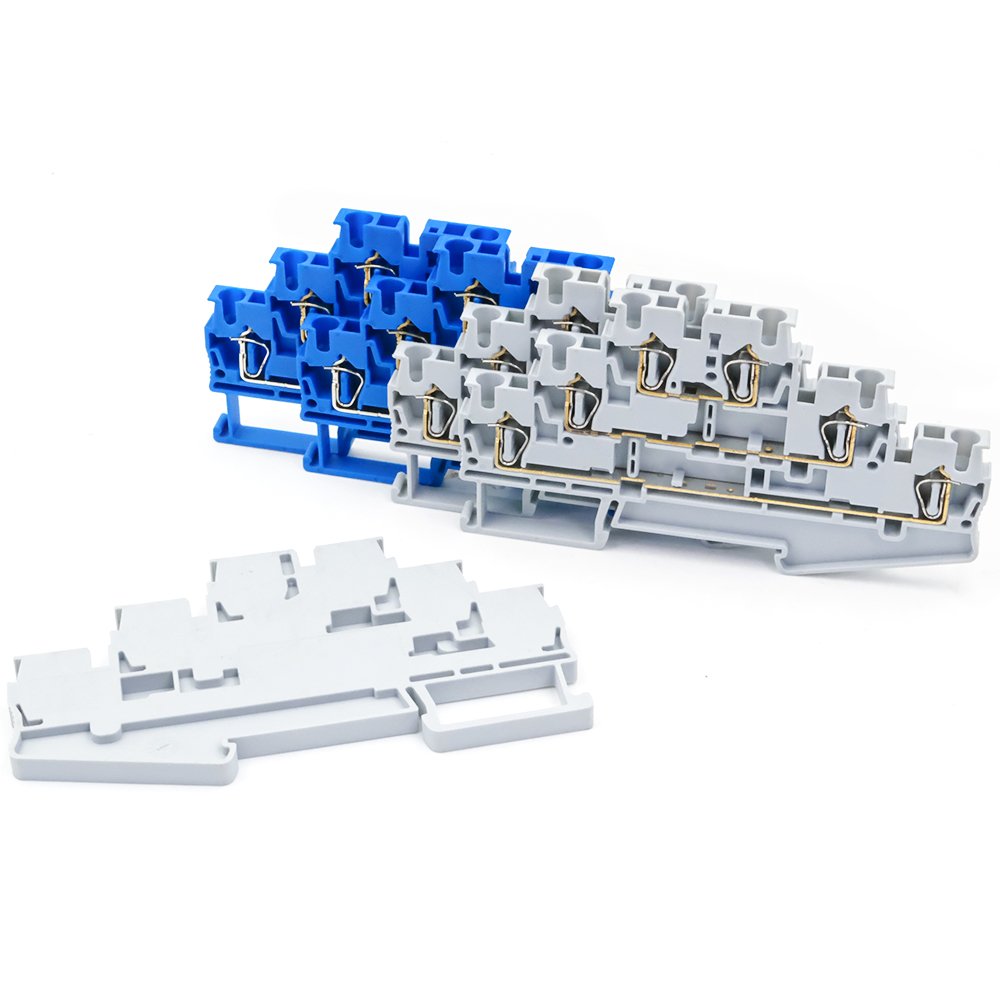

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
