Description

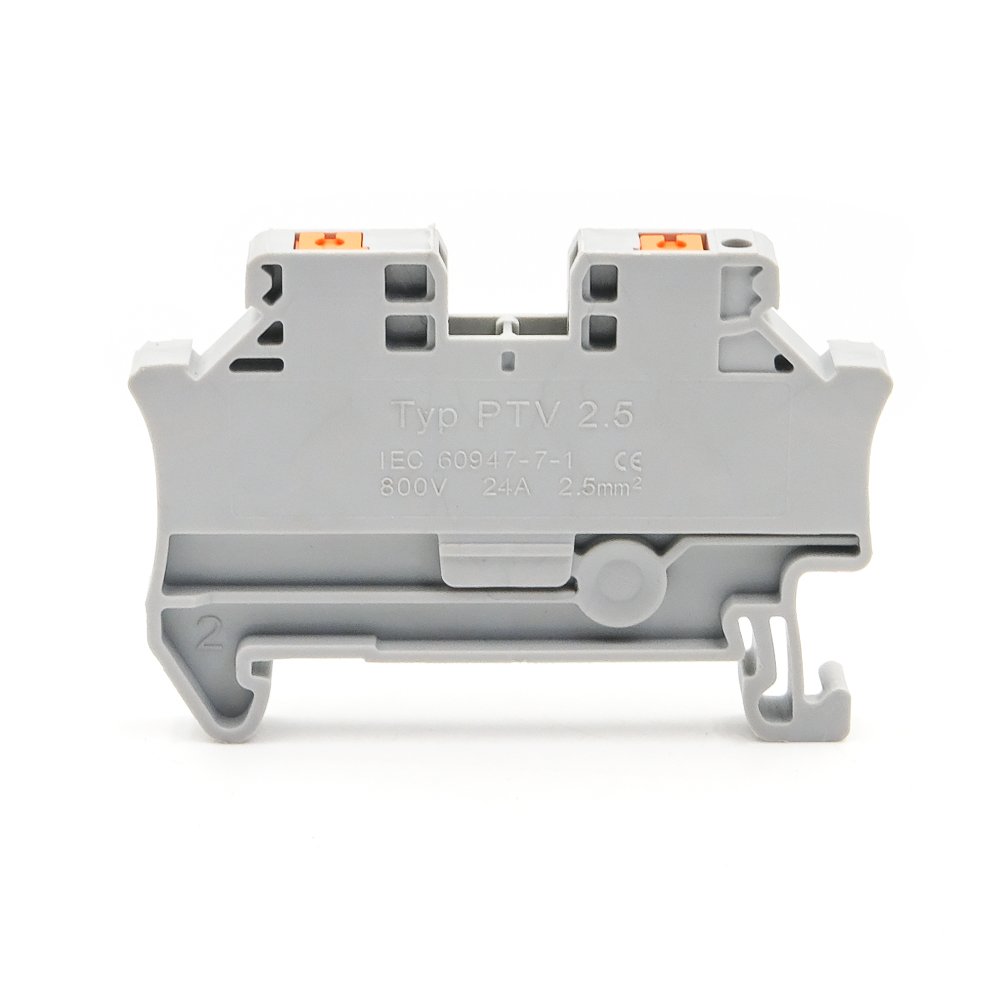

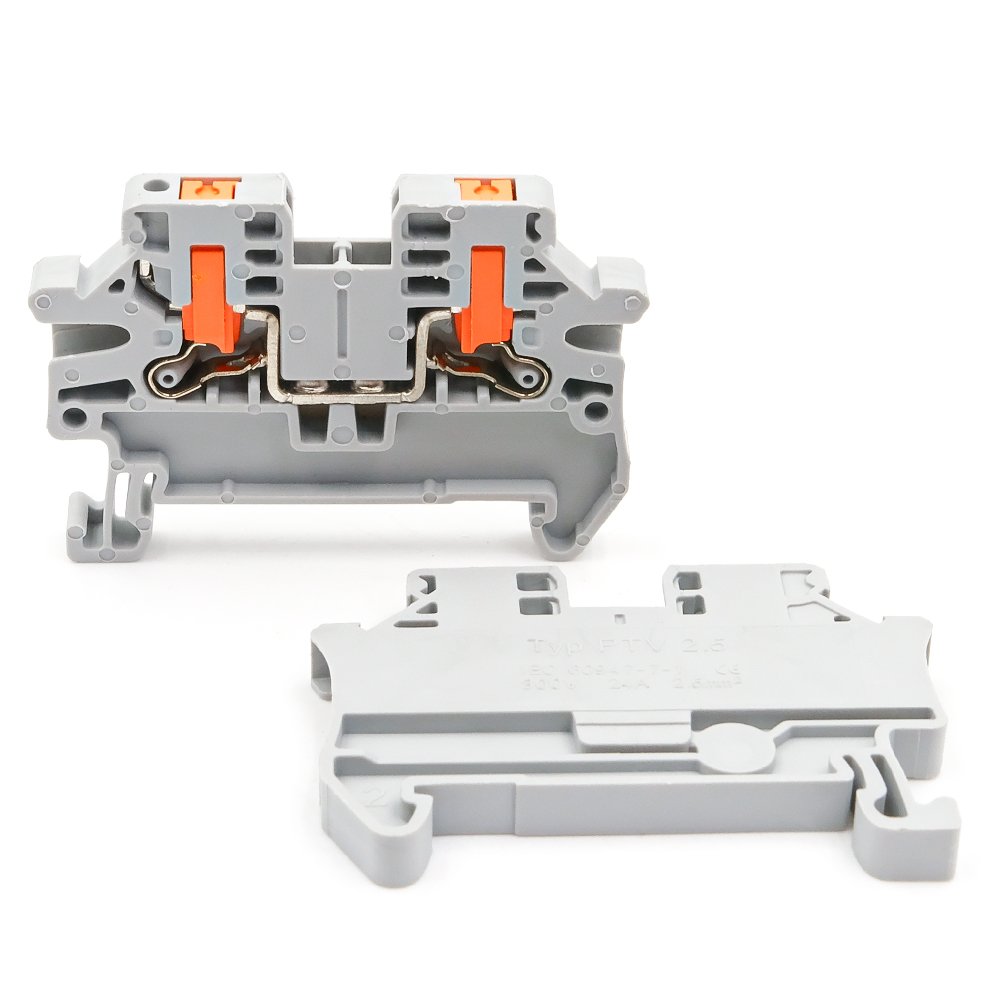

The PTV 2.5 uses side-entry push-in connections rather than the top-entry arrangement of the standard PT 2.5. The orange operating elements remain accessible from above.
Choose the PTV version when your wire routing calls for side entry. It has a 51 mm-long body, a 5.2 mm thickness and a dedicated D-PTV-2.5 end cover.
Specifications
| Model | PTV 2.5 |
|---|---|
| Terminal type | Side-entry terminal block |
| Connection | Push-in spring connection |
| Mounting | DIN rail |
| Rated voltage | 800 V |
| Rated current | 24 A |
| Solid conductor cross-section | 0.14–4 mm² |
| Flexible conductor cross-section | 0.14–2.5 mm² |
| Dimensions | Thickness 5.2 × Length 51 × Height 35.9 mm |
Matching Accessories
- End cover: D-PTV-2.5
- Plug-in bridges: FBS 2-5 / FBS 3-5 / FBS 4-5 / FBS 5-5 / FBS 10-5
- Marker strip: ZB5
Request a Quote
Specify the PTV side-entry version, colour, quantity and accessories. A photo of the existing wire routing will help us match a replacement.

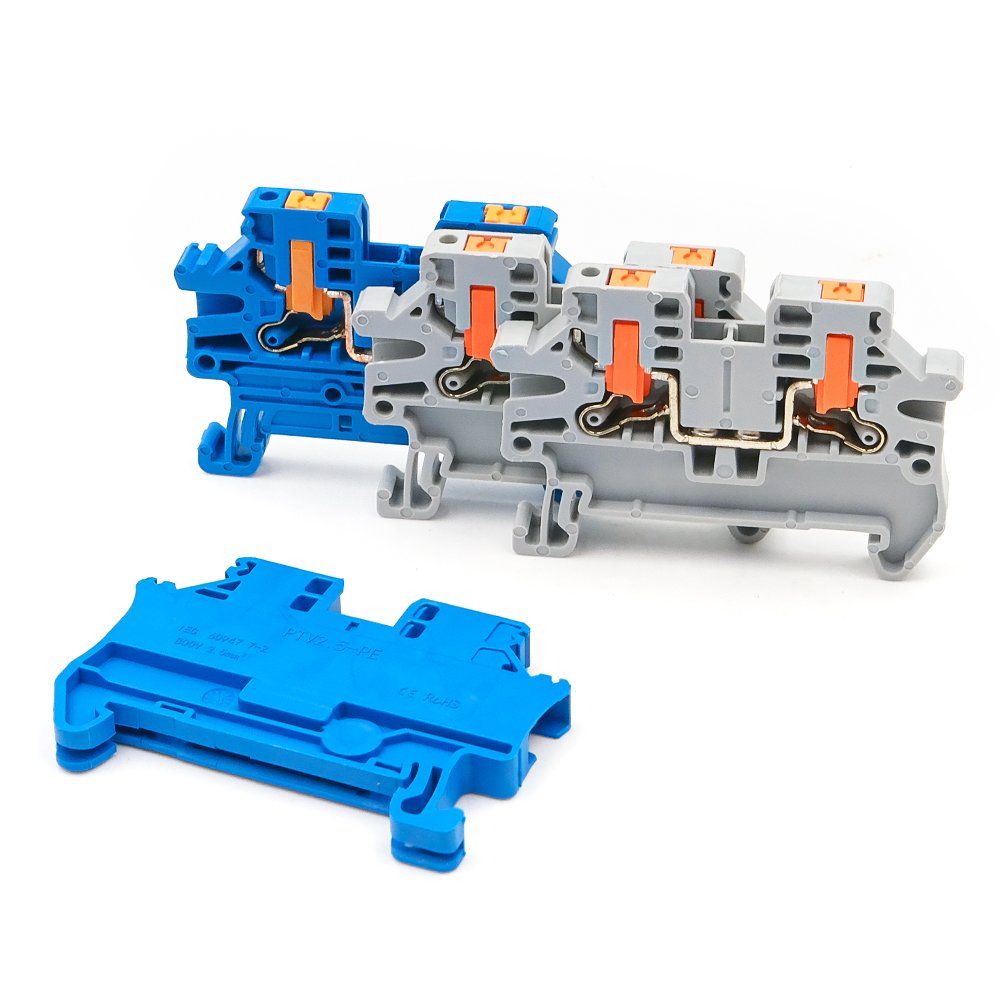

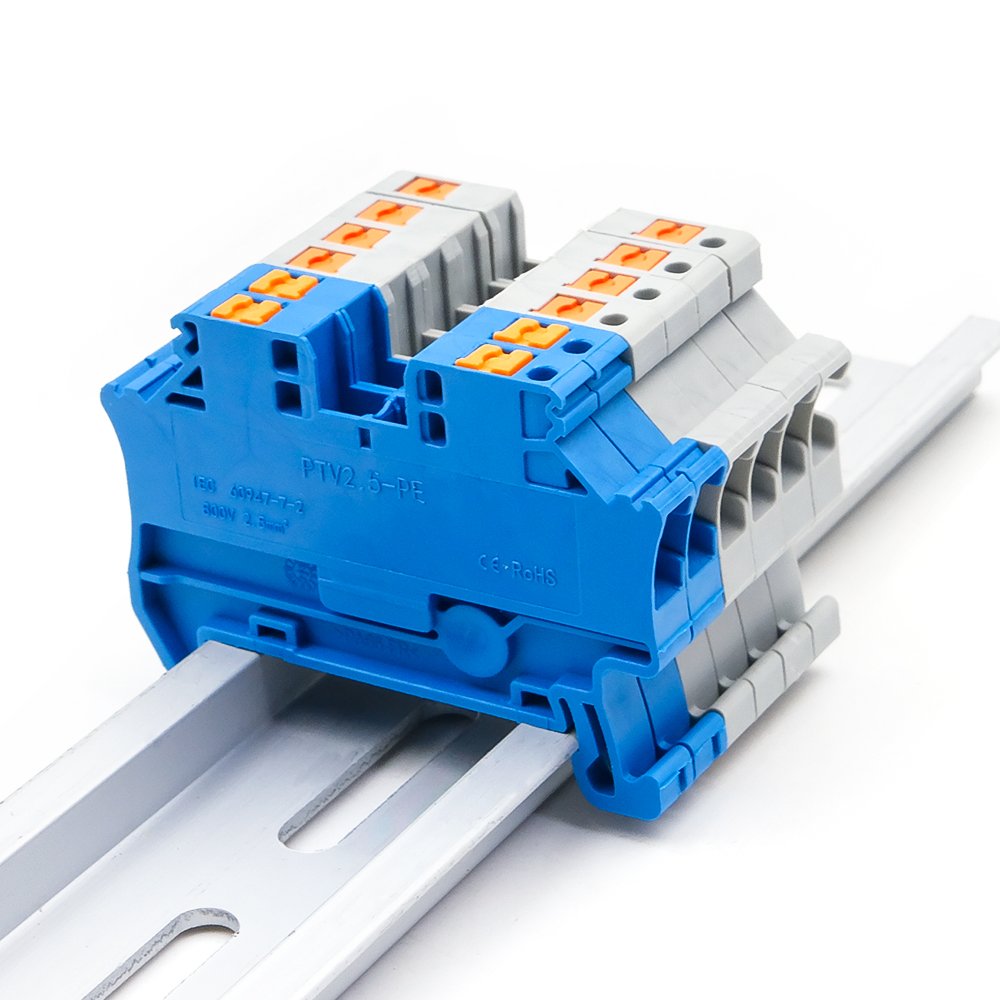

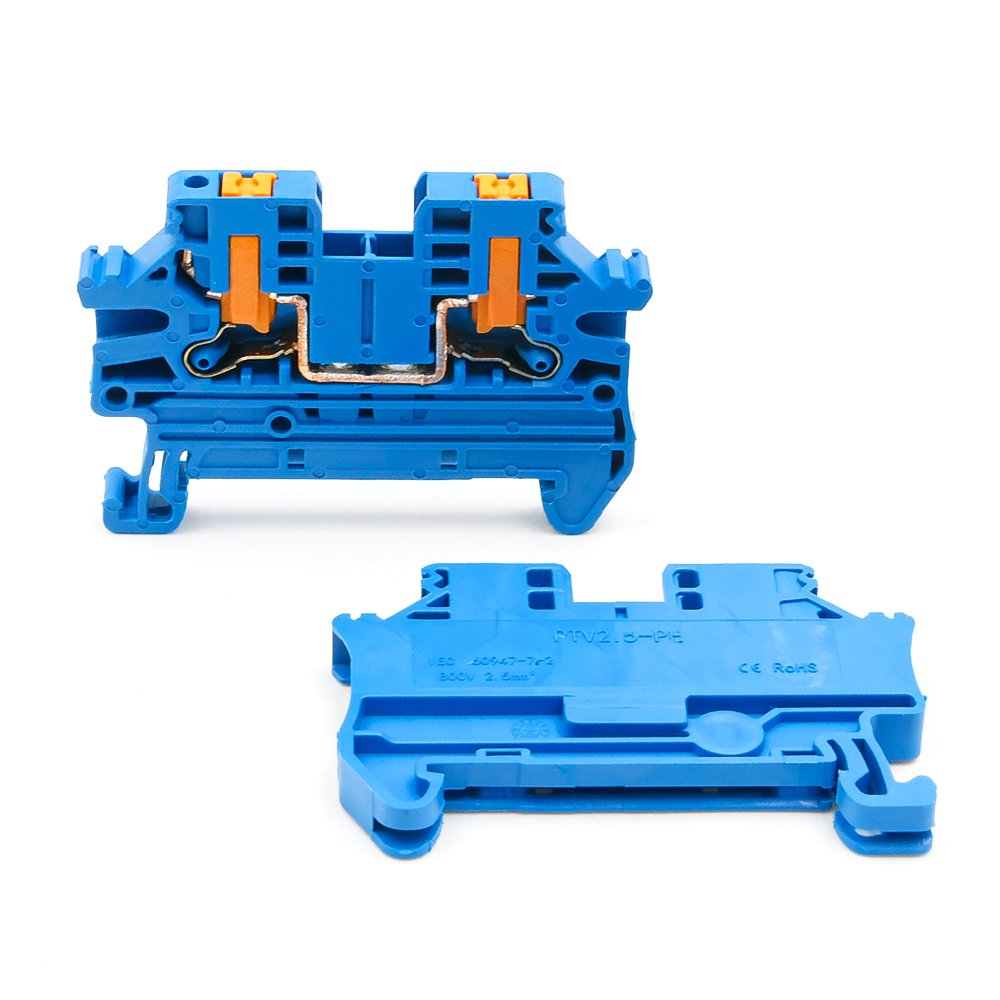

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
