Description

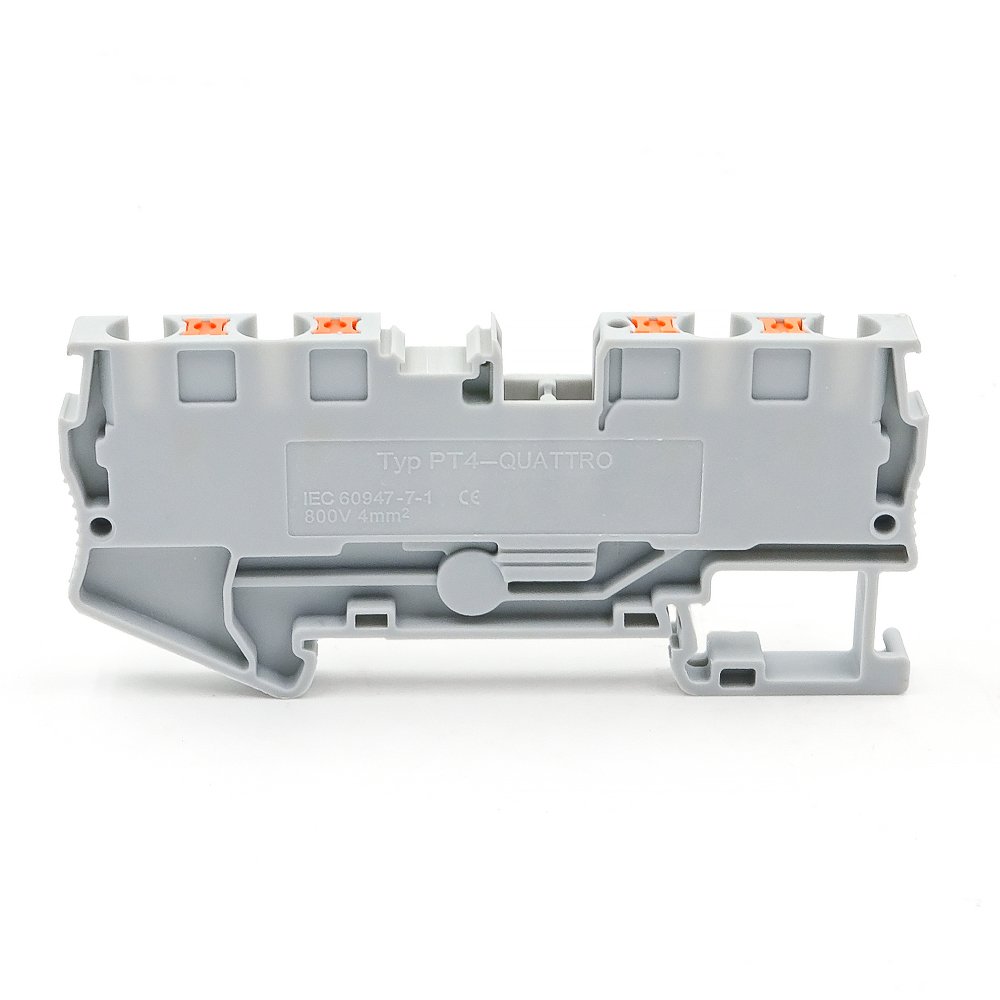

The PT 4-QUATTRO combines four connection points with a conductor range up to 6 mm² for solid wire and 4 mm² for flexible wire. Its two-plus-two entry layout is housed in a 77 mm-long body.
The listed current rating is 31 A. The QUATTRO, TWIN and standard PT 4 models have different ratings in the supplied data, so choose by the exact version.
Specifications
| Model | PT 4-QUATTRO |
|---|---|
| Terminal type | Four-connection terminal block |
| Connection | Push-in spring connection |
| Mounting | DIN rail |
| Rated voltage | 800 V |
| Rated current | 31 A |
| Solid conductor cross-section | 0.2–6 mm² |
| Flexible conductor cross-section | 0.25–4 mm² |
| Dimensions | Thickness 6.2 × Length 77 × Height 36.5 mm |
Matching Accessories

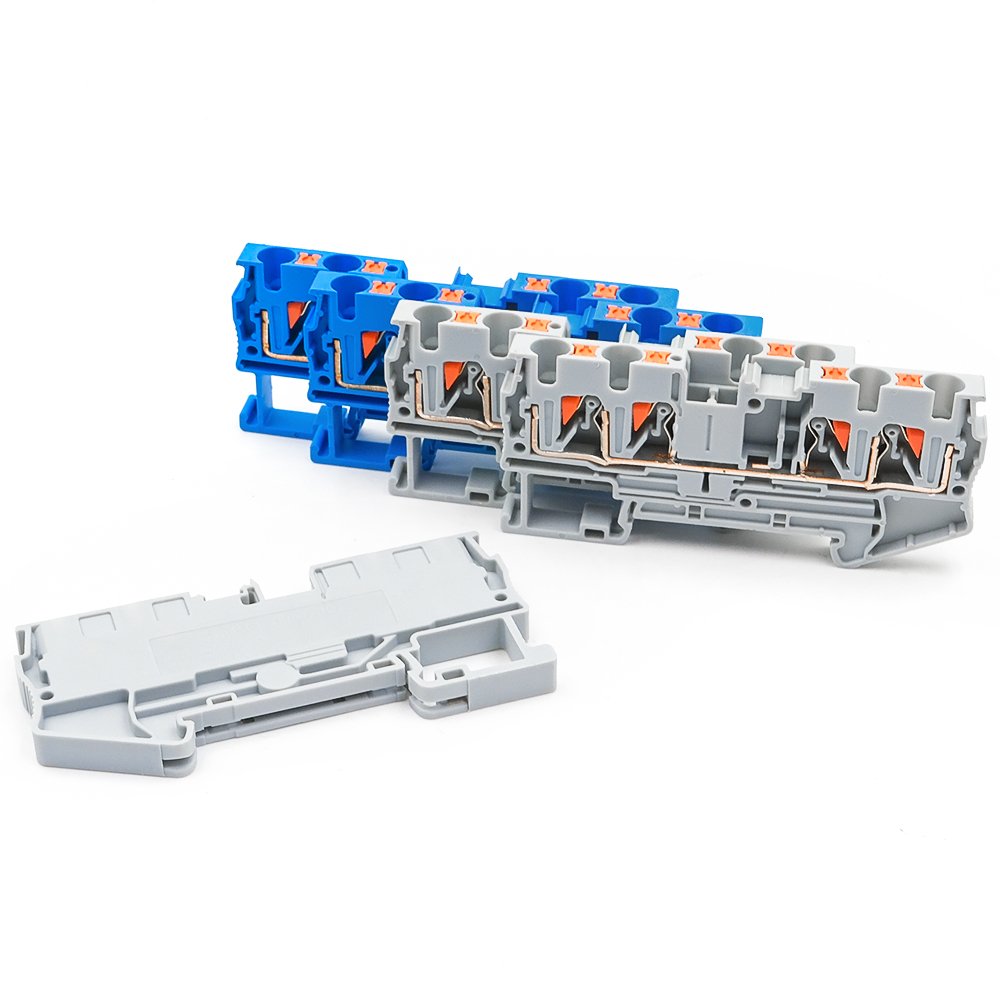

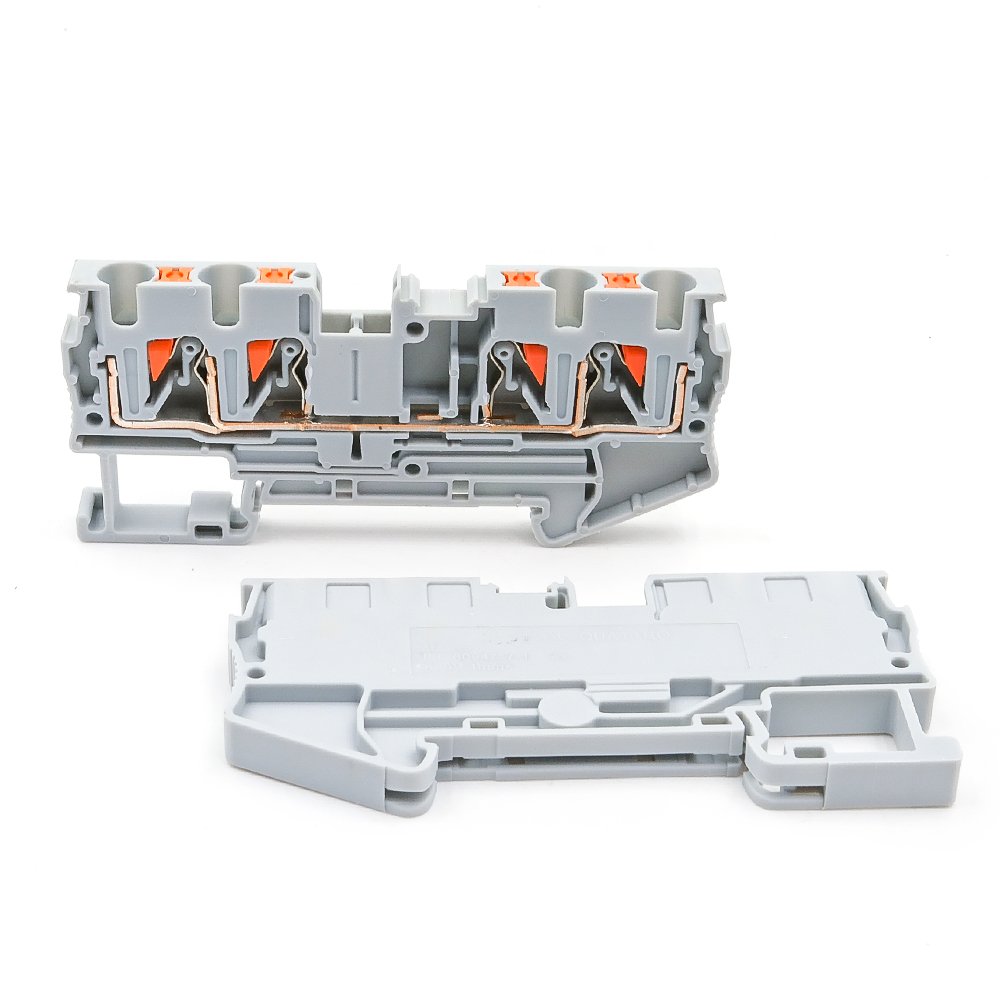

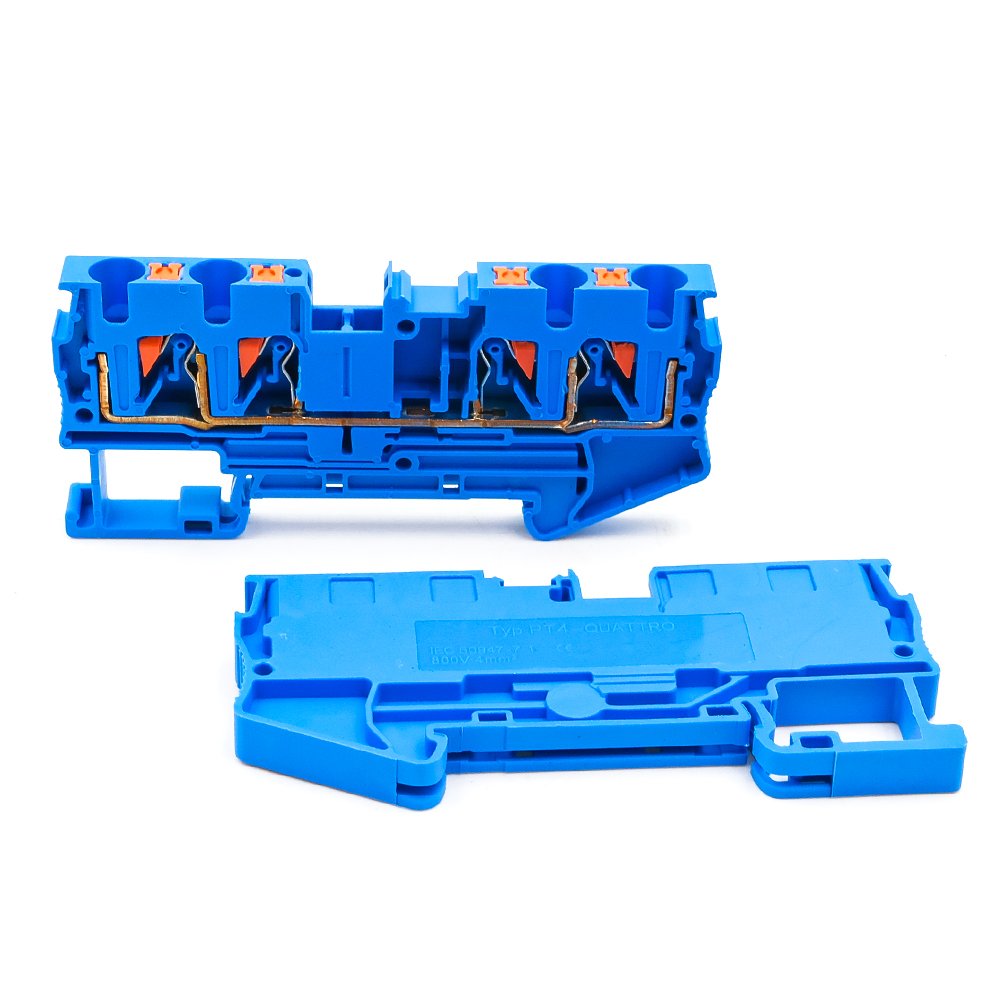

- End cover: D-PT4-QUATTRO
- Plug-in bridges: FBS 2-6 / FBS 3-6 / FBS 4-6 / FBS 5-6 / FBS 10-6
- Marker strip: ZB6
Request a Quote
Send the colour, quantity and any accessories required. For TWIN or QUATTRO orders, please quote the full model name so the connection layout is clear.

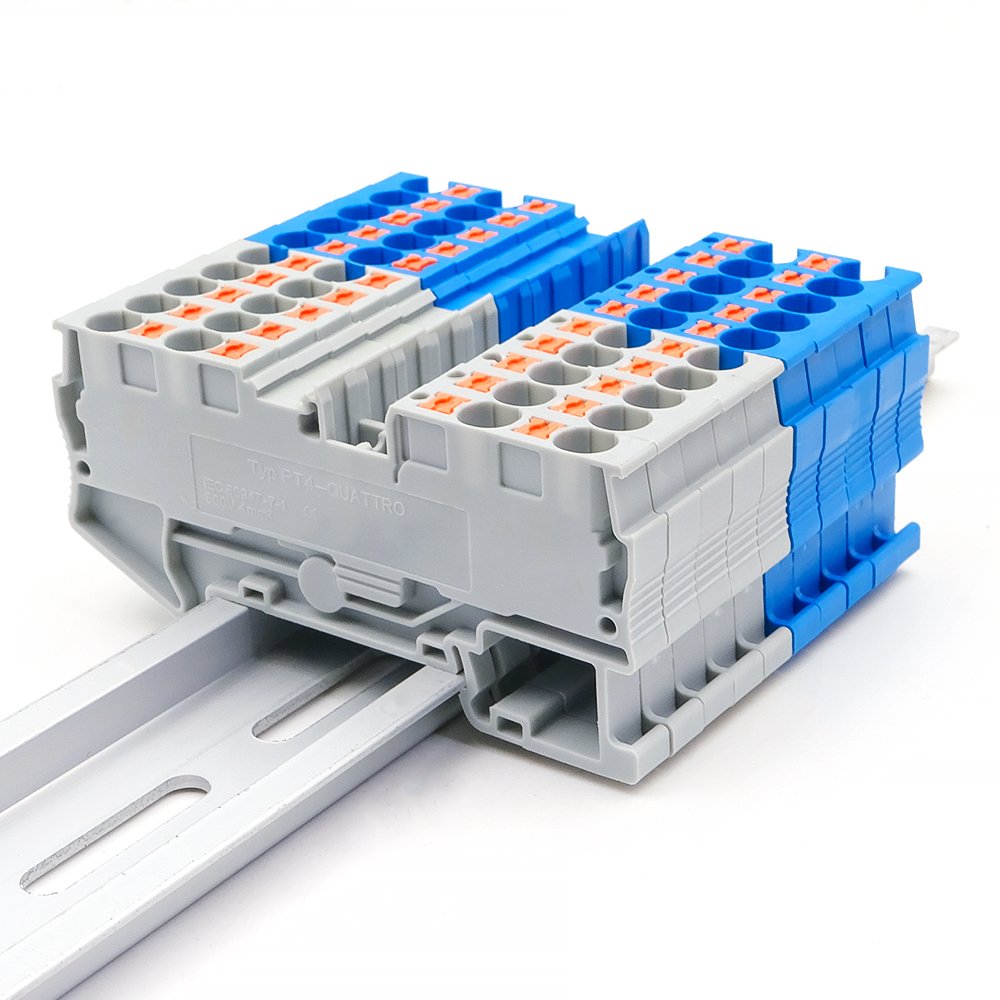

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
