Description
The PT 2.5 has two push-in connection points in a 48.5 mm-long body. It accepts solid conductors up to 4 mm² and flexible conductors up to 2.5 mm².

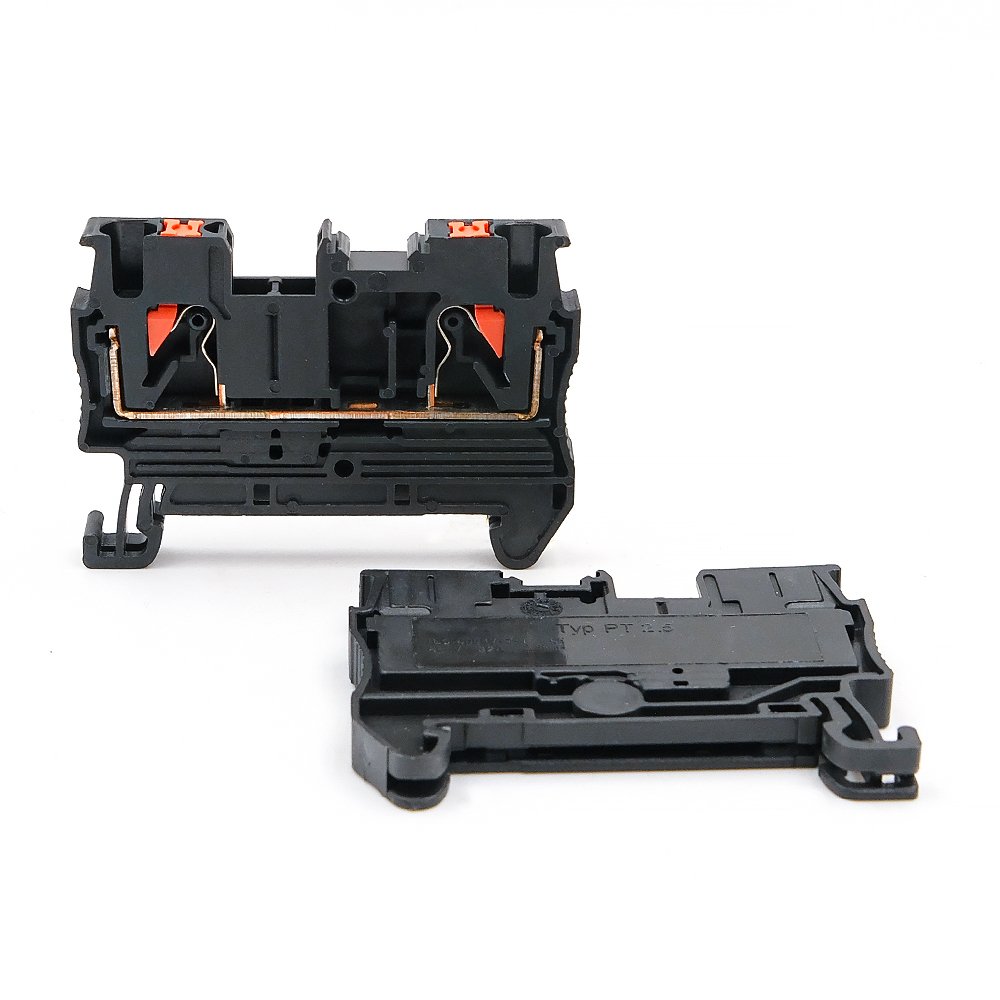

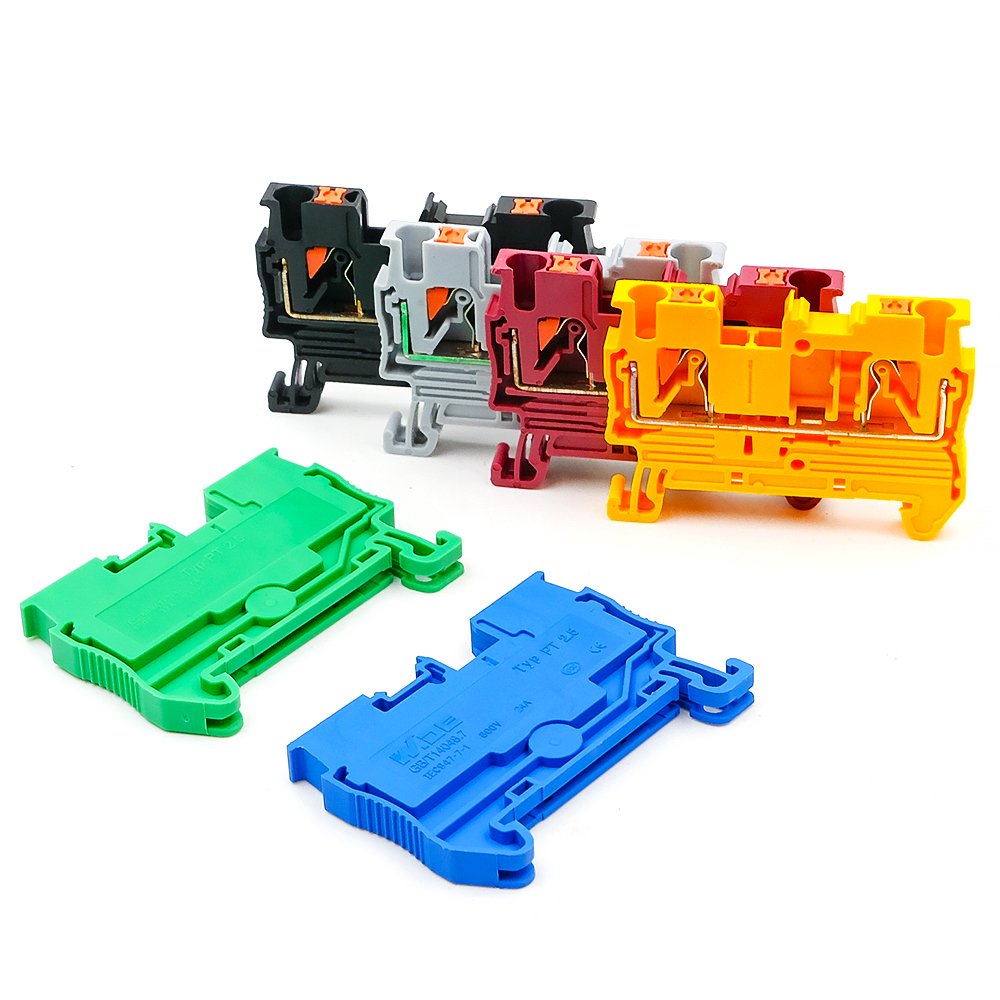

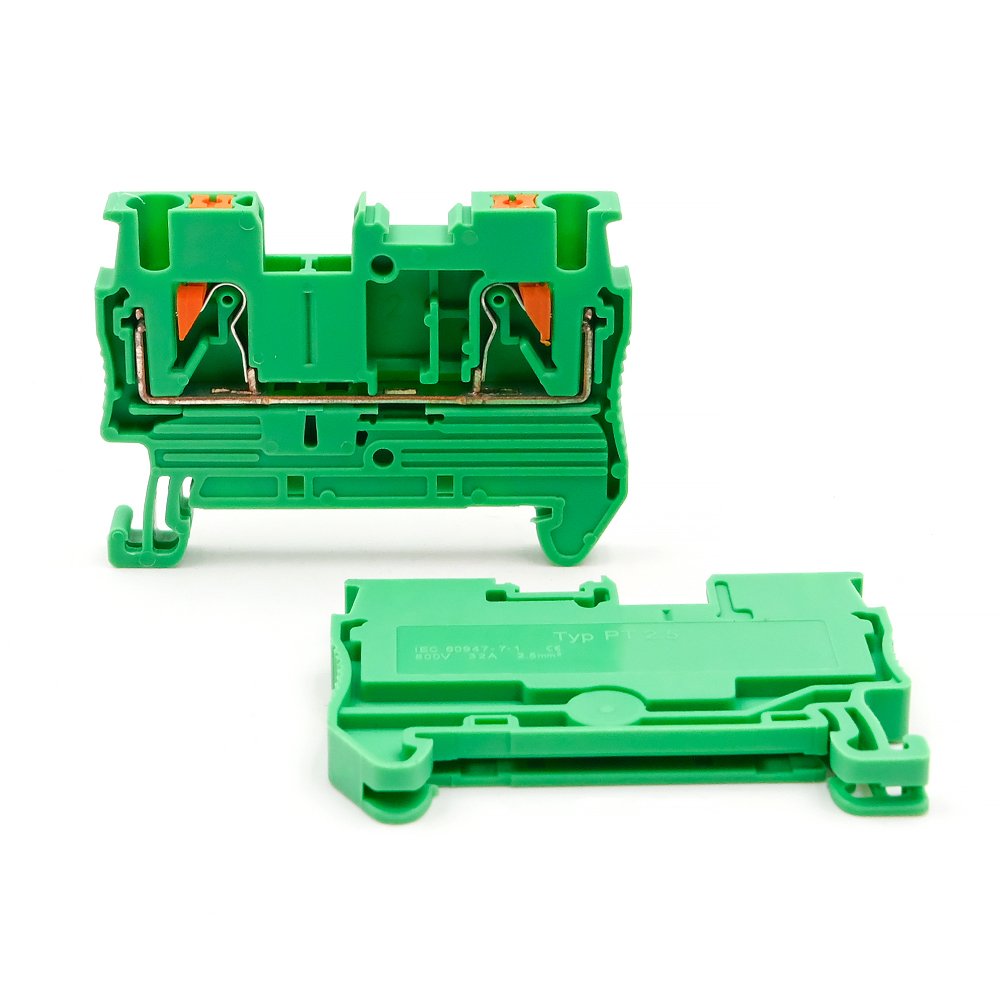

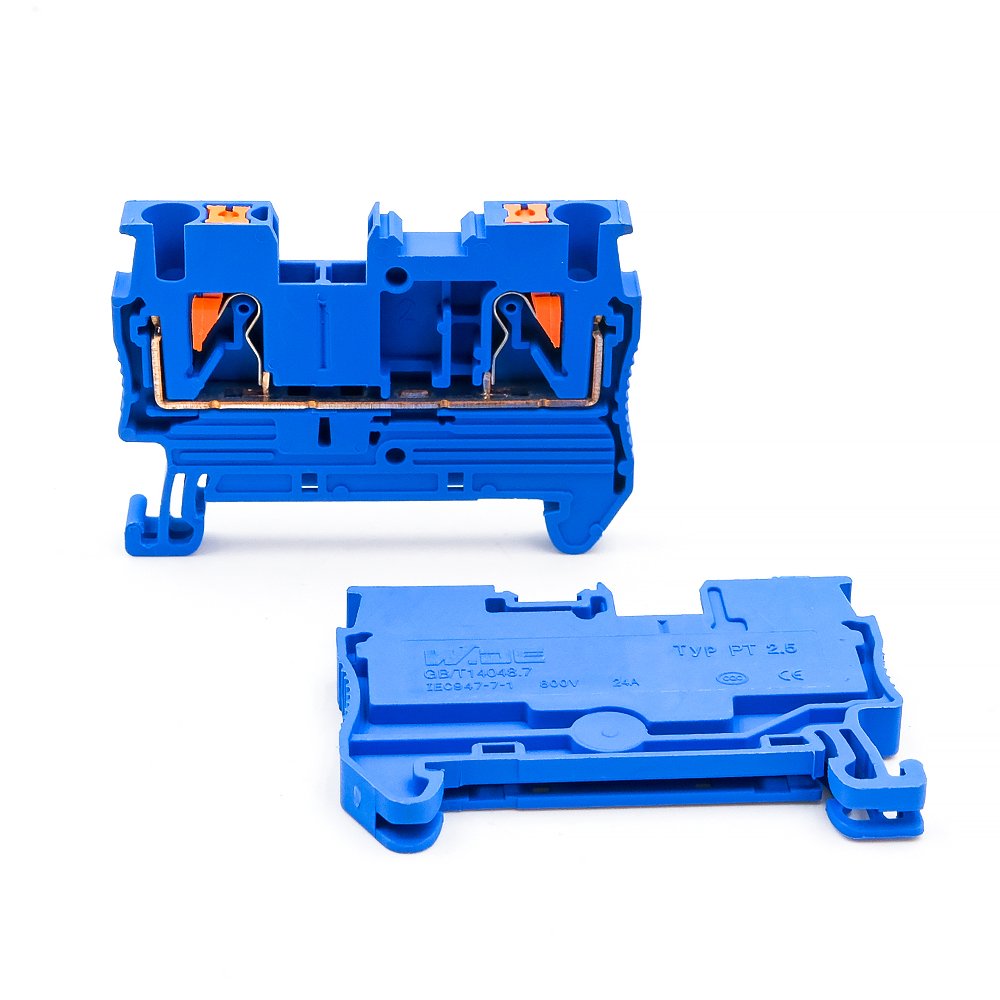

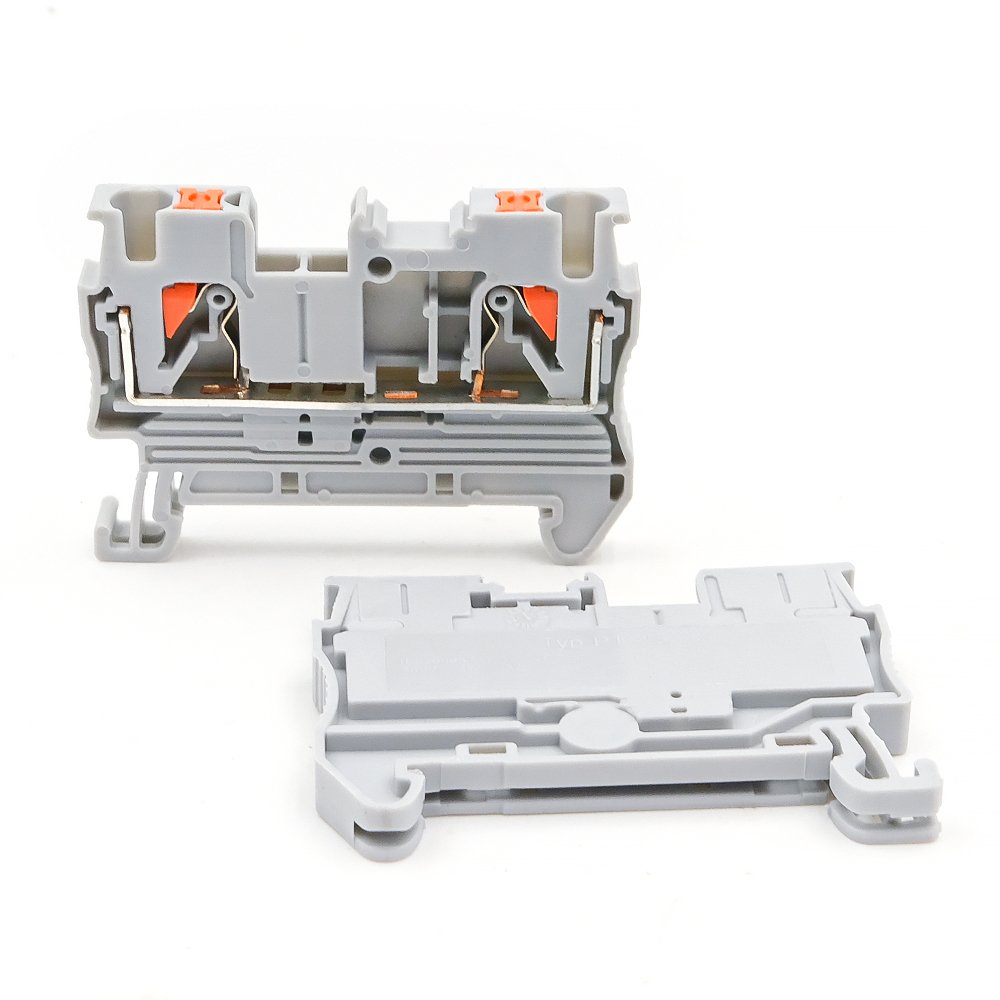

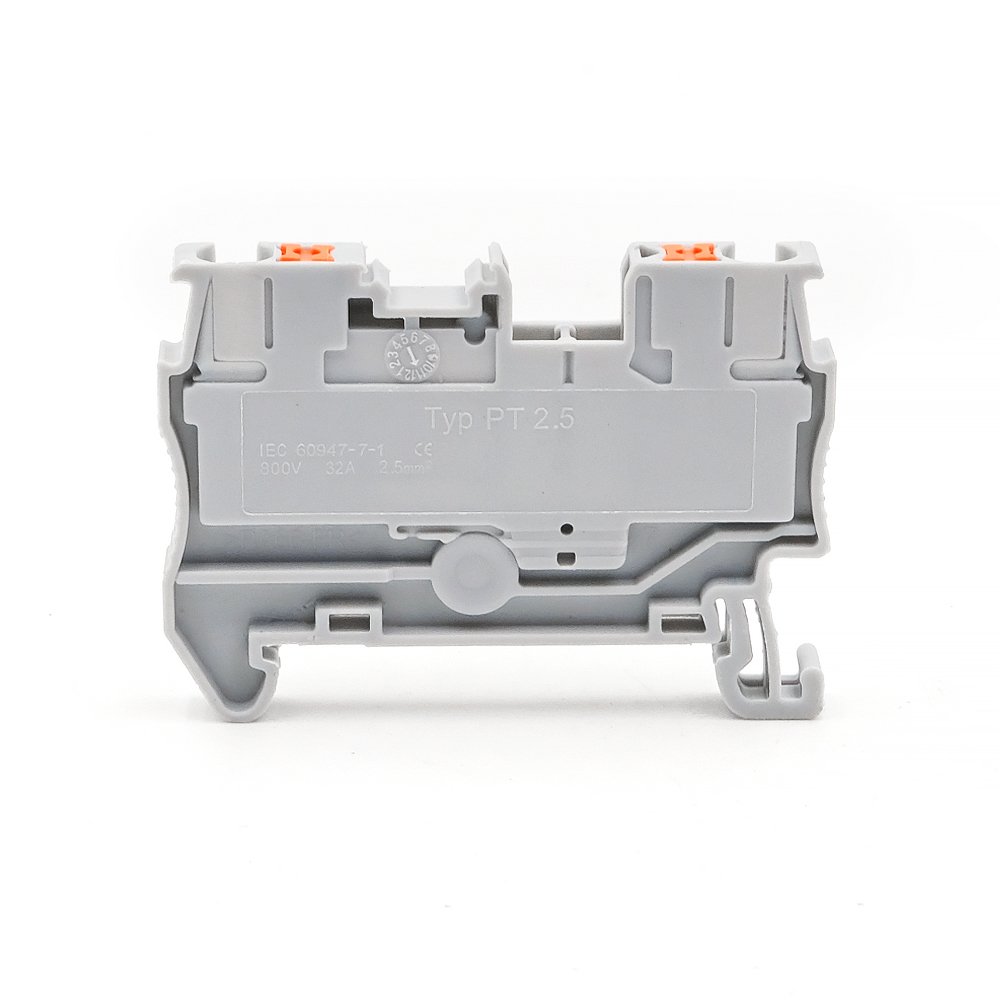

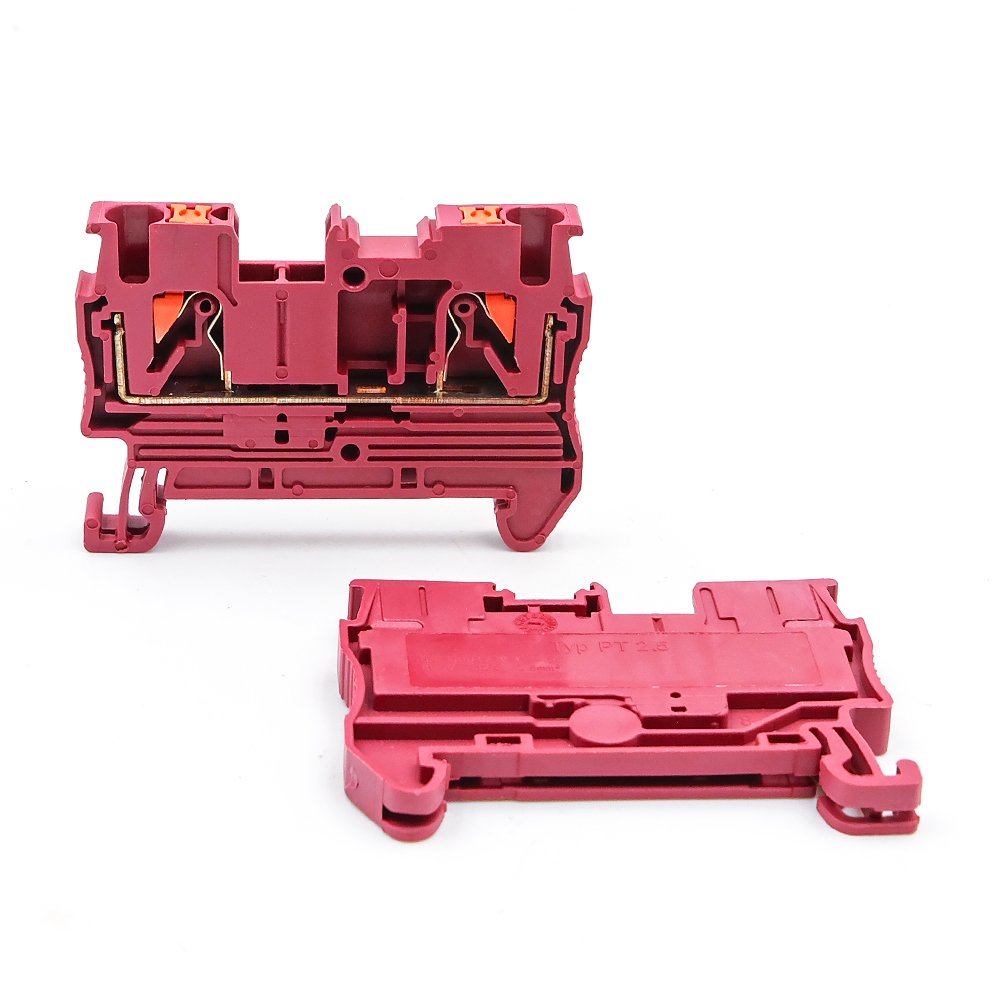

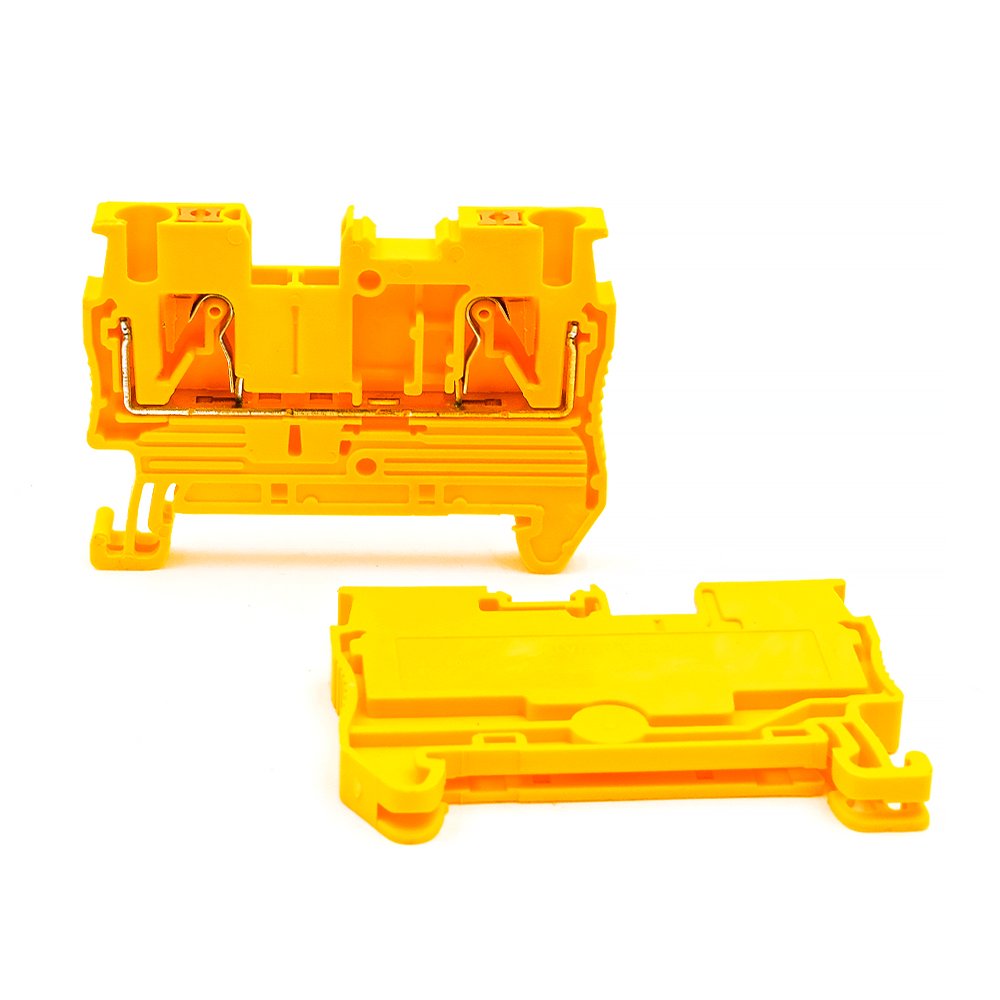

The photos show several housing colours for identifying different terminal positions. Specify the colour as well as the model when requesting a quote.
Specifications
| Model | PT 2.5 |
|---|---|
| Terminal type | Feed-through terminal block |
| Connection | Push-in spring connection |
| Mounting | DIN rail |
| Rated voltage | 800 V |
| Rated current | 31 A |
| Solid conductor cross-section | 0.2–4 mm² |
| Flexible conductor cross-section | 0.2–2.5 mm² |
| Dimensions | Thickness 5 × Length 48.5 × Height 35.5 mm |
Matching Accessories
- End cover: D-PT-2.5
- Plug-in bridges: FBS 2-5 / FBS 3-5 / FBS 4-5 / FBS 5-5 / FBS 10-5
- Marker strip: ZB5
Request a Quote
Send the colour, quantity and any end covers, bridges or markers required. For replacement orders, a photo of the existing terminal will help us check the match.

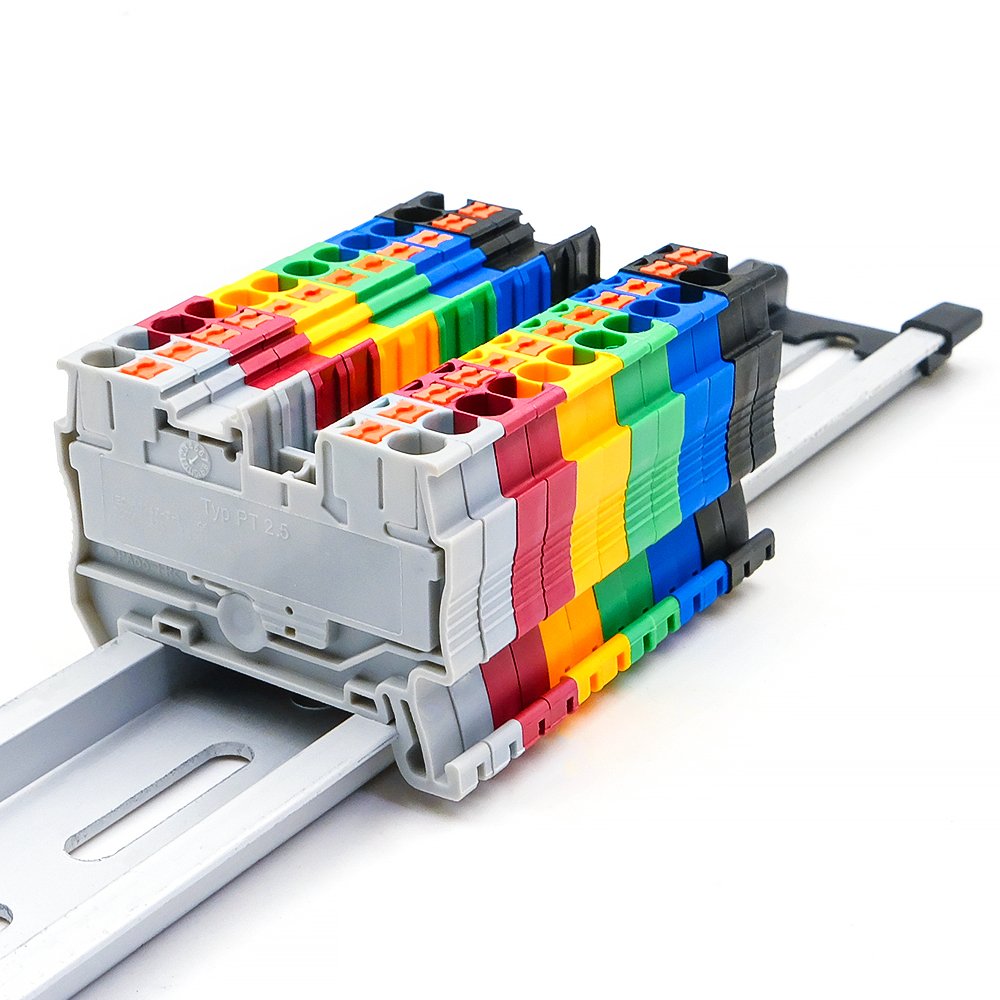

Photos include assembly examples. Please specify any rails or other accessories you need supplied.
