Description

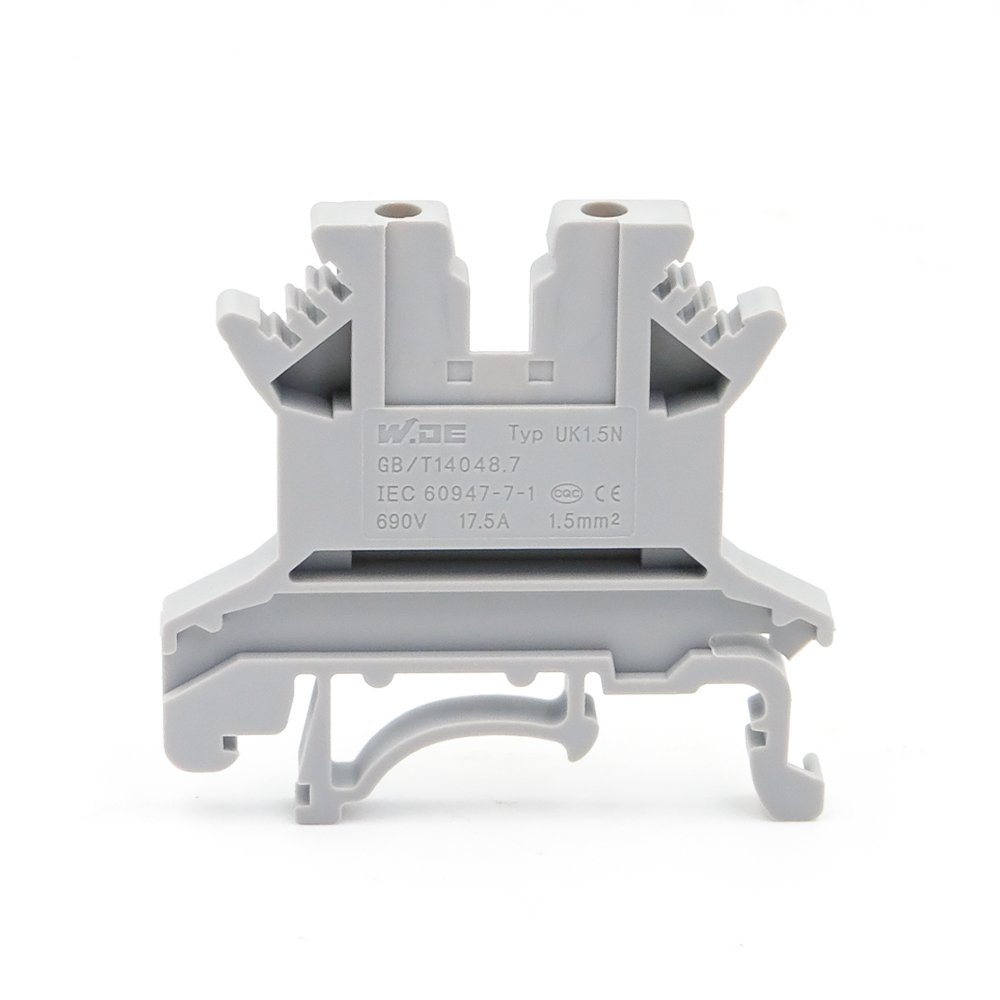

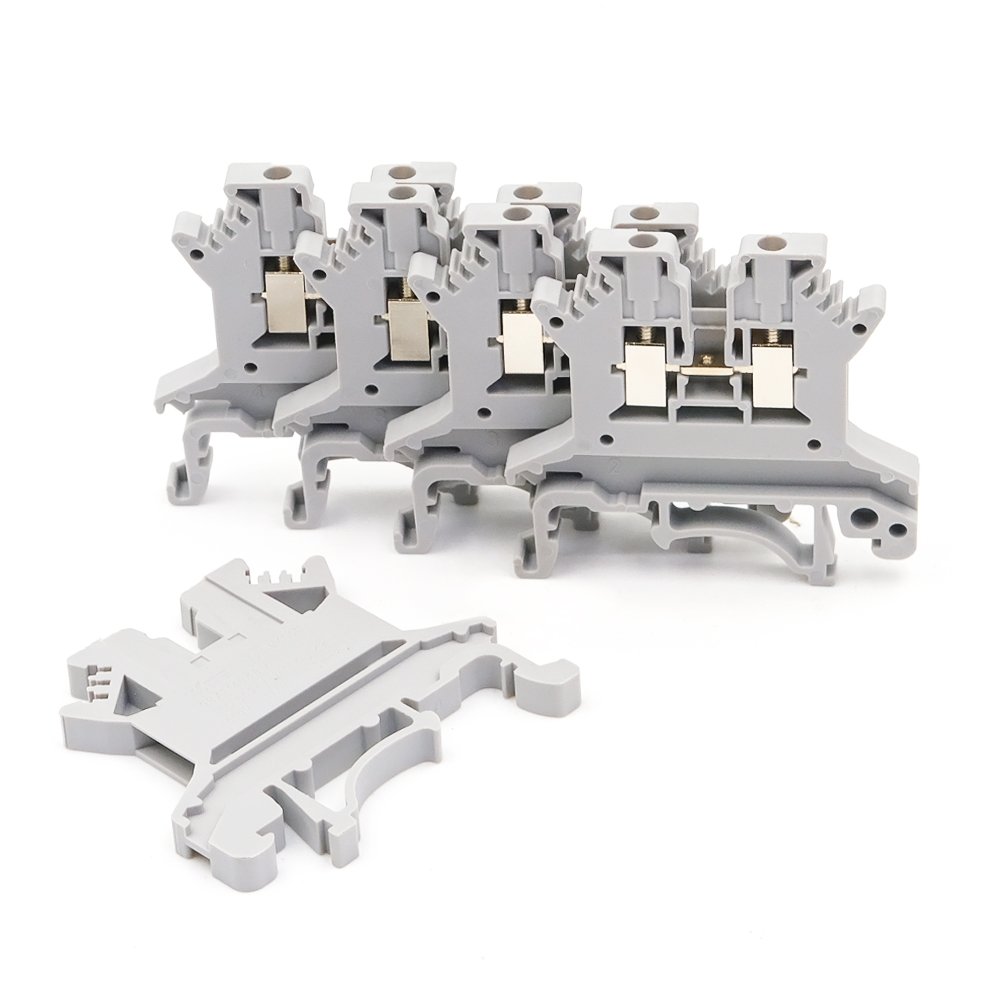

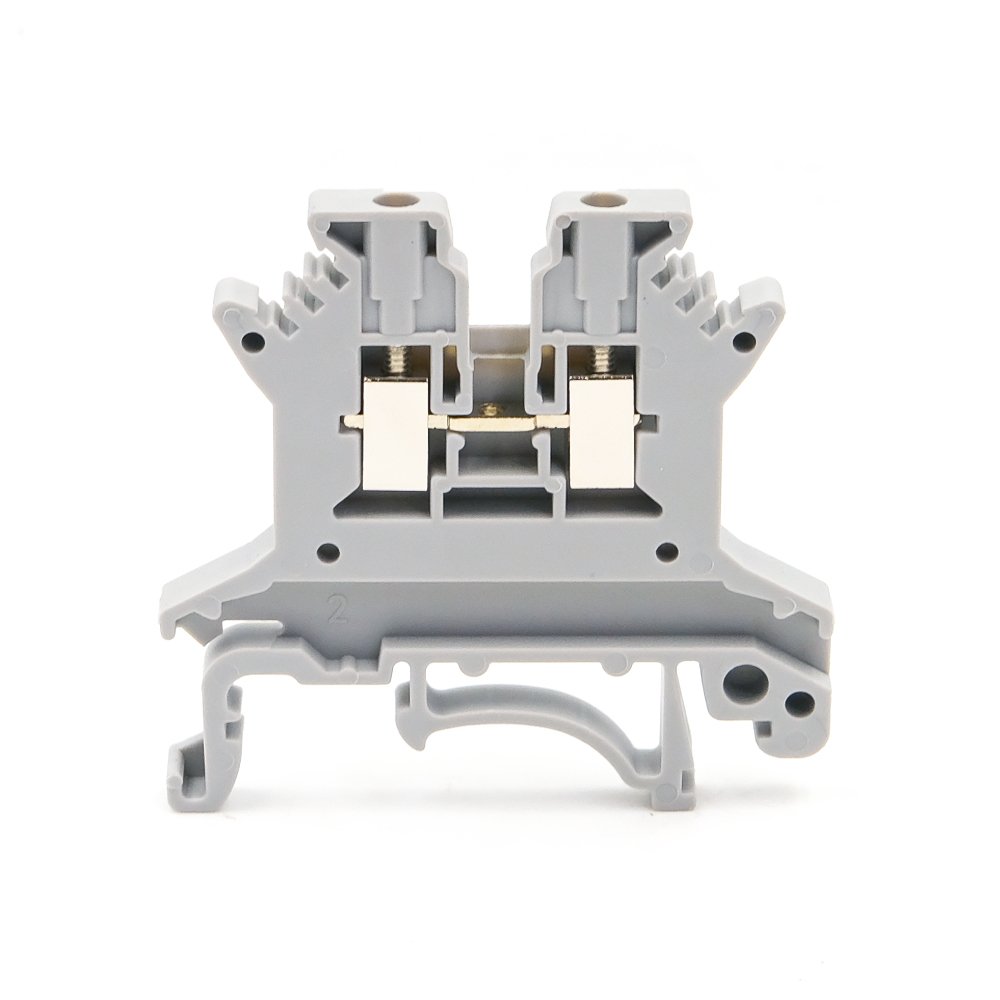

The UK 1.5N is a compact screw connection terminal block with a thickness of 4.2 mm. It accepts solid and flexible conductors from 0.14 to 1.5 mm², making it an option for small-wire connections where terminal rail space is limited.
Specifications
| Model | UK 1.5N |
|---|---|
| Connection | Screw connection |
| Mounting | DIN rail |
| Rated voltage | 690 V |
| Rated current | 17.5 A |
| Solid conductor cross-section | 0.14–1.5 mm² |
| Flexible conductor cross-section | 0.14–1.5 mm² |
| Dimensions | Thickness 4.2 × Length 42.5 × Height 41 mm |
| Colour shown | Grey |
Matching Accessories
- End cover: D-UK 1.5
- Fixed bridge: FBI 10-4
- Insertion bridge: EB 10-4
- Marker strip: ZB4
This model uses the accessories listed above. Please check the bridge and marker sizes when ordering it alongside larger UK terminal blocks.
Ordering

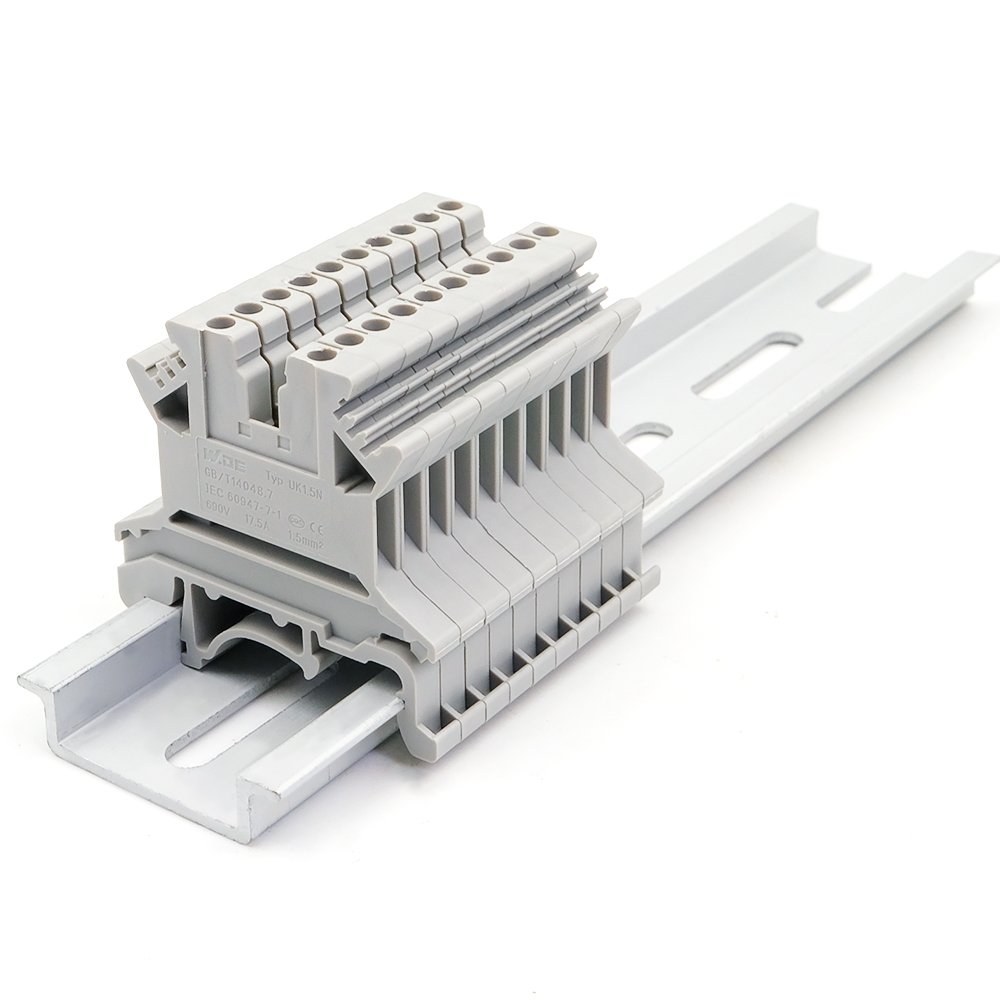

Send us the quantity and any accessories required for a quote. Rail assemblies in the photos are examples; please specify which items you need supplied.
