PT2.5-3L Three-Level Push-in DIN Rail Terminal Block

PT2.5-3L three-level push-in DIN rail terminal block, available in gray and blue. Rated at 500 V and 24 A, with a width of 5.2 mm. Contact us for pricing and matching accessories.

Request a Quote

Category: DIN Rail Terminal Blocks

Description
Reviews (0)

Description

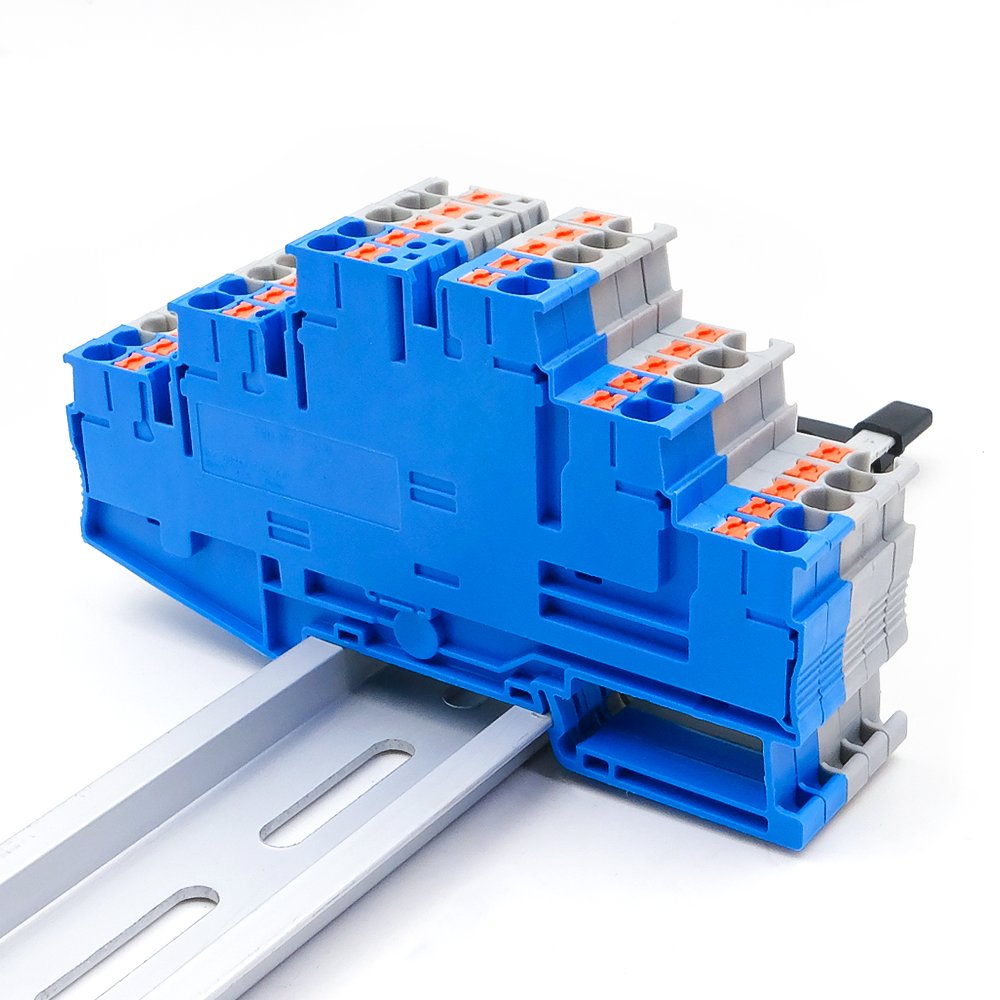

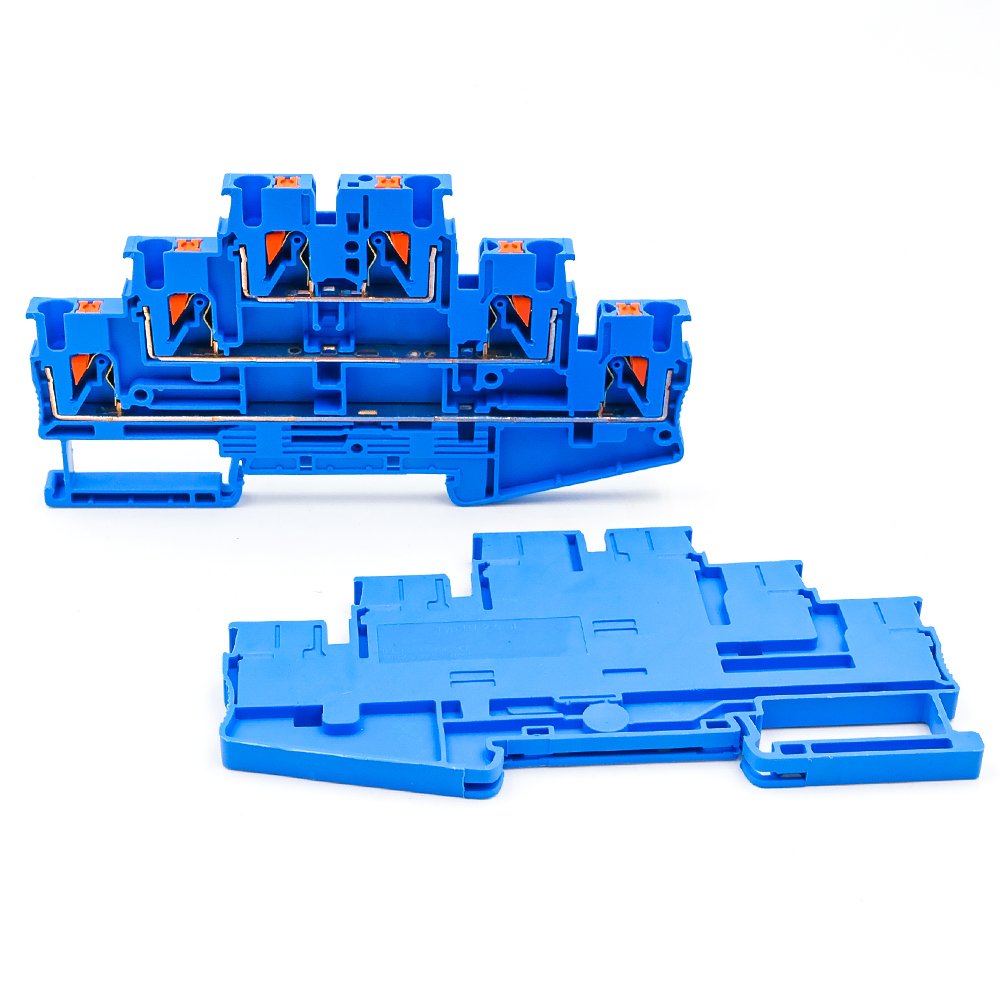

The PT2.5-3L is a three-level DIN rail terminal block with push-in connections for wiring in electrical panels and control cabinets. Its stacked design provides three connection levels in a compact footprint. Available in gray and blue.

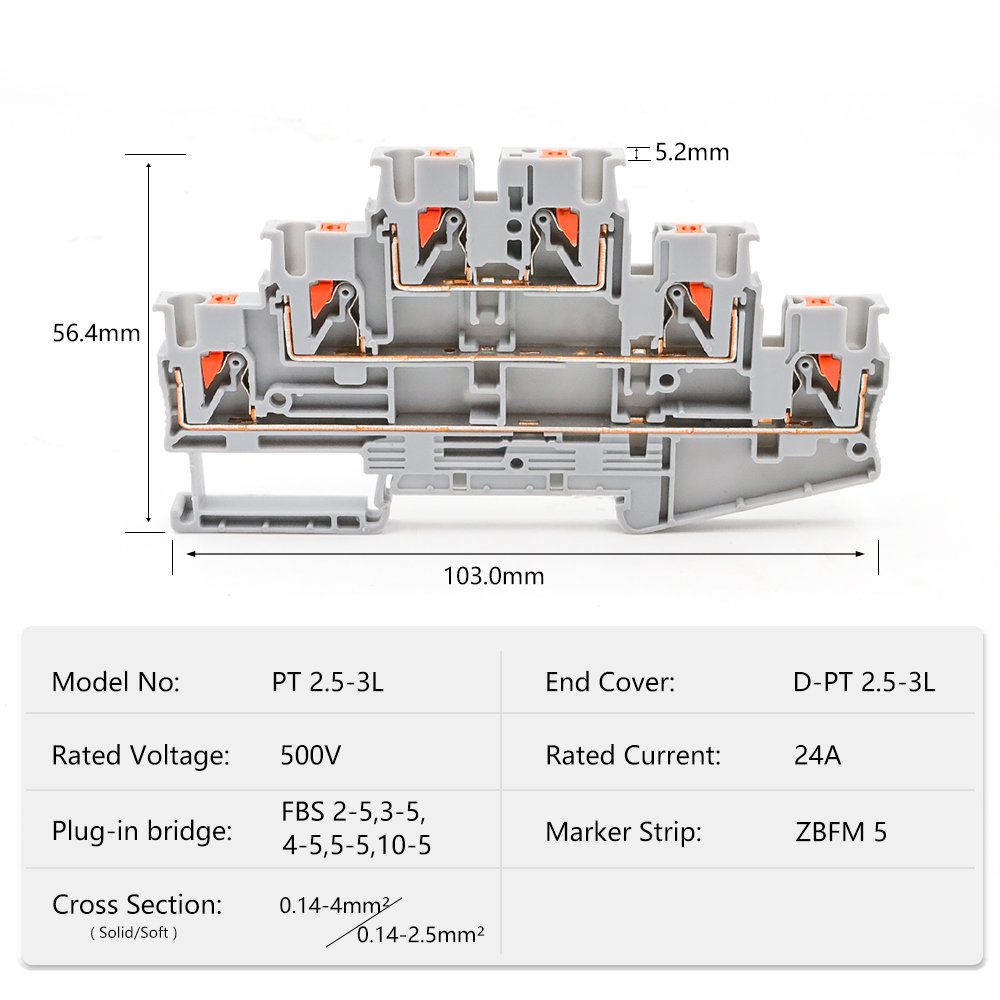

Technical Specifications

Model	PT2.5-3L
Connection type	Push-in
Number of levels	3
Rated voltage	500 V
Rated current	24 A
Width	5.2 mm
Length	103 mm
Height	56.4 mm
Available colors	Gray / Blue

Matching Accessories

End cover: D-PT2.5-3L
Plug-in bridges: FBS 2-5, FBS 3-5, FBS 4-5, FBS 5-5 and FBS 10-5
Marker strip: ZBFM 5

Please specify the required color, quantity and accessories when requesting a quotation. Accessories shown in the images should be confirmed separately.
